Gold mining grinding machine from 20years professional manufacturer

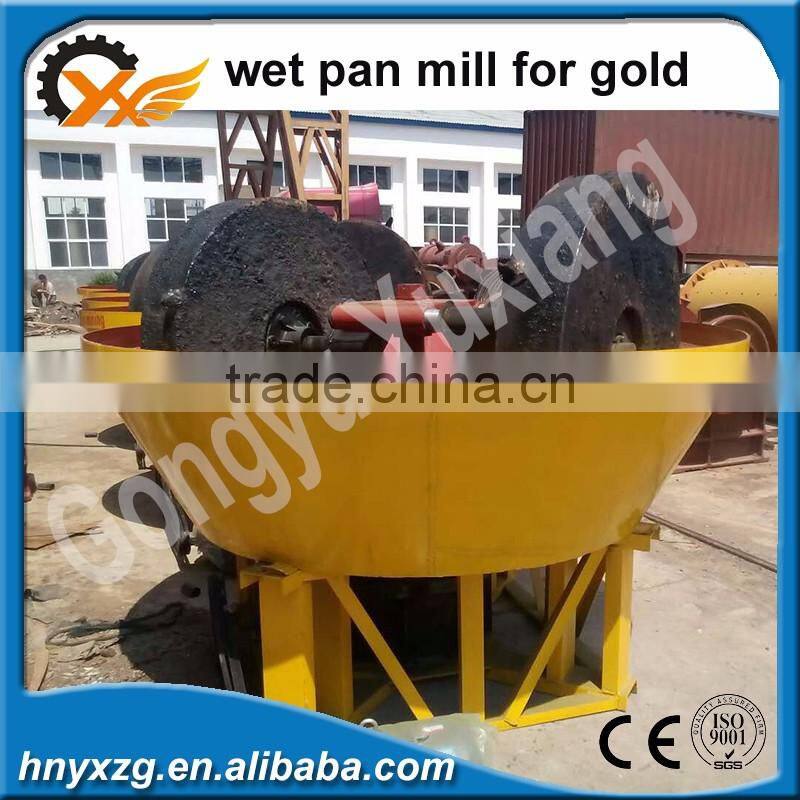

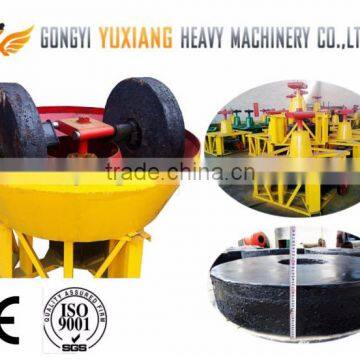

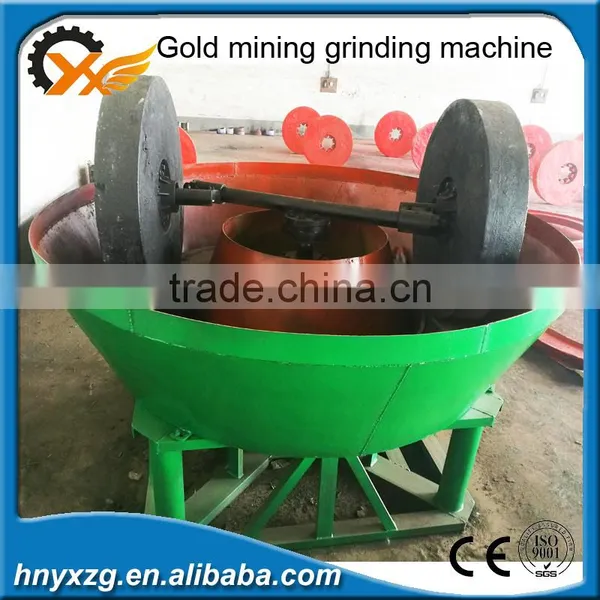

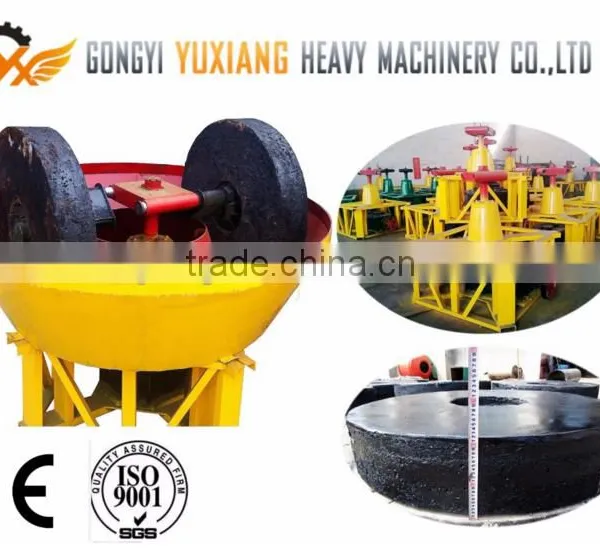

Gold mining grinding machine from 20years professional manufacturer is the best equipment to replace ball mill. because it have small investment, high output, low production cost, good efficiency and easy installation. And the gold mining grinding machine is the ideal beneficiation equipment for small and medium-sized enterprise.Gold mining grinding machine is mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. The Gold mining grinding machine is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore. Above all, 1200a type is the most popular and widely use.
Gold mining grinding machine from 20years professional manufacturer:
Model |
Specification(mm) |
Input size |
Rotate speed(r/min) |
Power(kw) |
Weight(t) |
1600 |
1600*400*200*500±20 |
|
20-22 |
30 |
14.5 |
1500 |
1500*350*200*460±20 |
20-22 |
22 |
13.5 |
|
1400 |
1400*250*150*350±20 |
16-18 |
18.5 |
8.5 |
|
1300 |
1300*250*150*350±20 |
16-18 |
15 |
7.5 |
|
1200 |
1200*200*80*250±20 |
17-19 |
11 |
5.5 |
|
1100 |
1100*200*80*250±20 |
17-19 |
7.5 |
5 |
|
1000 |
1000*200*80*250±20 |
13-15 |
5.5 |
4.5 |
|
900 |
900*200*80 |
10-15 |
5.5 |
3 |
Notes: The model is named according to the diameter. Diameter*Thickness*Width+20mm.

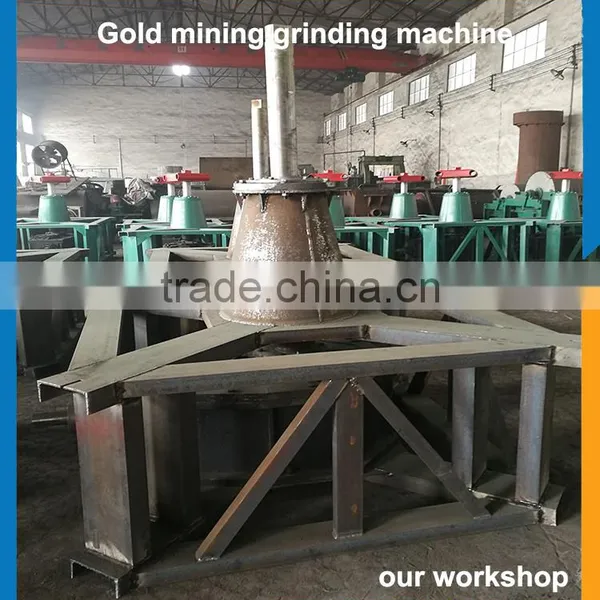

1.The steel plate of our Gold mining grinding machine from 20years professional manufacturer is thicker compared with the old type, making it more durable and not easy to deformation:

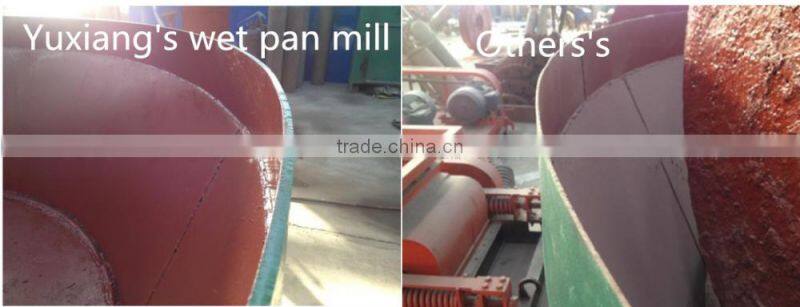

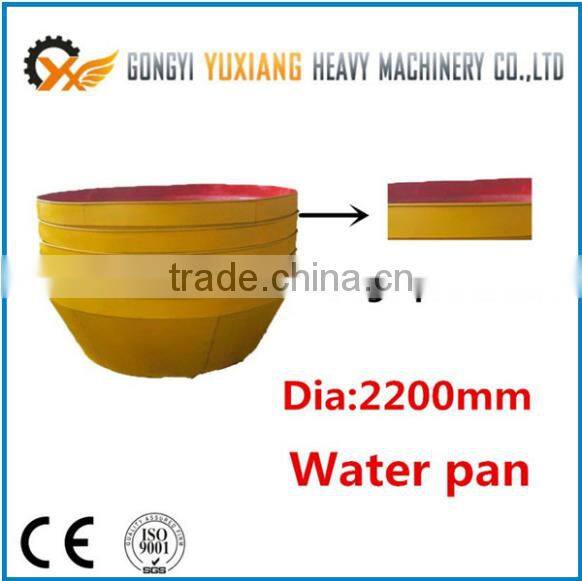

2.The water pan of edge protector.Our production change the sharp edge into round with steel bar.In this way,it can decrease the risk of hurting hand when clean the wet pan:

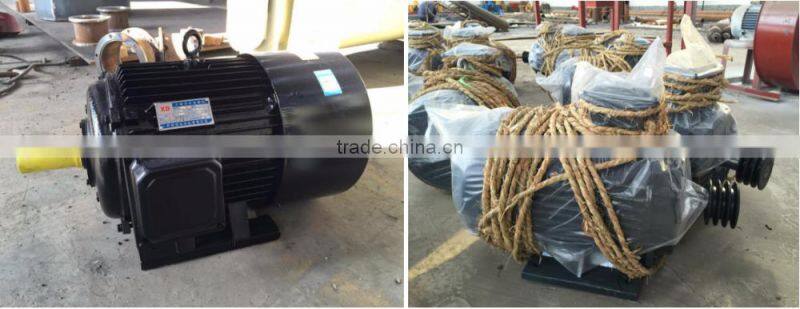

3.Motor is the heart of the machine so the life time of the Gold mining grinding machine is decided by the high quality motor.In China,there are many small workshops,who are producing the motor by hand,with low price,no quality guarantee.Currency leakage is dangerous to operator.Our wet pan mill is equiped the National certificated motor made in China,and Siemens motor is available:

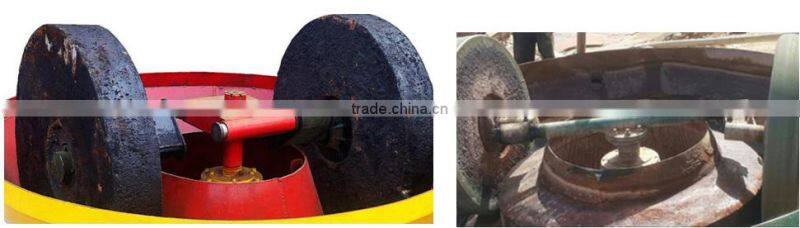

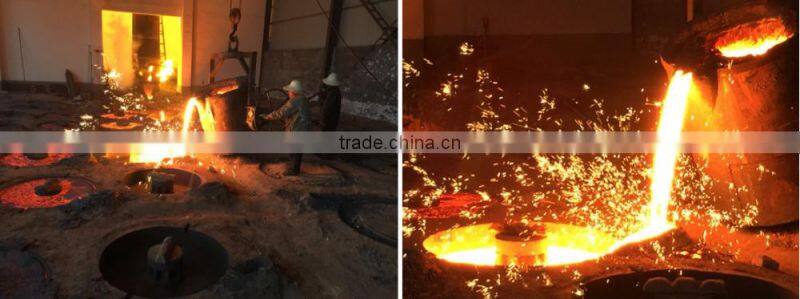

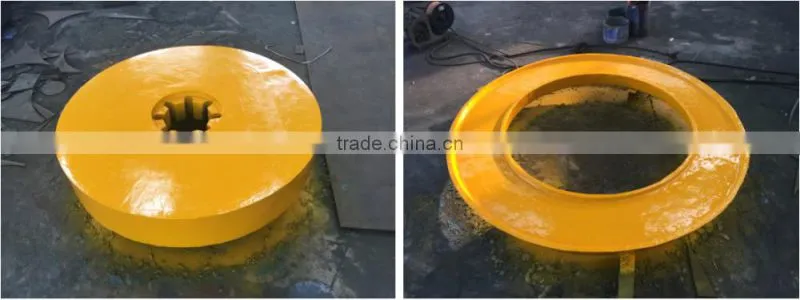

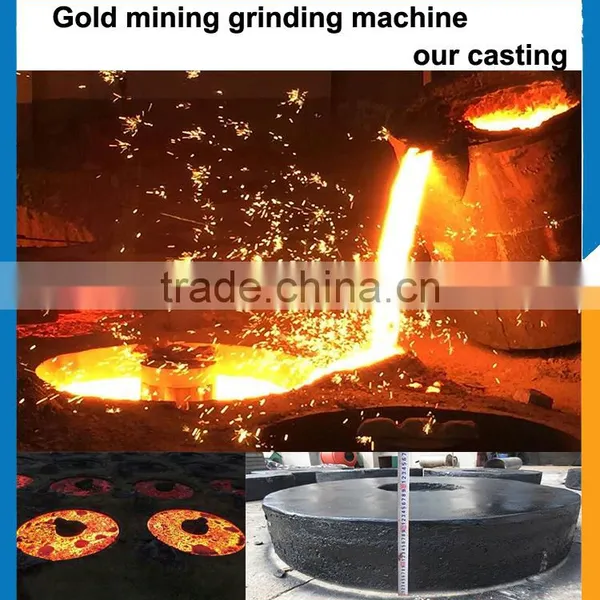

4.The roller and the roller basin are the key running parts of Gold mining grinding machine.The most porpular problem is the roller cracked.For casting,the mechanical property of part is decided by the casting process.As many foreign traders,it is very difficult for them to control the inner mechical tissue.We have own foundry with over 1000 square meters and 10 skilled workers.It is easy for us to control not only the surface quality but also the inner mechanical structure.:

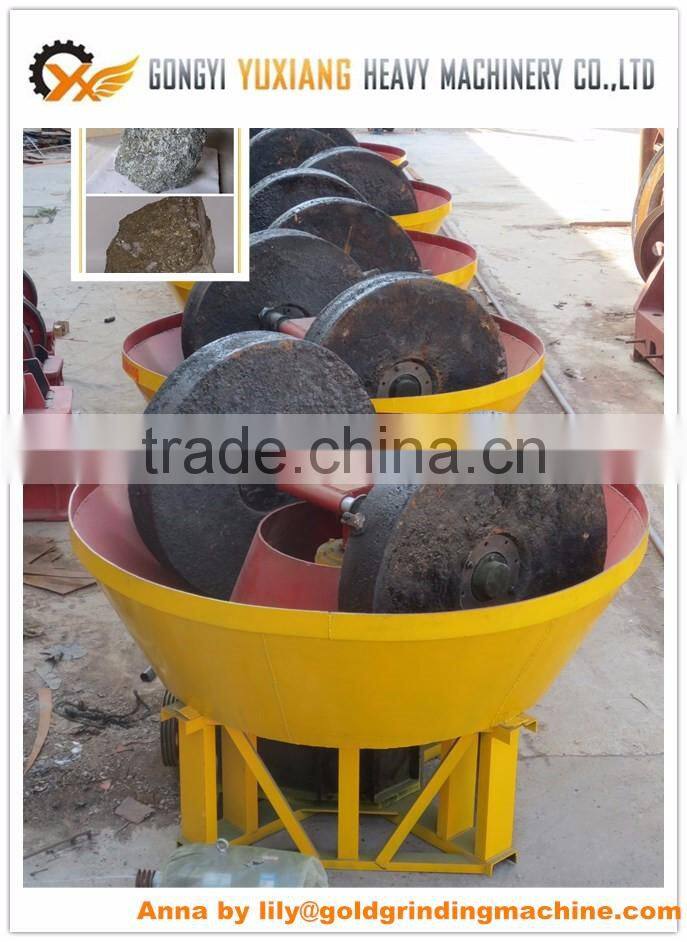

5.Smooth surface design of grinding roller to avoid the small gold goes into the crack and small holes.The weight for one piece of grinding roller is 1.5t:

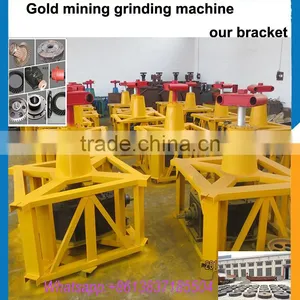

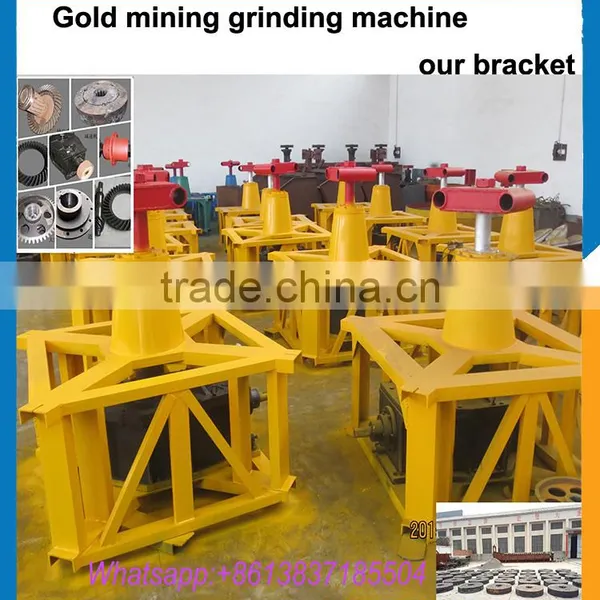

6.In our factory,We have two types of arm:crank arm, straight arm.we can according to your requirements,choose you interestd it:
The Operation and Maintenace of Gold mining grinding machine
1) The raw material should be put into the machine after the machine running normally.
2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
4) The bearing part should be add butter regularly.
5) Every bolts should be checked to avoid flexible.
6) The bearing should be changed in time if it is damaged to avoid damage other parts.
7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
8) The motor V-belt should be removed while examine and repair the machine for your safe.

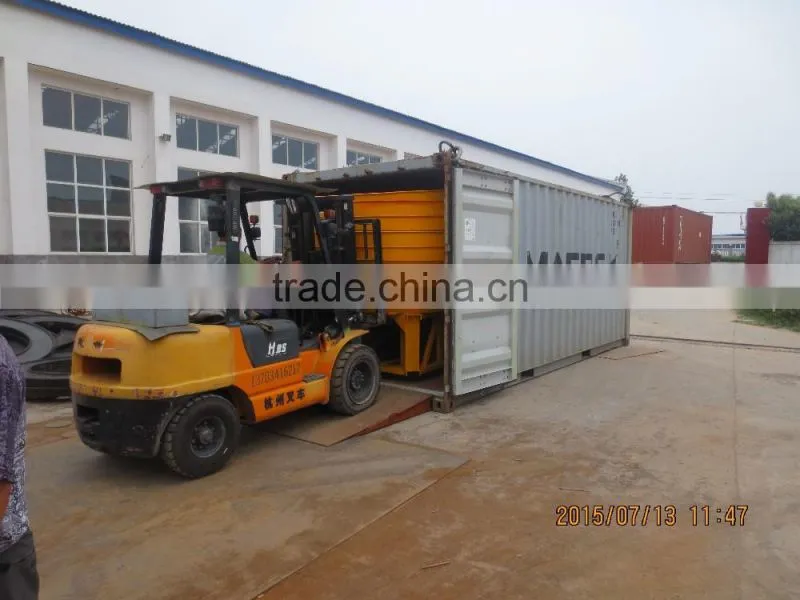

PART 6: Packaging&Delivery

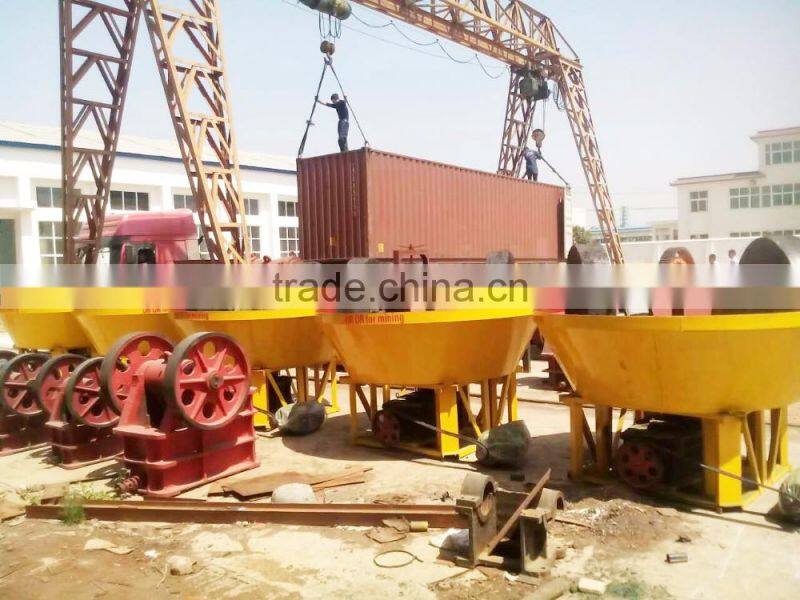

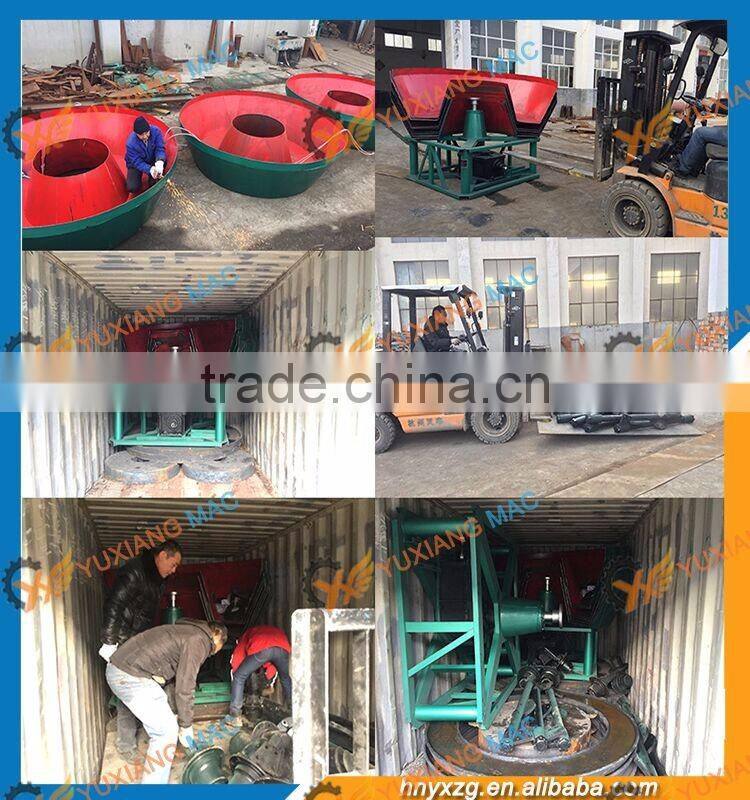

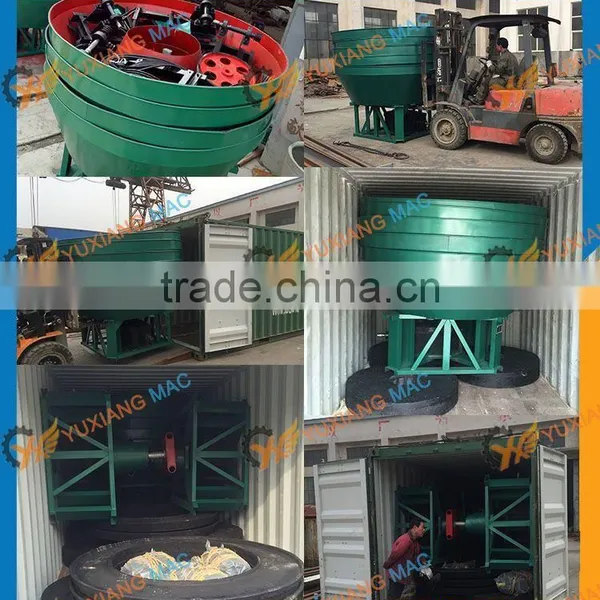

1)Wooden case:because the Gold mining grinding machine is special size,it is impossible to put 5sets in a 20"container.In order to save cost,we usually cut the water pan into half to ship.
2) Inside package is plastic bag,outside package is wooden case,or as your request
The pre-sale service
Gongyi City Yuxiang Heavy Machinery Co.,Ltd professional technical team can provide you with the project and process design,and make purchase plan for you. or design and manufacture the products according to your special requirements.
The sale of services
Gongyi City Yuxiang Heavy Machinery Co.,Ltd professional sales staff will accompany you to complete the equipment inspection and acceptance, assists to draft the construction scheme and detailed process.
The after-sale service
Gongyi City Yuxiang Heavy Machinery Co.,Ltd sent technical personnel to the scene to guide the installation of equipment, commissioning machine and training of operator.
Our company are an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
If need,please ask for the video of working about this gold mining grinding machine
https://youtu.be/Z_PzLuXl1_k

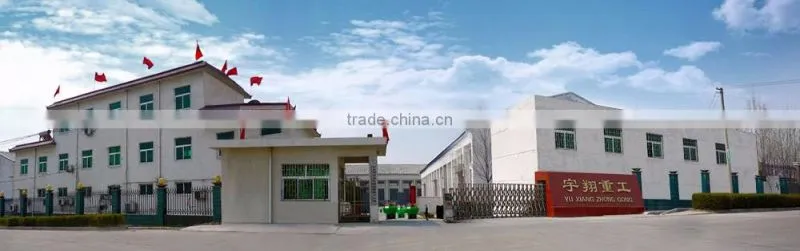

Welcome to our factory >>
