Hot sale new type grinding machine for gold in Sudan
here goes the product working viedo: https://youtu.be/Z_PzLuXl1_k
PART 1 : The Introduction of new type grinding machine for gold in Sudan
New type grinding machine for gold is the best equipment to replace ball mill. because it have small investment, high output, low production cost, good efficiency and easy installation. And the machine is the ideal beneficiation equipment for small and medium-sized enterprise. Gold grinding machine is mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. The wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore. Above all, 1200a type is the most popular and widely use.
PART 2 :Working principle of grinding machine for gold:
The new type grinding machine repeatedly squeeze and mill gold ore through the weight of the wheels until the gold ore has been crushed completely. And then add 1 kg mercury into the water . Meantime, every 5-10 minutes, add gold ore to the machine. After 24 hours, recycle mercury. Then pack mercury with big density of cloth. Twist the cloth and let the mercury come out. The gold will be left in the cloth.
Model |
Dia of grinding wheel(mm) |
Thickness of grinding wheel(mm) |
Dia of grinding pan (mm) |
Thickness of grinding pan (mm) |
Working surface of wet pan mill (mm) |
Speed (r/min) |
Power (kw) |
Weight (t) |
YX-1600A |
1600±10 |
400±10 |
2100±10 |
200±10 |
500±10 |
20-22 |
Y6-37 |
14.5 |
YX-1500A |
1500±10 |
400±10 |
2050±10 |
200±10 |
460±10 |
20-22 |
Y6-30 |
13.5 |
YX-1400A |
1400±10 |
250±10 |
2000±10 |
170±10 |
350±10 |
16-18 |
Y6-15 |
8.5 |
YX-1300A |
1300±10 |
250±10 |
2000±10 |
150±10 |
250±10 |
16-18 |
Y6-15 |
7.5 |
YX-1200A |
1200±10 |
200±10 |
1800±10 |
90±10 |
250±10 |
17-19 |
Y6-7.5 |
5.5 |
YX-1200B |
1200±10 |
200±10 |
1800±10 |
90±10 |
250±10 |
23-25 |
Y6-7.5 |
5.5 |
YX-1100A |
1100±10 |
200±10 |
1800±10 |
90±10 |
250±10 |
17-19 |
Y6-7.5 |
5 |
YX-1000 |
1000±10 |
200±10 |
1700±10 |
90±10 |
250±10 |
13-15 |
Y6-7.5 |
4.5 |
YX-900 |
900±10 |
180±10 |
1700±10 |
80±10 |
250±10 |
13-15 |
Y6-5.5 |
4.5 |
Notes: The grinding machine model is named according to the diameter. Diameter*Thickness*Width+20mm.
PART 4 : The Operation and Maintenace of new type grinding machine for gold in Sudan
1) The raw material should be put into the machine after the machine running normally.
2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
4) The bearing part should be add butter regularly.
5) Every bolts should be checked to avoid flexible.
6) The bearing should be changed in time if it is damaged to avoid damage other parts.
7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
8) The motor V-belt should be removed while examine and repair the machine for your safe.
|

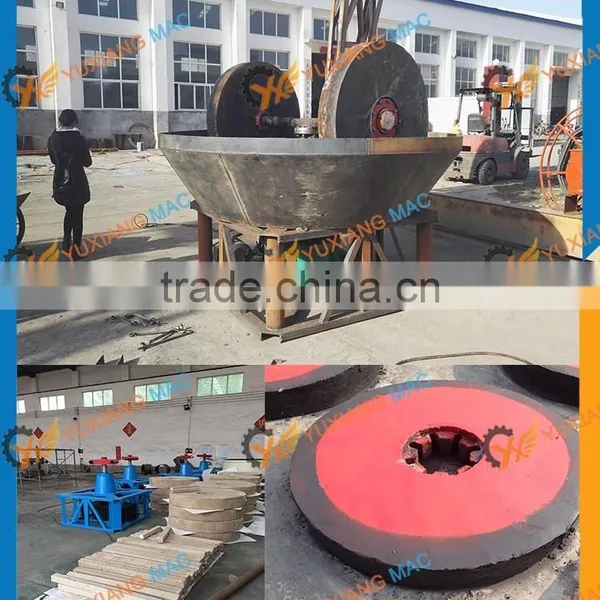

Grinding base of grinding machine For model 1200A, the diameter of grinding base is 1800 mm ,the thickness of grinding base is 90mm.The material could be high Mn and White iron.
|
|
|
|

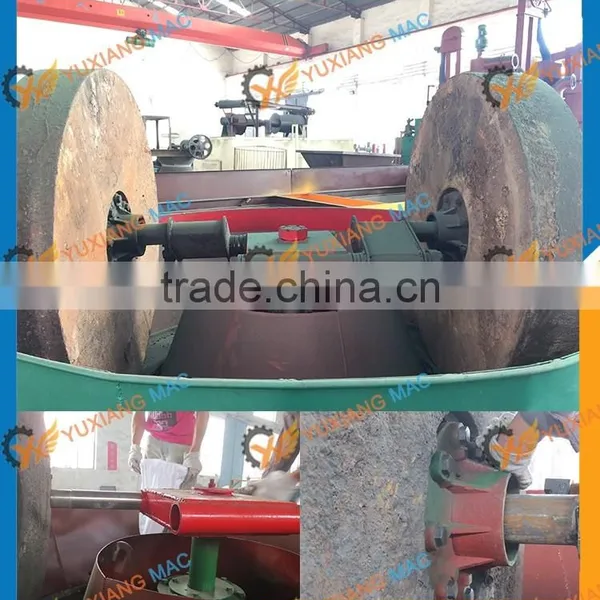

Grinding roller of grinding machine |
|
|

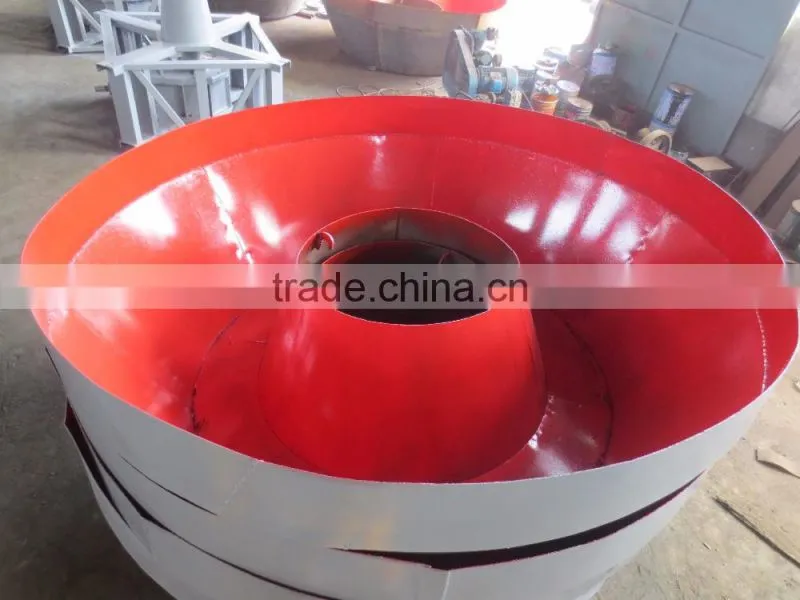

Water pan of grind machine for gold The edge of the water pan is specially processed with the edge protecting. |
|
|
PART 5: Our grinding machine for gold in Sudan
PART 6: Packaging&Delivery
1)Grinding machine for gold can be packed by Ply-wooden case
2) Inside package is plastic bag,outside package is wooden case,or as your request
PART 7: Our Services and Company Information
The pre-sale service
Gongyi City Yuxiang Heavy Machinery Co.,Ltd professional technical team can provide you with the project and process design,and make purchase plan for you. or design and manufacture the products according to your special requirements.
The sale of services
Gongyi City Yuxiang Heavy Machinery Co.,Ltd professional sales staff will accompany you to complete the equipment inspection and acceptance, assists to draft the construction scheme and detailed process.
The after-sale service
Gongyi City Yuxiang Heavy Machinery Co.,Ltd sent technical personnel to the scene to guide the installation of equipment, commissioning machine and training of operator.
Our company are an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
