high efficient good quality ball mill with best after service
High effieiency ball mill with energy saving CE ISO certification
Here goes machine working viedo :https://youtu.be/NaDcMpv3yPI
|
Ball mill is Yu Xiang's major product, professional technology support and all-around service can be offered to you, we also can made according to your special requirments. Welcome you visit our company to know more about us. |
|

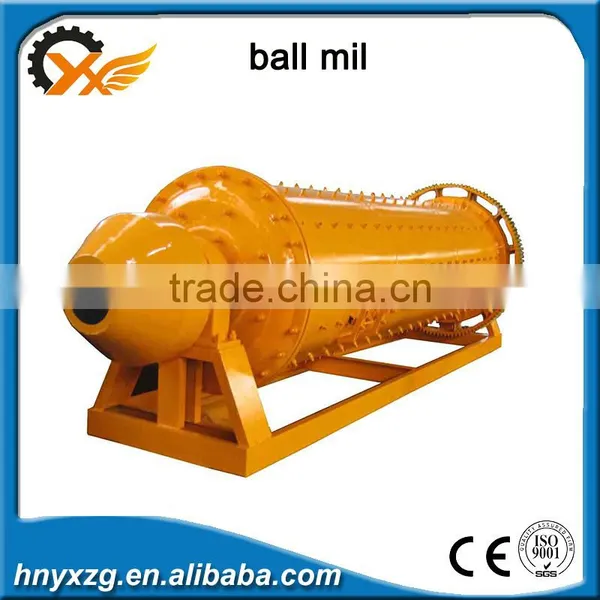

| Brief introduction | Ball mill is an efficient tool for grinding many materials into fine powder,mine, is widely used in building material, and chemical industry,can be divided into tabular type and flowing type according to differentexpelling mine ,There are two ways of grinding: the dry way and the wet way. |

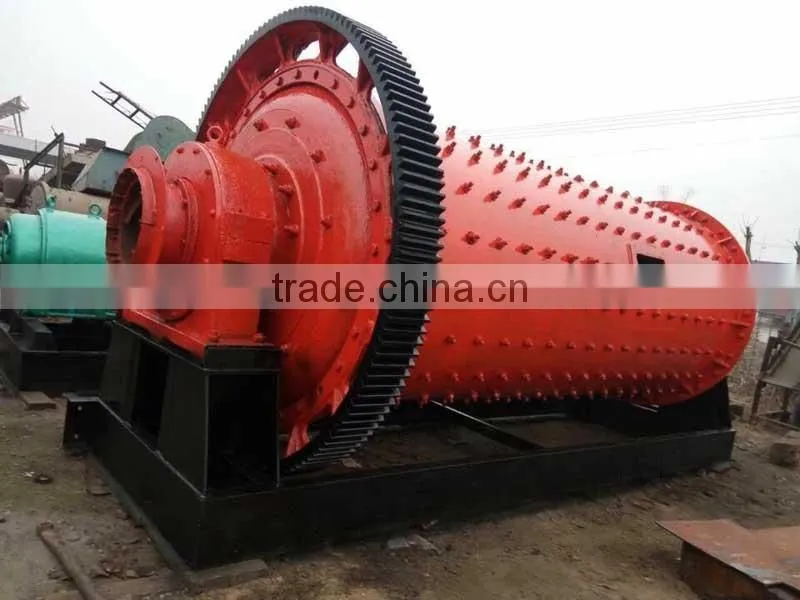

Working principle of ball mill
| The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished. | |
| Model | Speed of bucket(r/min) | Ball load (t) | Feeding size(mm) | Size of outputting(mm) | Capacity(t/h) | Motor power(kw) | Weight(t) |
| 900*1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| 900*3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| 1200*2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| 1200*4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500*3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
| 1500*4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
| 1830*3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
| 1830*6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
| 2200*5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
| 2200*6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |

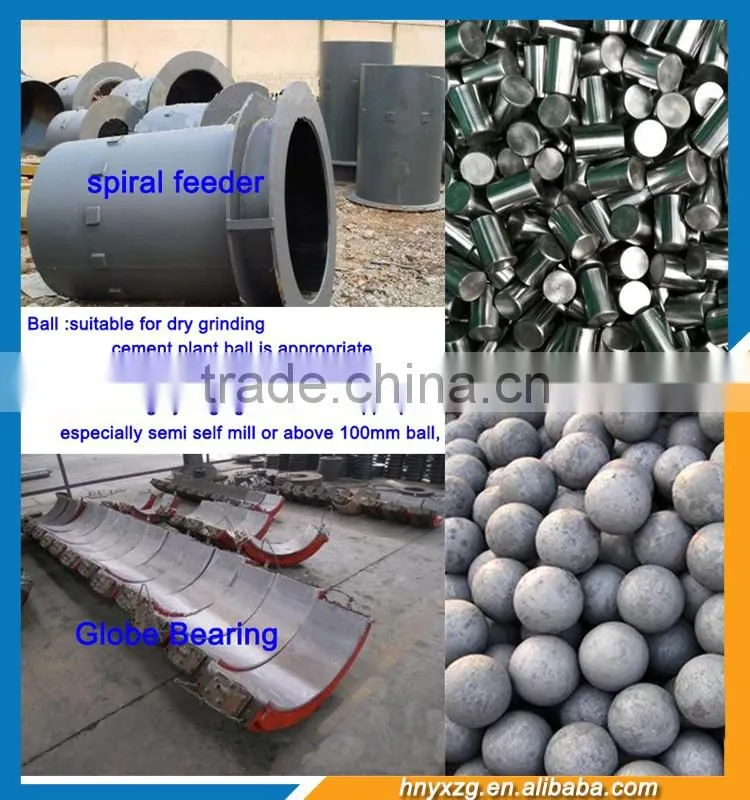

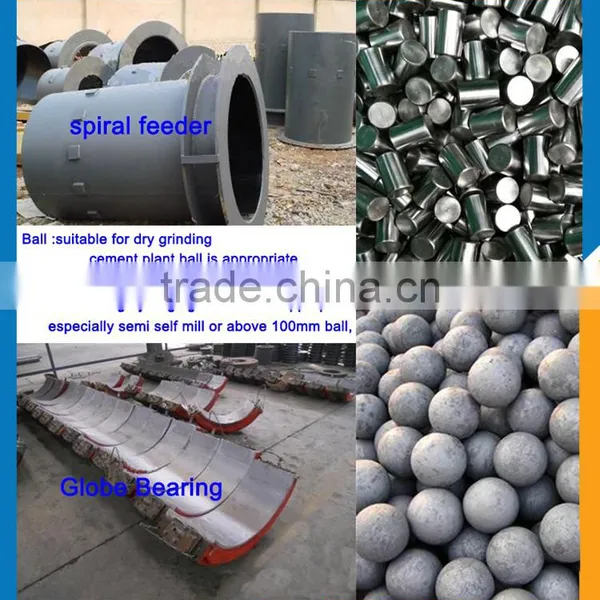

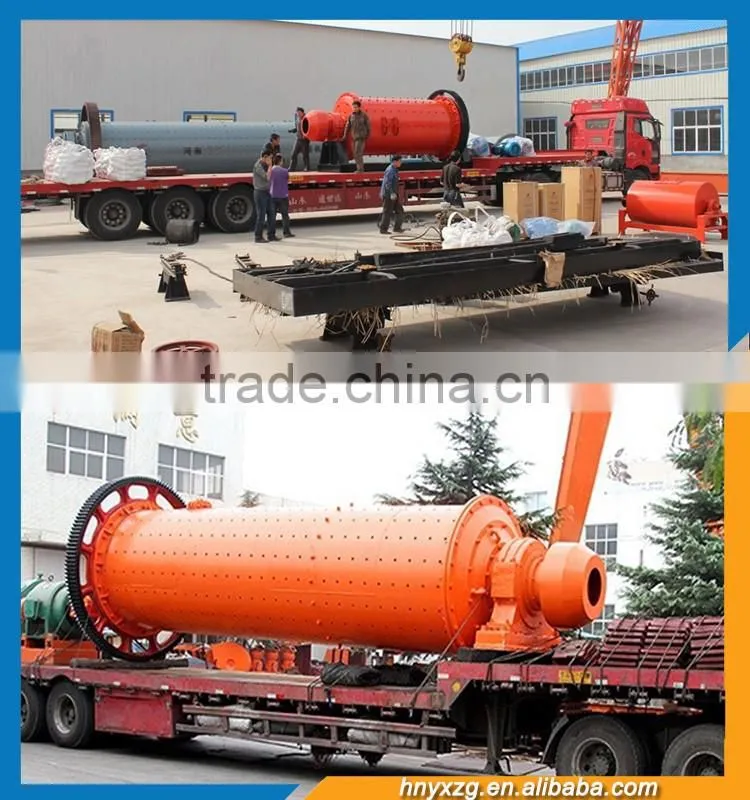

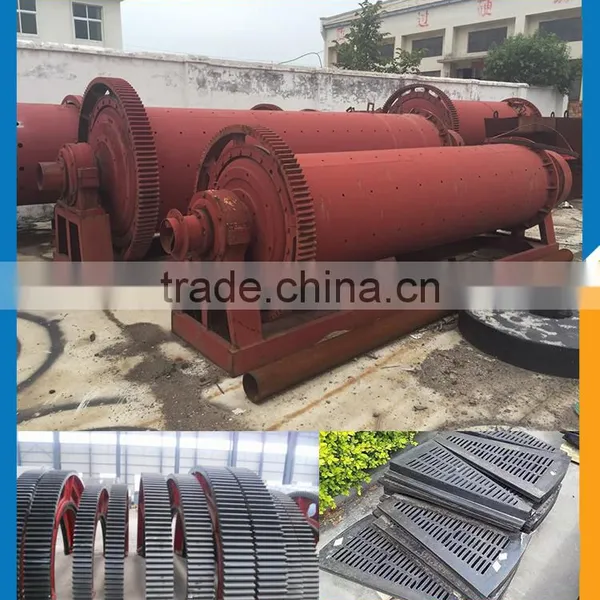

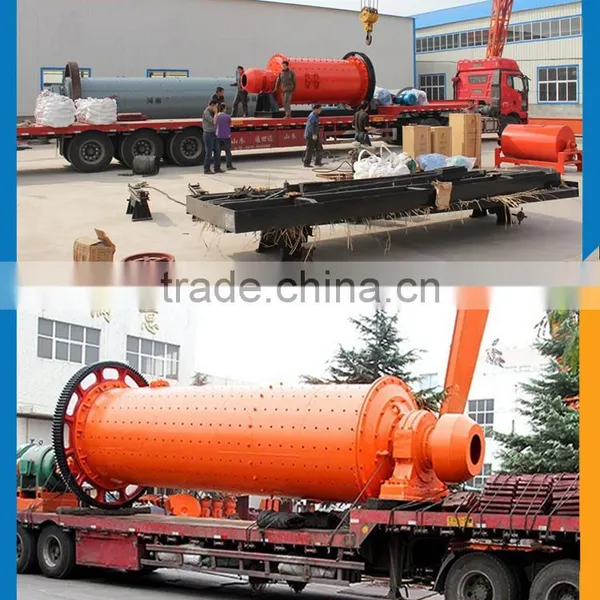

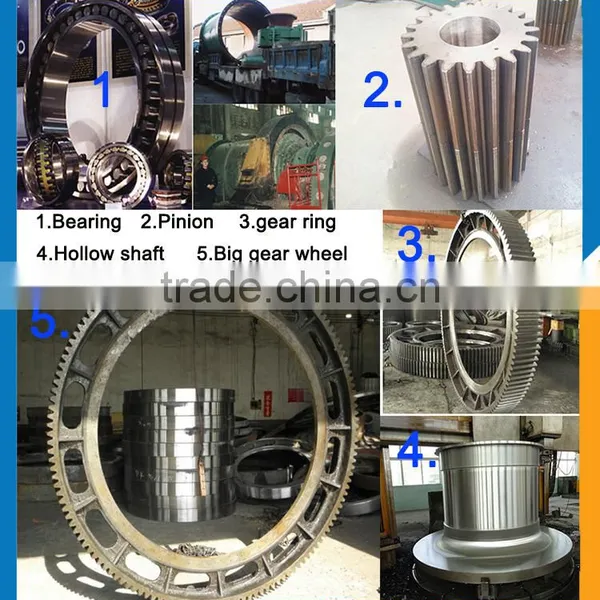

packing &delivery and spare parts of ball mill
|
hammer crushers also called hammer mill,is suitable for crushing various hard and brittle materials. Weight:3.5t,0.8t Capacity:5-75t/h More details>>>
Get Quotation |
|
Jaw Crusher is suitable for crushing big size lumps in large quantity, is configured for primary crushing of even the hardest rock. Weight:10.3t Capacity:50-60 t/h Max Feeding Size:850mm More details>>>
Get Quotation |
|
|
wet pan mill mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. Capacity:0.8-1t Weight:5t More details>>>
Get Quotation |
Pre-sale services:
Act as a good adviser and assistant of clients
Select equipment model;
Design and manufacture products according to clients’ special requirement;
Services during the sale:
Respect clients;considering every aspect and details for our customers
Keep costumers informed about the shipping;
After-sale services:
We promise excellent after-sale service!
Assist client to prepare for the first construction scheme;
Install and debug the equipment;
main the first-line operators on site;
Take initiative to eliminate the troubles rapidly at site;
Provide maintenance for big items;
Gongyi city Yuxiang Heavy Machinery Co,Ltd has established more than 20 years, which is a professional manufacturer and exporter that is concerned with R&D, production, sales and service. In the past 20 years, our mainly product Mining series equipment, Charcoal briquette machine series, Carbonization furnace equipment, Dryer series equipment, Grinding machine series,oil press machine/oil filteration machine etc. We are located in Gongyi city, Henan, China. We will provide convenient transportation including expressway,railway and waterway. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
