Resistance abrasion promotion price Hammer crusher machine with CE ISO

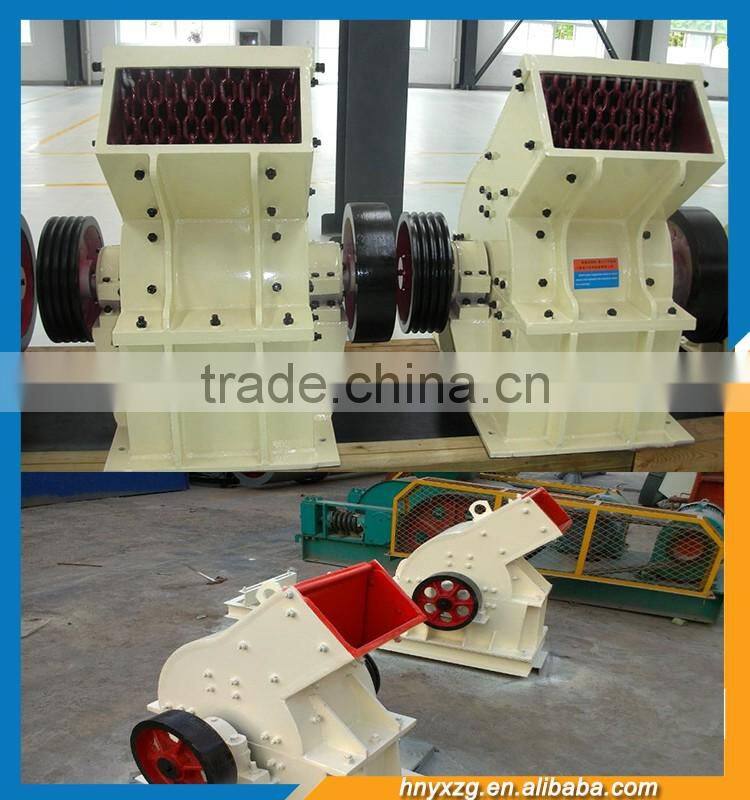

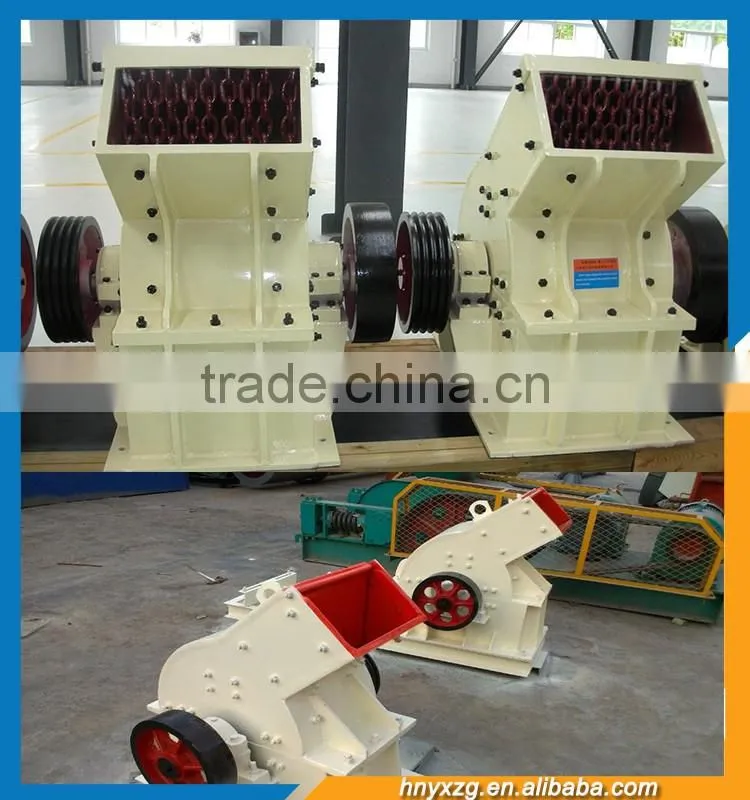

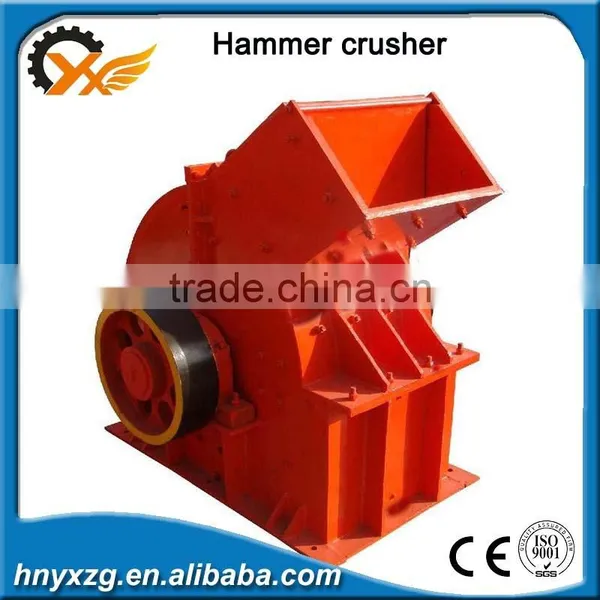

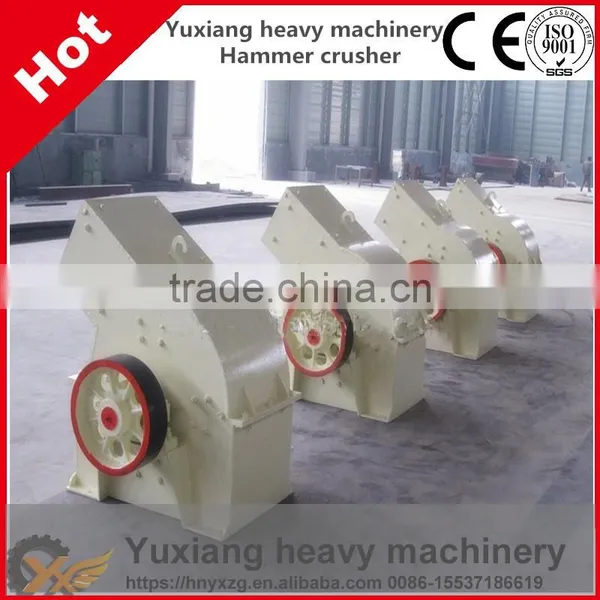

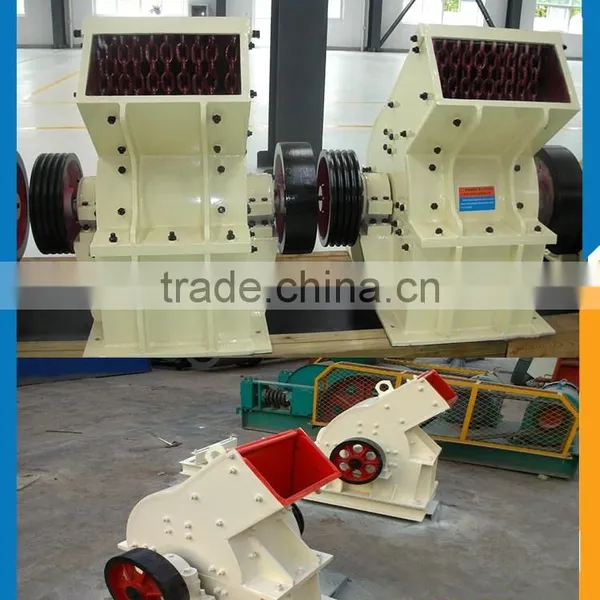

High efficiency Mining machinery hammer crusher with excellent quality

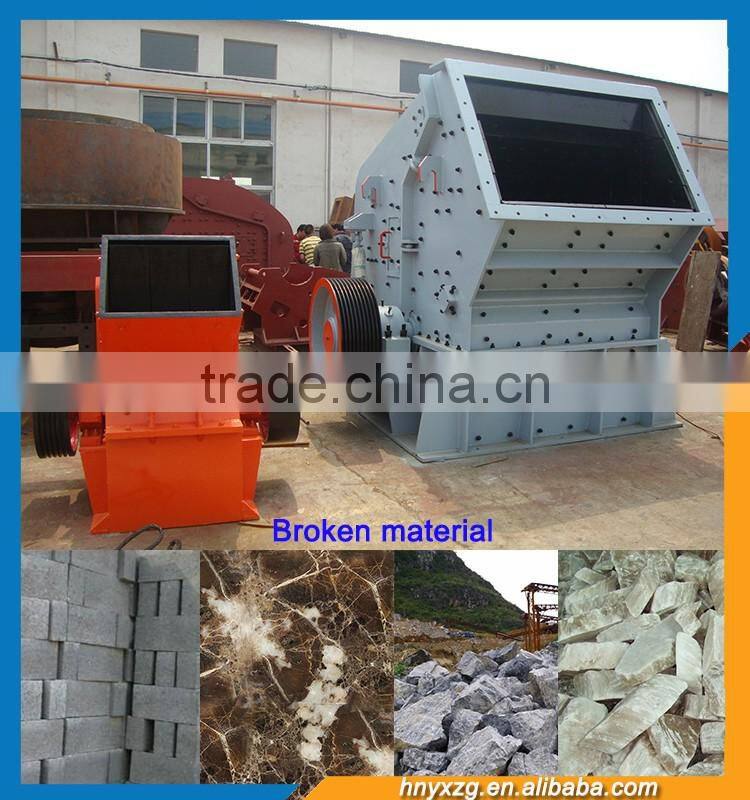

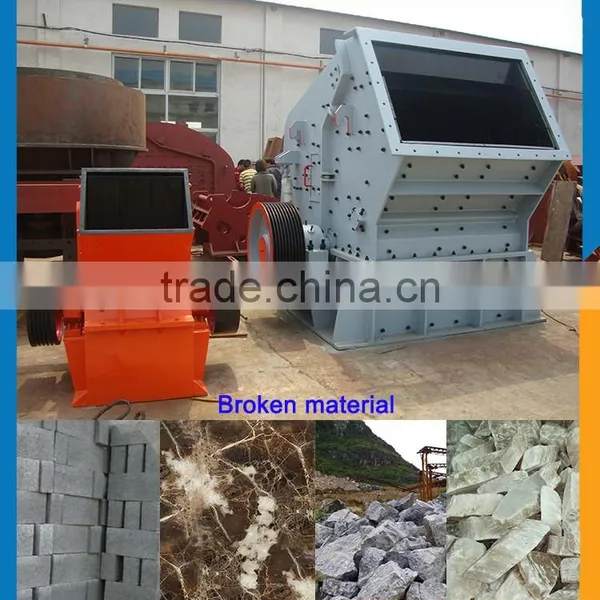

| This series of hammer crushers also called hammer mill,is suitable for crushing various hard and brittle materials such as coal, salt, chalk, plaster stone,gypsum, alumstone, brick, tile, limestone etc. Whose compressive resistance does not exceed 150Mpa and the moisture content should not be greater than15%. | |
|
The motor drives the belt sheel and makes the rotor rotates in high speed,the material will be impacted by the hammer heads which installed in the rotor into the suitable sizes particles we need,it can do both dry and wet type crushing,widely used in cement,compound fertilizer,coal separation,mine,metallurgy,construction building material,power plant,refractory material,quarrying etc., industries,suitable for medium and fine crushing the limestone,coal,charcoal,Aluminum ore,oil shale,chalk,gypsum and so on. |
Big size material feed into the crushing cavity,then pile up on the specially designed middle shelf,the hammer head will rotates in the clearance of the middle shelf,impact the big size material into small pieces,the smaller material will fall down and further impacted by the hammer heads,finally the suitable size material will be discharged through the arc-shaped grate plate on the bottom of the hammer crusher. |
|
The parameter of Hammer crusher
| Model | Hammerhead number | Feed Size(mm) | Size of output(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
| PC400*300 | 16 | <100 | <15 | 5-10 | 4P-11 | 0.8 |
| PC350*500 | 20 | <100 | <15 | 8-15 | 4P-18.5 | 1.2 |
| PC600*400 | 20 | <220 | <15 | 10-25 | 4P-22 | 1.5 |
| PC800*600 | 24 | <350 | <15 | 20-50 | 4P-55 | 3.8 |
| PC800*1000 | 20 | <400 | <15 | 20-75 | 4P-75 | 5.5 |

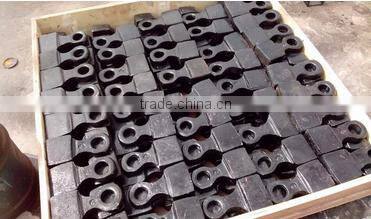

Spare parts of the Hammer crusher
|

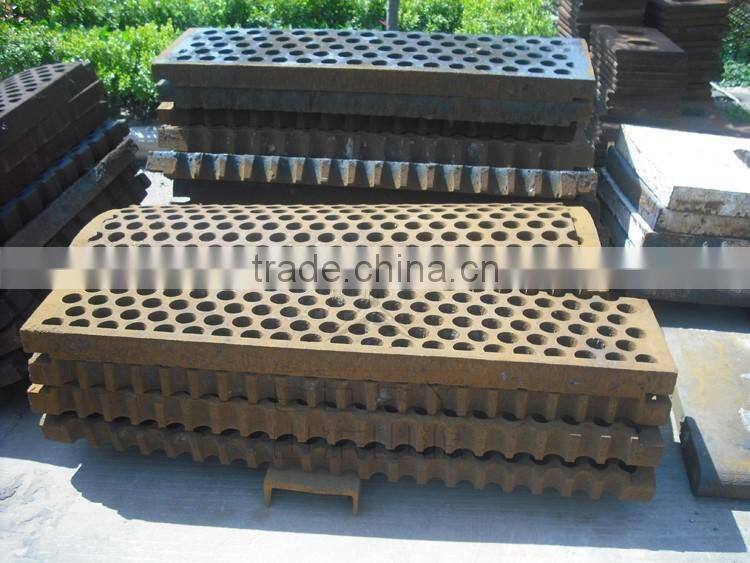

Sieve plate of Hammer crusher Convenient installation and maintenance, advanced structure and long service life |
|
Sieve plate of Hammer crusher Not easy deformation, high strength, smooth material, large output |
|
|

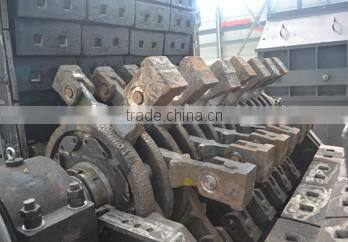

Rotor disk of Hammer crusher Smooth and reliable operation, wear parts loss, maintenance costs less
|

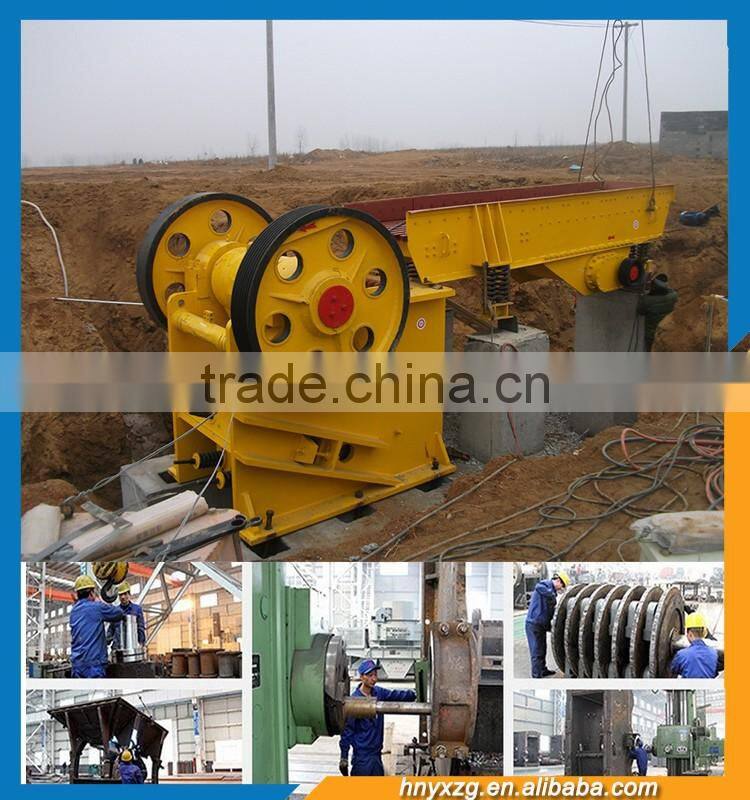

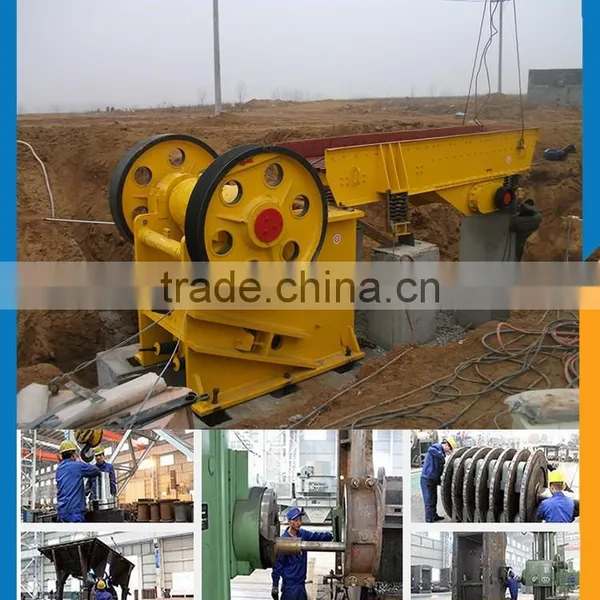

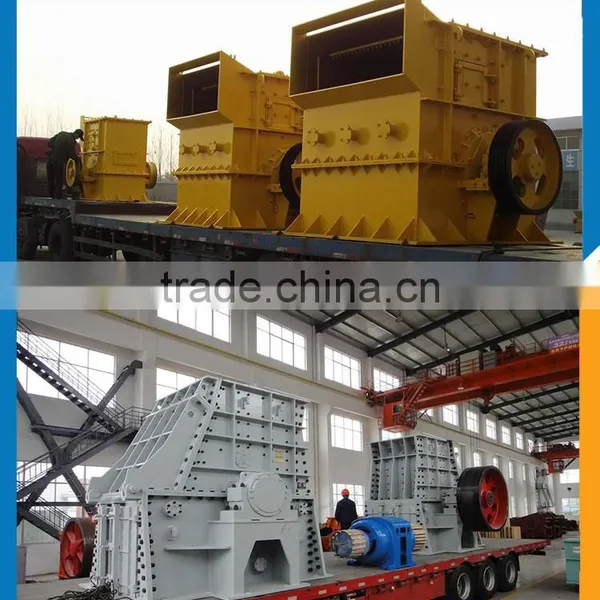

Working Site and Delivery of Hammer crusher
|
|
Related products of Hammer crusher
|
1100A wet pan mill this type is usually need by Eygpt customer. mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. Capacity:0.8-1t Weight:4.5t More details>>>
Get Quotation |
|
|
1200A wet pan mill mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. Capacity:0.8-1t Weight:5t More details>>>
Get Quotation |
|

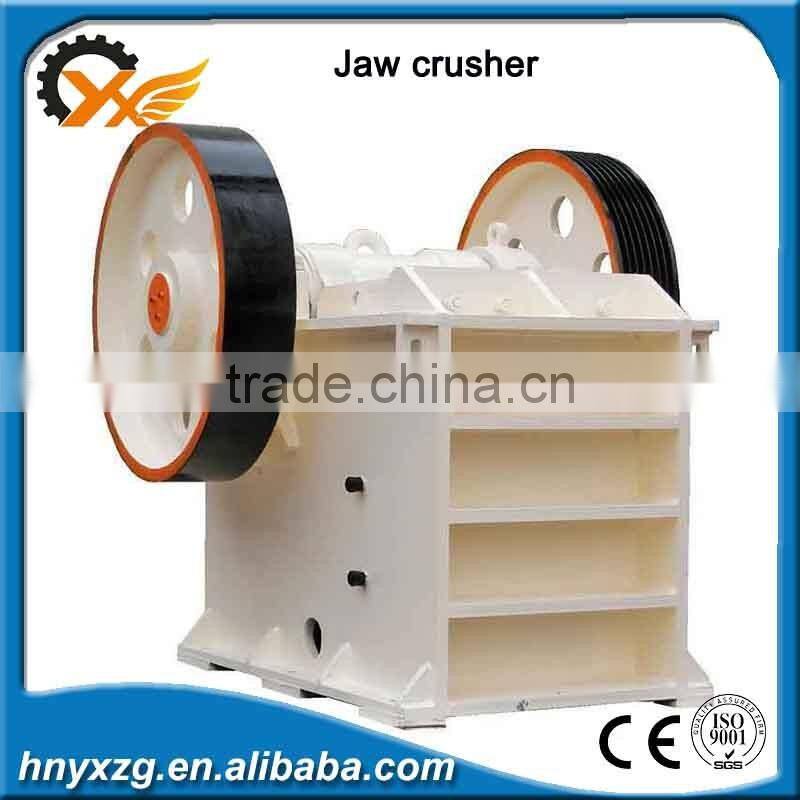

Jaw Crusher is suitable for crushing big size lumps in large quantity, is configured for primary crushing of even the hardest rock. Weight:10.3t Capacity:50-60 t/h Max Feeding Size:850mm More details>>>
Get Quotation
|
|
|
Ball mill Yu Xiang's major product, professional technology support and all-around service can be offered to you Weight:37000KG Capacity:0.65-90T/H More details>>>
Get Quotation |
Our Service
Pre-sale services:
Act as a good adviser and assistant of clients
Select equipment model;
Design and manufacture products according to clients’ special requirement;
Train technical personnel for clients;
Services during the sale:
Respect clients;considering every aspect and details for our customers
Check products ahead of delivery;
Keep costumers informed about the shipping;
After-sale services:
We promise excellent after-sale service!
Assist client to prepare for the first construction scheme;
Install and debug the equipment;
main the first-line operators on site;
Take initiative to eliminate the troubles rapidly at site;
Provide maintenance for big items;
Gongyi city Yuxiang Heavy Machinery Co,Ltd has established more than 20 years, which is a professional manufacturer and exporter that is concerned with R&D, production, sales and service. In the past 20 years, our mainly product Mining series equipment, Charcoal briquette machine series, Carbonization furnace equipment, Dryer series equipment, Grinding machine series,oil press machine/oil filteration machine etc. We are located in Gongyi city, Henan, China. We will provide convenient transportation including expressway,railway and waterway. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching India, Indonesia, Vietnam, Bangladesh, Pakistan, Sultan, Cambodia, Philippines, Iran, Sri Lanka, Africa, Russia, the United Kingdom, the United States, Brazil, Australia etc. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Welcome to our company any time !
