Plant direct sale jaw crusher with excellent quality

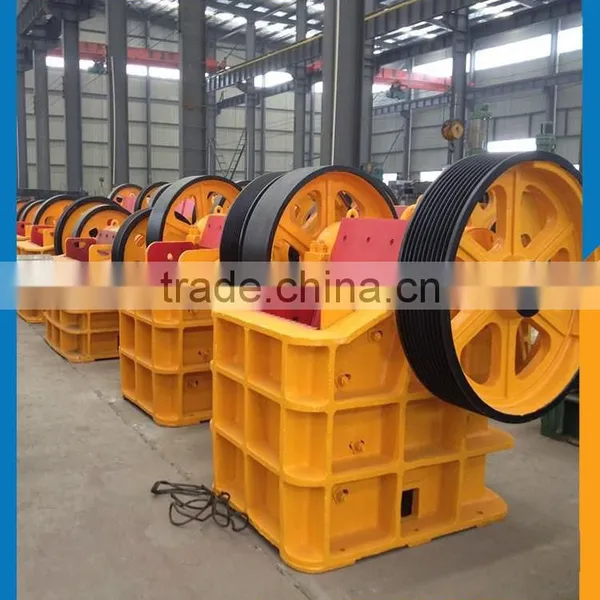

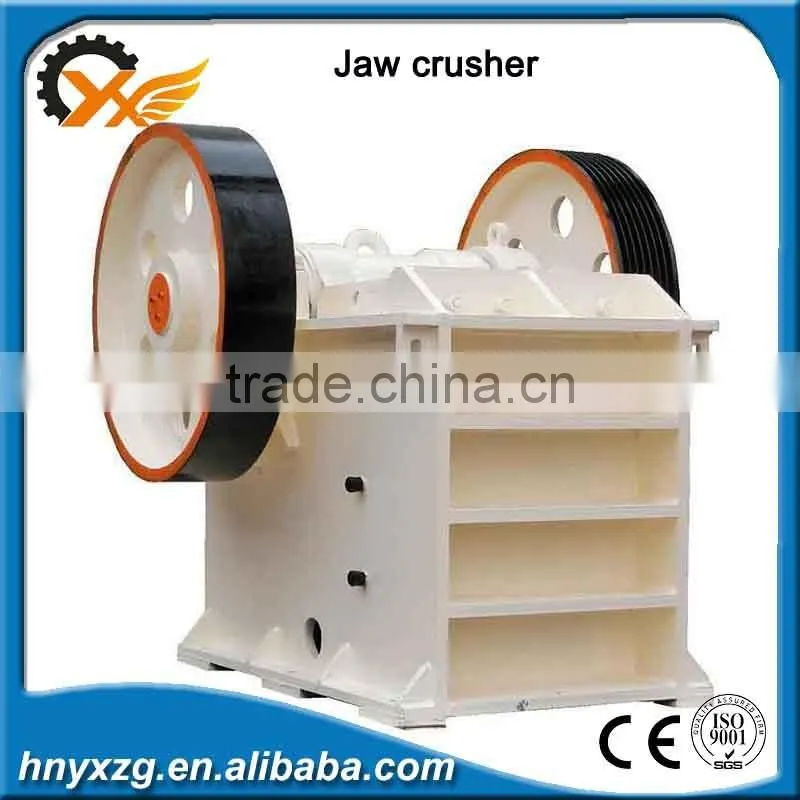

Sharp design Mining equipment jaw crusher with CE ISO approved
|
With larger feed openings and bigger crushing strokes, the Jaw Crusher is suitable for crushing big size lumps in large quantity.From the welded steel base to the rugged eccentric shaft, the jaw crusher is built with brute strength with quality bearings. |
|

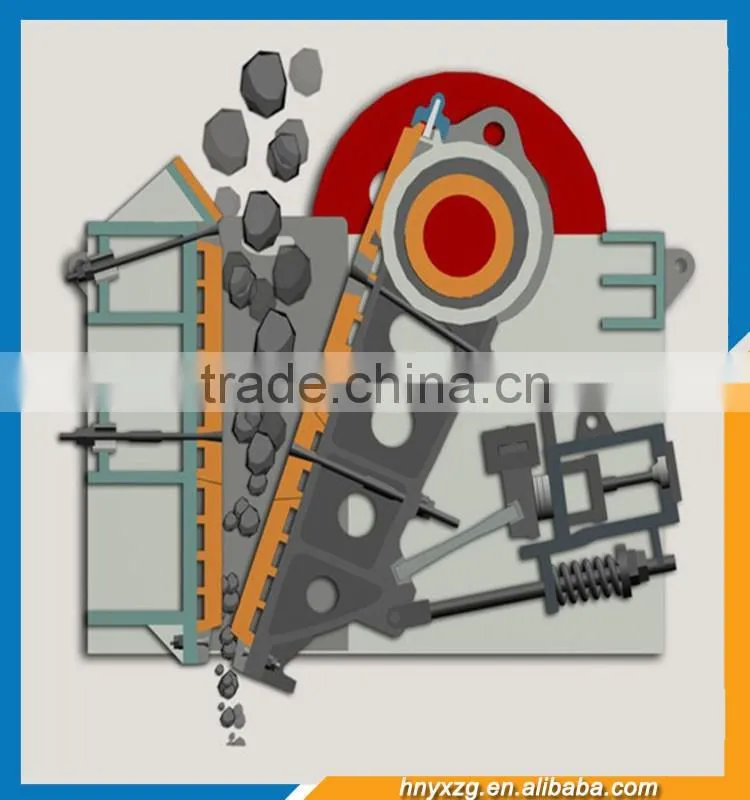

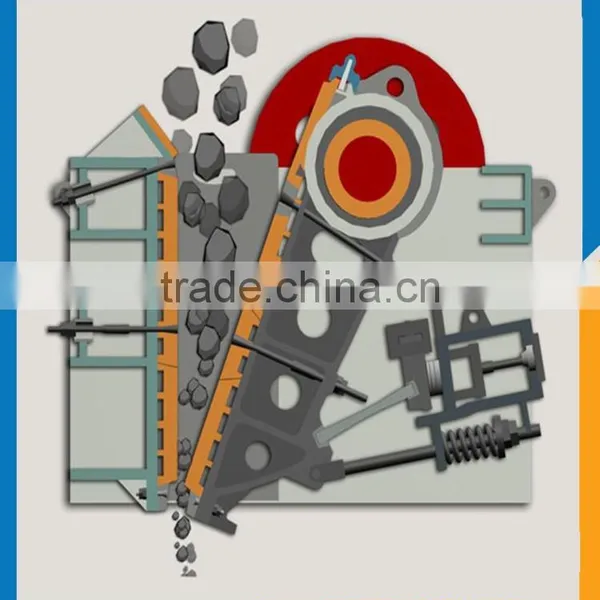

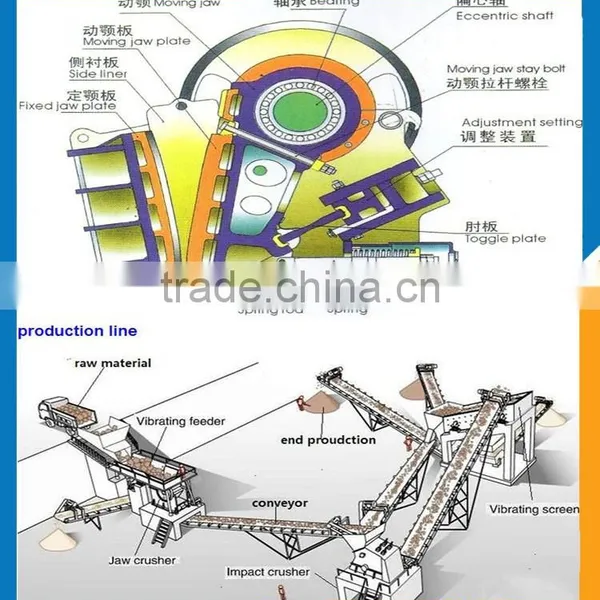

Work principle : A jaw crusher uses compressive force for breaking of particle. This mechanical pressure is achieved by the two jaws of the crusher of which one is fixed while the other reciprocates. |
|
|

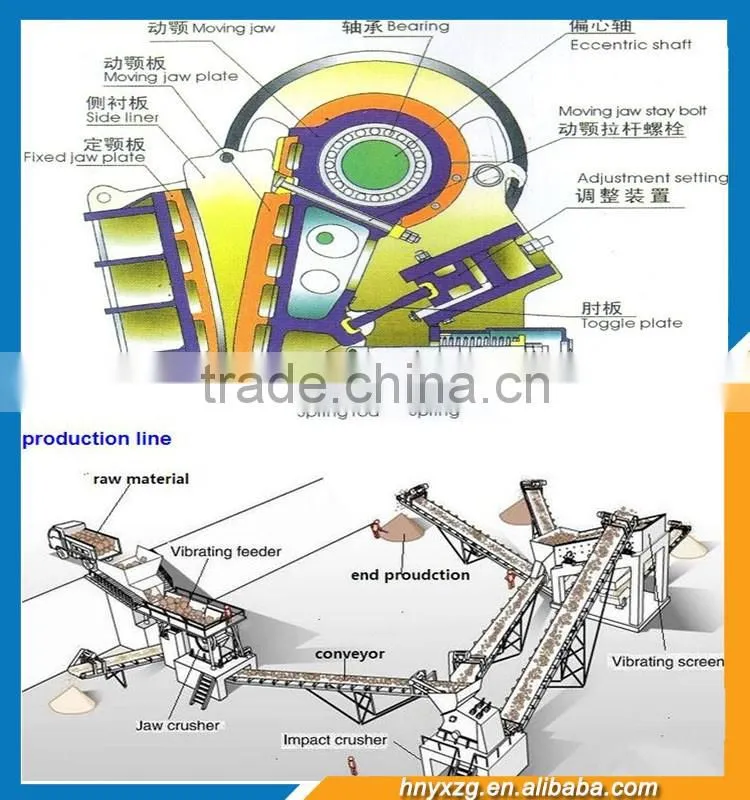

Work principle : A jaw or toggle crusher consists of a set of vertical jaws, one jaw is kept stationary and is called a fixed jaw while the other jaw, called a swing jaw, moves back and forth relative to it, by a cam or pitman mechanism, acting like a class II lever or a nutcracker. The volume or cavity between the two jaws is called the crushing chamber. |
Jaw crusher technical parameters
| Model | Feeder Opening(mm) |
Setting Adjustment Range(mm) |
Max. Feeding Size (mm) | Capacity (t/h) | Motor Power (KW) | Weight(t) |
| PE250x400 | 400x250 | 20-50 | 200 | 5-25 | 15 | 2.4 |
| PE500x750 | 500x750 | 50-100 | 425 | 40-100 | 40-55 | 12 |
| PE600x900 | 900x600 | 65-160 | 480 | 90-180 | 55-75 | 17 |
| PE750x1060 | 1060x750 | 80-140 | 630 | 110-320 | 90-110 | 29 |
| PE900x1200 | 900*1200 | 95-165 | 750 | 220-450 | 110-132 | 52 |
| PE1000x1200 | 1000x1200 | 195-265 | 850 | 315-550 | 110 | 57 |

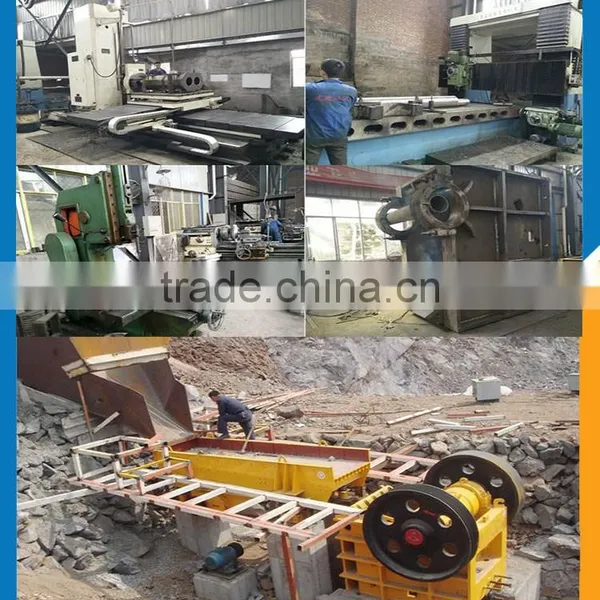

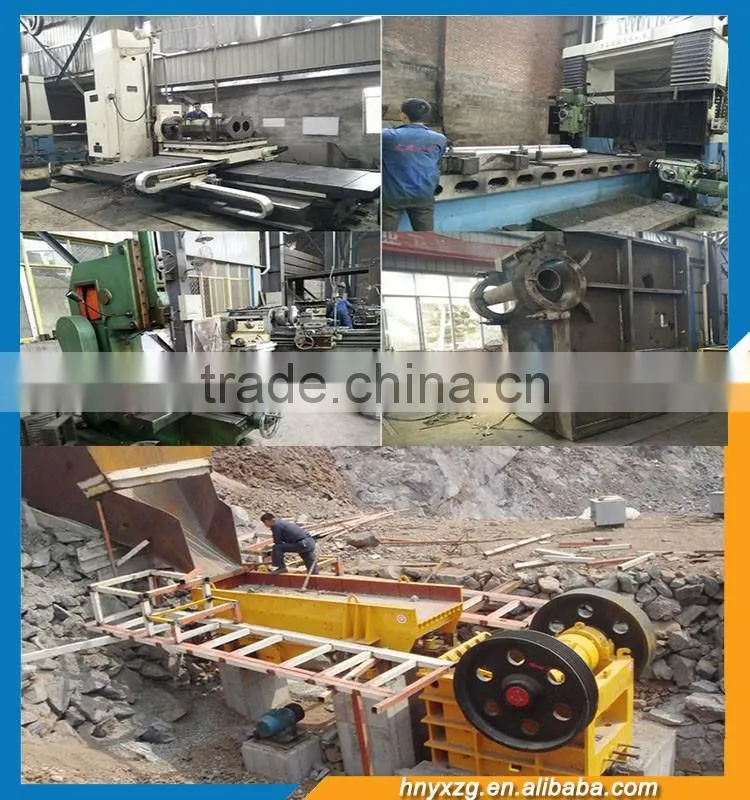

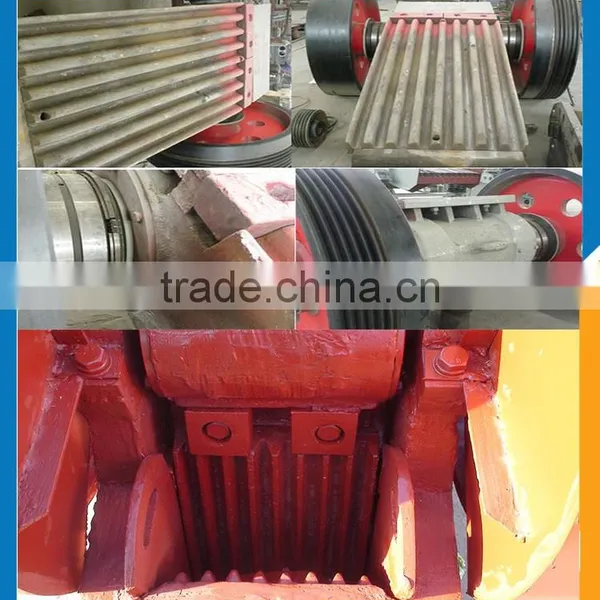

More details and working site about the jaw crusher
| The Jaw Crusher is configured for primary crushing of even the hardest rock. Incoming material is crushed between the jaw crusher’s fixed plate and movable plate through advancing and retreating motions of the jaw crusher pitman arm. The Jaw Crusher main shaft bearing includes a dust seal with oil bath lubrication | |
|
Large & deep crushing chamber with sharp crushing angle, to achieve a very high crushing ratio. The Jaw Crusher with bigger feed opening and longer pitman arm is especially suitable for primary crushing. Recommended for big lumps & large quantities, for primary crushing of limestone, river stone, tough ores, and concrete recycling. |

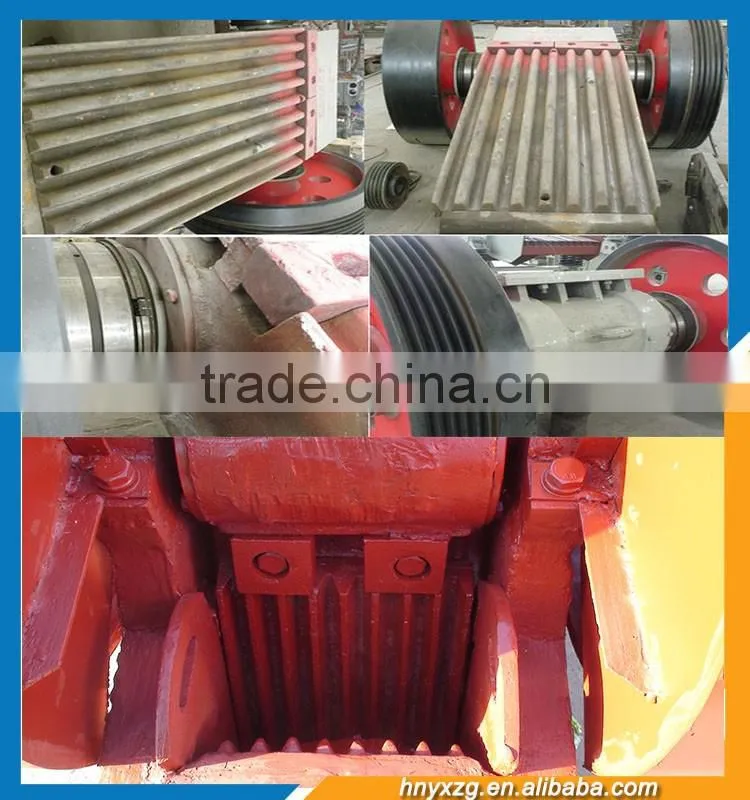

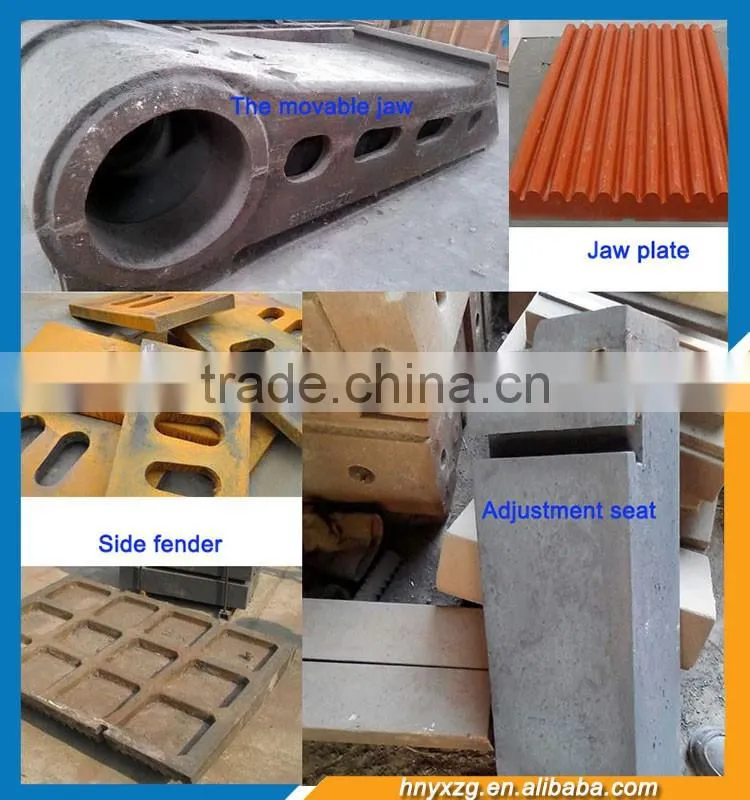

Spare pares of Jaw Crusher
|
Roller bearings provide strength & safety. Oil bath lubrication ensures longer service life. Toggle plate, toggle block, and toggle seat protect the jaw crusher from damage caused by uncrushable material in the crushing chamber. This construction helps to maintain a stable crushing angle. Simple & quick discharge gap adjustment, precise product grain distribution. |
|

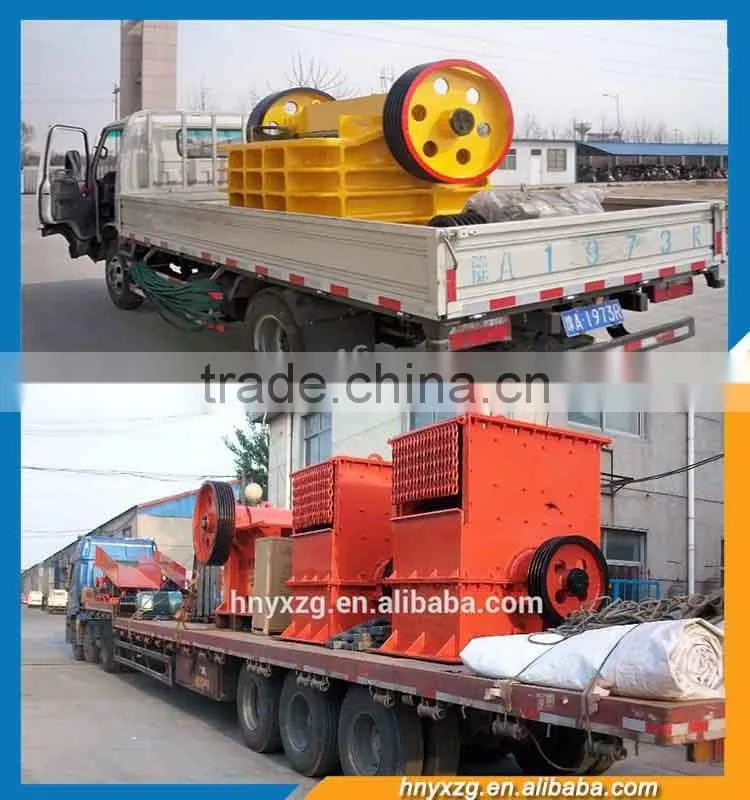

Packing and Delivery of Jaw crusher
|
By sea Freight; MSK/MSC/APL/EMC/WANHAI/KLINE We will remind you before boat arrival |
|
hammer crushers also called hammer mill,is suitable for crushing various hard and brittle materials. Weight:3.5t,0.8t Capacity:5-75t/h More details>>>
Get Quotation |
|
|
Ball mill Yu Xiang's major product, professional technology support and all-around service can be offered to you Weight:37000KG Capacity:0.65-90T/H More details>>>
Get Quotation |
|
wet pan mill mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. Capacity:0.8-1t Weight:5t More details>>>
Get Quotation |
|
Our Service
Pre-sale services:
Act as a good adviser and assistant of clients
Select equipment model;
Design and manufacture products according to clients’ special requirement;
Train technical personnel for clients;
Services during the sale:
Respect clients;considering every aspect and details for our customers
Check products ahead of delivery;
Keep costumers informed about the shipping;
After-sale services:
We promise excellent after-sale service!
Assist client to prepare for the first construction scheme;
Install and debug the equipment;
main the first-line operators on site;
Take initiative to eliminate the troubles rapidly at site;
Provide maintenance for big items;
Gongyi city Yuxiang Heavy Machinery Co,Ltd has established more than 20 years, which is a professional manufacturer and exporter that is concerned with R&D, production, sales and service. In the past 20 years, our mainly product Mining series equipment, Charcoal briquette machine series, Carbonization furnace equipment, Dryer series equipment, Grinding machine series,oil press machine/oil filteration machine etc. We are located in Gongyi city, Henan, China. We will provide convenient transportation including expressway,railway and waterway. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching India, Indonesia, Vietnam, Bangladesh, Pakistan, Sultan, Cambodia, Philippines, Iran, Sri Lanka, Africa, Russia, the United Kingdom, the United States, Brazil, Australia etc. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Welcome to our company any time!!
