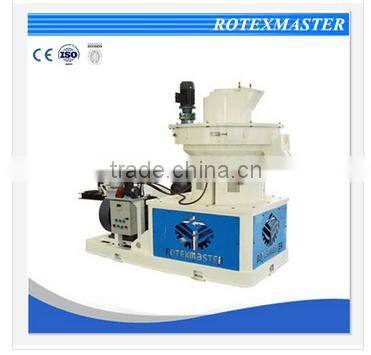

YGKJ series Vertical Ring Die Pellet Mill
Hedy: Tel:+8613165142200 Skype:machine16_2(Hedy huang )
Shandong Rotex Machinery Co., Ltd
1.Technical parameters of YGKJ series Pellet Mill
Model |
Power (KW) |
Diameter (MM) |
Capacity (T/H) |
Measurement (MM) |
Weight (T) |
YGKJ560 |
90+1.5+1.5+0.37+0.55 |
4-12 |
1-1.5 |
2600*1300*2300 |
5.6 |
YGKJ680 |
160+1.5++1.5+0.37+0.55 |
4-12 |
1.5-2.5 |
3300*1500*2300 |
8.5 |
YGKJ850 |
220+3+2.2+0.37+0.55 |
4-12 |
2.5-3.5 |
3800*1830*3080 |
15 |
YGKJ1050 |
315+5.5+1.5+0.37+3 |
4-12 |
4-5 |
4200*2200*3600 |
25 |
2. Description of YGKJ Pellet mill
Vertical Ring Die Pellet Mill is a new biomass fuel production machinery by using crushed sawdust and bran from eucalyptus ,pine ,birch ,poplar fruit and agricultural straw ,bamboo .Compared with the old mill ,it absorbed the essence of horizontal ring die and flat die pellet mill ,solved the insufficient pressure ,die crack problrms of horizontal ring die pellet mill ,and overcame the small capacity ,high failure rate of flat die pellet mill.
3.The fetures of Pellet mill
1)The YGKJ series vertical ring die pellet mill is an ideal dense compression molding equipemnt;
2)Vertical feeding ,directly in pelletizing room ;

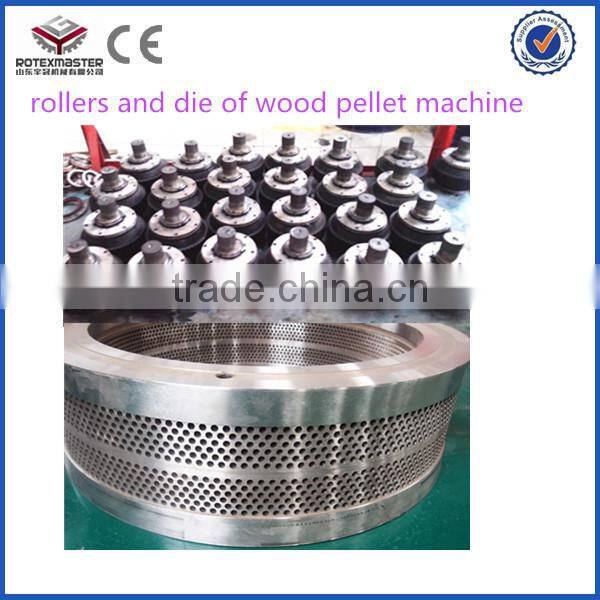

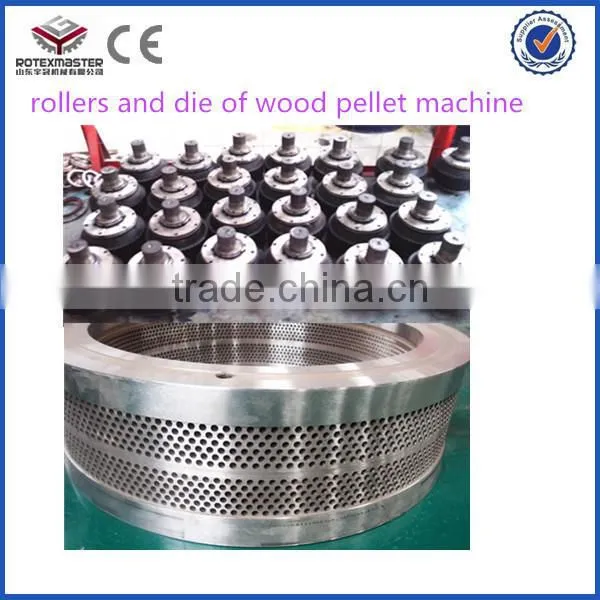

3)Die is static ,rollers rotate ;materials are evenly distributed around pelletizing room because of centrifugal force ,no block;
4)Double-layer die .Two layers both can be used for reduce the cost .High efficiency and save energy ;
5)Ring die and vertical structure are good for cooling the pelletizing room;
6)Independent and frequent conversion discharge device can ensure the formation rate of pellet .
4. Structure of YGKJ series Pellet Mill
5.Services
We are an enterprise of science and technology which combined the scientific research and development ,manufacturing and training ,and international trade.Especially in the energy shortage today,starting from customers' interests,standing in the perspective of customer,consider for the customer,with our professional knowledge ,design more reasonable manufacturing flow and produce much better products .
We have the after-sale service department for provide the best services .Company adhere to the "service ,quality first,brand,reputation first"principle ,to provide customers with the best quality service.
6.Company Information of ROTEXMASTER .
Our products include pellet mill/machine,wood chipper,hammer mill , mixer ,cooler ,dryer , screener ,crusher ,burner etc.
Our company has ISO9001-2000 certification,CE certification ducts cover the environmental carbon, biomass,urban and rural environment,culture & other fields.There are five main series:The biomass compression molding equipment,garbage disposal equipment for urban and rural, organic fertilizer equipment,feed equipment and environmental protection equipment.
