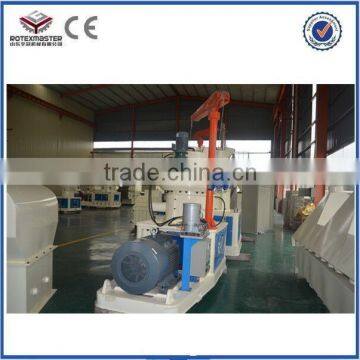

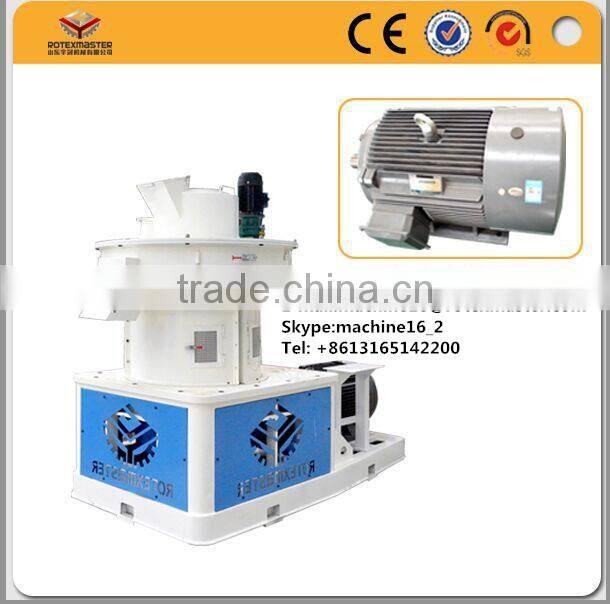

Vertical Ring-Die Pellet Machine
Hedy:Skype:machine16_2 Tel:+8613165142200
Shandong Rotex Machinery Co., Ltd.
1.Technical Parameters Of Vertial Ring-Die Pellet machine
Model |
Power (KW) |
Diameter (MM) |
Capacity (T/H) |
Measurement (MM) |
Weight (T) |
YGKJ560 |
90+1.5+1.5+0.37+0.55 |
4-12 |
1-1.5 |
2600*1300*2300 |
5.5 |
YGKJ680 |
160+1.5++1.5+0.37+0.55 |
4-12 |
1.5-2.5 |
3300*1500*2300 |
8.5 |
YGKJ850 |
220+3+2.2+0.37+0.55 |
4-12 |
2.5-3.5 |
3800*1830*3080 |
15 |
YGKJ1050 |
315+5.5+1.5+0.37+3 |
4-12 |
4-5 |
4200*2200*3600 |
25 |
2.Comparation !!!Vertical Ring die and Horizontal Ring die Difference
|
Vertical Ring Die Pellet Machine |
Horizontal Ring Die Pellet Machine |
|
Die | |
| The die is still, the rollers are rotary, there is a centrifugal force when rollers rotate, and higher presser, higher shaping rate and More beautiful appearance. |
The rollers are still, the die is rotary, lower pressure, the pellets appearance is worse |
|
The die is double layer, and when you use up one side, you can change the other side to continue using, increase the lifetime of the die. |
Only one layer, shorter lifetime. |
|
Feeding Way
| |
|
1.The die is horizontal, and it’s easy to feeding into the materials. The materials can enter the pressing room directly, widely inlet, increase the capacity this way. 2.When feeding into the materials, the materials would be distributed around the die evenly because of the centrifugal force. |
1.The die is vertical, the materials has be fed into pressing room from one side with a compulsive feeding motor, it’s easy to be jammed if couldn’t control the feeding speed well. 2.When feeding into the materials, the materials would focus on the nether area of the die because feeding into from one side, the materials not distribute evenly inside the die this way. |
|
Main Shaft | |
|
The main shaft is vertical, higher torque and stable. The weight of hollow shaft is 1.7t |
The main shaft is horizontal,and the die is surrounded the main shaft, so the shaft has to afford the heavy weight of the die, the main shaft is easy to cut off when worked this way |
|
Motors
| |
|
1.Vertical Ring die Pellet Machine use Four Pole Motor, save electricity. 2.Rotex Master Pellet Machine use Siemens brand motor. |
1.Horizontal Ring die Pellet Machine use Six Pole Motor, high power consumption. 2.Other suppliers always use normal brand motors in China |
| Others | |
|
1.Automatic Lubrication System, it can lubricate for the bearings of the rollers automatically. 2. The device to lift the die. It’s convenient to take out the die and change the die. |
1.The bearings have to be lubricated by hands.
2.It’s similar to change the die . |

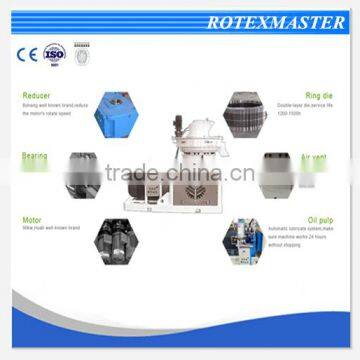

Wood sawdust pellet machine/mill
1.Vertical hopper:This design can avoid the raw material be stuck in granulating room
2.Cooling system:As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened
3.Double-layer dies:This design increase the efficiency of pellet making,reduce clients cost
4.Siemens frequency conversion motor: Sweden famous brand.
5.Bearing:Sweden famous brand, High precision, high speed, low noise, long life
6.Unique automatic lubricating system:Which lubricate the bearing, dies and rollers ,increase
the produce efficiency and reduce energy consumption.It can work continuous 20 hours.
Rotexmaster wood pellet machine & wood pellet production line around the word . Such as Malaysia ,Thailand ,China ,Finland ,Taiwan ,Chile ,Vietnam ,Belgium ,etc.

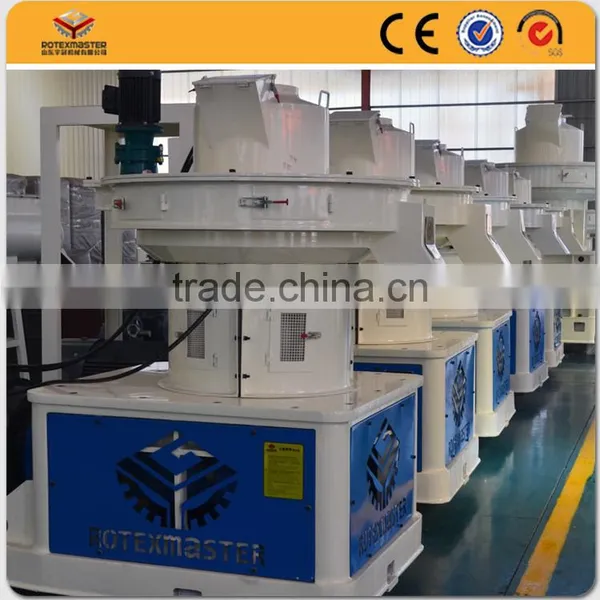

Accessories,workshop ,factory
Siemens Beide Motor
Jiangsu Guomao Reducer
HRB Shaft
Zhengchang mould
The main machine of the pellet production line
Wood chipper ->Rotary dryer ->Hammer mill ->Pellet machine ->Cooler ->Packing machine
1.The material and its moisture content?
Wood sawdust, Pinus Sylvestris,albizzia,eucalyptus,corn straw,peanut shell,palm,rubber wood,rice husk,stalk and so on;
Before wood chips go into the hammer mill,moisture should be less than 30%,
before wood sawdust go into the pellet machines,moisture should between 13%-17%,
but it is not absolutely,customers should according to the material actual situation to confirm.
2.The capacity you want and how long time will the machine work every day?
We have the capacity from 150kg to 30t/hour.
We will according to the working time match related machines for you.
3.The working voltage and power in your local area?
Generally the price what we quote based on 380v,50hz,3phase-power .
Related products besides Wood Pellet Machine/pellet mill from ROTEX
Kindly tell us the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?
