Wood Pellet Mill
1. Wood pellet machines’ brief introduction
This 1-30T/H Complete machine for make pellet wood line can make the pellets from the waste wood , wood chips , rice husk, sunflower husk , coffee husk wheat bran etc . Compared with the old machine ,it absorbed the essence of horizontal ring die and flat die pellet machine ,solved the insufficient pressure ,die crack problems of horizontal ring die pellet machine ,and overcame the small capacity ,high failure rate of flat die pellet machine .The technological process is rational in succession.
It mainly contains crush process,Drying process pellet making process, cooling process, packing process and waste air handing process(optional), The final pellet has good quality and meet the
Europe standard.
The diameter of the pellets can be 4mm, 6mm,8mm,10mm,12mm, the length can be adjusted
according to the requirement of the client, for example 4cm,8cm,12cm ,etc.
2.The Features of Vertical Ring Die Pellet Machine
(1) YGKJ series vertical ring die pellet machine is an ideal dense compression molding equipment
(2) Less investment , Fast return , No risk;
(3) Vertical feeding, directly in pelletizing room;
(4) Die is static rollers rotate ;materials are evenly distributed around pelletizing room because of centrifugal force ;
(5) Double - layer die two layers both can be used for reduce the cost ,high efficiency and save energy.
(6) Ring die and vertical structure are good for cooling the pelletizing room;
(7) Independent and frequent conversion discharge device can ensure the rate of pellet .
3.Technical Parameters of Vertical Ring-Die Pellet Machine
Model | Power (KW) | Diameter (MM) | Capacity (T/H) | Measurement (MM) | Weight (T) |
YGKJ560 | 90+1.5+1.5+0.37+0.55 | 4-12 | 1-1.5 | 2600*1300*2300 | 5.5 |
YGKJ680 | 160+1.5++1.5+0.37+0.55 | 4-12 | 1.5-2.5 | 3300*1500*2300 | 8.5 |
YGKJ850 | 220+3+2.2+0.37+0.55 | 4-12 | 2.5-3.5 | 3800*1830*3080 | 15 |
YGKJ1050 | 315+5.5+1.5+0.37+3 | 4-12 | 4-5 | 4200*2200*3600 | 25 |
4. Commercial Terms of Wood pellet machine :
1. Quantity of Container: The above machines requires container.If you only purchase single
machine , we can use one 20 *container or 40 *container ,If you will buy the wood pellet
production line , we need according to the sections and configurations arrange the containers .
2. Manufacturing time: within 20-60 days
3. Period of validity of the price: within 3 months. After this term, we reserve the right to revise our prices.
4. Time of delivery: In 20-60 days after receipting the deposit. According to our production plan .
5. Payment Terms :30% by T/T advanced payment as down payment,and 70% by T/T before
delivery from factory.
5.FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer
2. Q: How can I get to your company
A: You can get a flight to JiNan (YaoQiang) Airport. We are just about 50mins-1 hours away from Airport. Or take the train or high speed rail to Zhangqiu or JiNan
3. Q: How long is your guarantee?
A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we
will definitely still support you when needed. You will be welcome to contact us with any problem might experience.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the
commissioning and we send one supervising engineer.
If you are interested in our products, please contact me !
Questions of wood pellet machine:
1)The material and its moisture content?
Wood sawdust, Pinus Sylvestris ,albizzia,eucalyptus,corn straw,peanut shell,bamboo ,palm ,
rubber wood,rice husk,stalk and so on;
Before wood chips go into the hammer mill,moisture should be less than 30%,
before wood sawdust go into the pellet machines,moisture should between 13%-17%,
but it is not absolutely,customers should according to the material actual situation to confirm.
2)The capacity you want and how long time will the machine work every day?
We have the capacity from 150kg to 30t/hour.
We will according to the working time match related machines for you.
3)The working voltage and power in your local area?
Generally the price what we quote based on 380v,50hz,3phase.
Related products besides Wood Pellet Machine/pellet mill from ROTEX
Pls kindly tell us the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?
1.Double-layer dies:This design increase the efficiency of pellet making,reduce clients cost
2.Siemens frequency conversion motor: Sweden famous brand.
3.Bearing:Sweden famous brand, High precision, high speed, low noise, long life
4.Cooling system:As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened
5.Unique automatic lubricating system:Which lubricate the bearing, dies and rollers ,increase
the produce efficiency and reduce energy consumption.It can work continuous 20 hours.

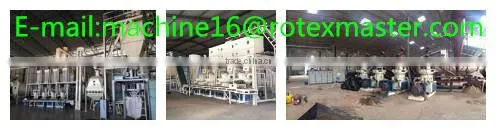

Rotexmaster wood pellet machine & wood pellet production line around the word . Such as Malaysia ,Thailand ,China ,Finland ,Taiwan ,Chile ,Vietnam ,Belgium ,etc.

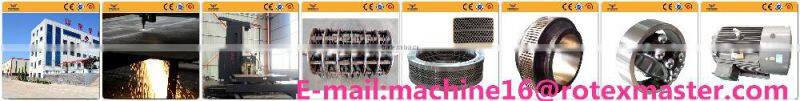

Accessories,workshop ,factory
Siemens Beide Motor / Jiangsu Guomao Reducer / HRB Shaft / Zhengchang mould

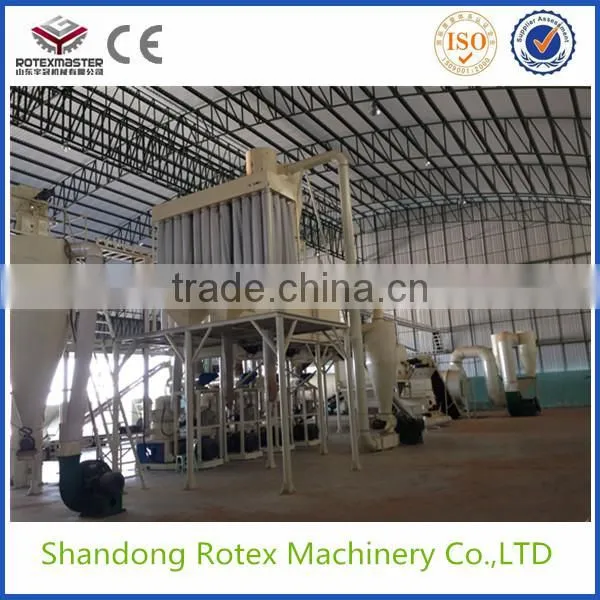

The main machine of the pellet production line

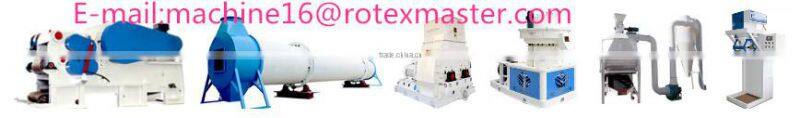

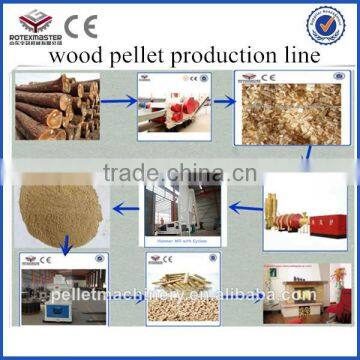

Wood chipper ->Rotary dryer ->Hammer mill ->Pellet machine ->Cooler ->Packing machine
