Specifications
ring die pellet millmaking pellet/briquette
resonable new design
low production power
low maintenance just for die

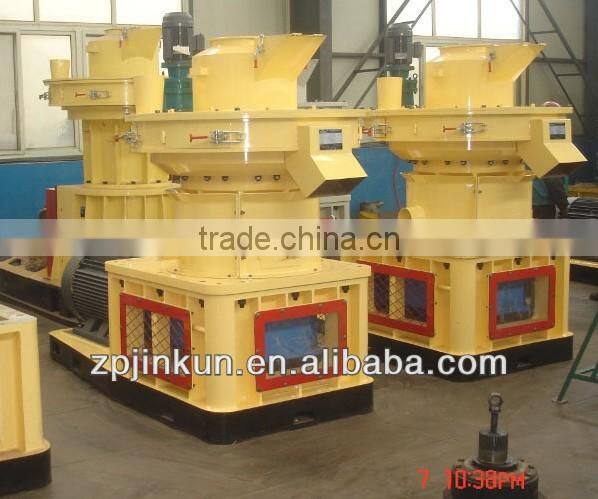

Ring die pellet mill
Jinkun Machinery Co., Ltd is a leading supplier of mechanical pellet mill based in Shandong China. The JK mechanical pellet mill uses innovative technology, providing a significant change in the way wood mass is formed into briquette, resulting in a substantial reduction in production power demand compared to traditional methods, and the mechanical pellet mill can produce both the pellet and the briquette, achieved a multifunction equipment.
Introduction of mechanical pellet mill
1. This mechanical pellet mill is the new type machine, produce the both pellet and the briquette by piston punching.
2. The main motor of the machine is 45 KW, this motor drives a piston to punch the material with 300 tons of impact force, to ensure the density of the pellet/briquette can reach 1-1.3g/cm3.
3. The puncing frequency is 272 times/min, ensure that the capacity of wood pellet/briquette is about 1-1.5T/H with different material.
4. This mechanical pellet mill can fit more kinds of material without changing the die, such as the grass, straw, and all kinds of wood.
5. Wide moisture requirement from 8%-20%, reduced a big power consumption from drying system.
Parameter form of mechanical pellet mill
| Model | Outpyut(t/h) | Power(kw) | Pellet Size(mm) | Weight(t) | Dimensions |
| JK450 | 0.4-0.7 | 55 | Φ4-2 | 2.1 | 1250*100*1600 |
| JK560 | 1-1.5 | 90 | Φ4-12 | 6.1 | 2600*1300*2300 |
| JK580 | 1.5-2.5 | 160 | Φ4-12 | 7 | 2900*1300*2400 |
| JK850 | 2.5-3.5 | 220 | Φ4-12 | 14. | 3300*1400*3100 |
| JK880 | 3-5 | 315 | Φ4-12 | 18 | 3800*1680*3400 |
| JK1050 | 5-8 | 360-450 | Φ4-30 | ||
| JK1250 | 8-12 | 550-660 | Φ4-30 |
Pictures
Technical characteristics of wood pellet mill wood pellet machine
1. Pellet machine wood Briquette machine used in high-yield, low power consumption, diesel engine instead of electrical equipment.
2. Pellet machine wood Briquette machine choose raw materials : materials from the powder to 60mm length, between the moisture content of between 5 - 30% can be processed molding.
3. Pressure roller of Pellet machine wood Briquette machine automatic adjustment feature: materials do not squeeze the corporations, non-boring machine to ensure that the material forming the stable.
4. Disc service life:mold using special steel and is made of special wear-resistant material.
About Service after sale
1. We treat customers as gods, and provide considerate services from shipment to maintenance, include professional free training, guidance, installation,and debugging.
2. After sale, we provide one year's warranty. we will help to solve any mechanical problems in time.
Also engineers are available to service overseas.
