Specifications
wood pellet mill/pellet millwith CE ISO90000Make 4-12mm pellets
ouput:50-4000 kg/h

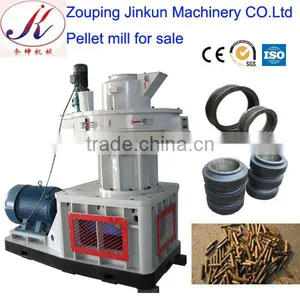

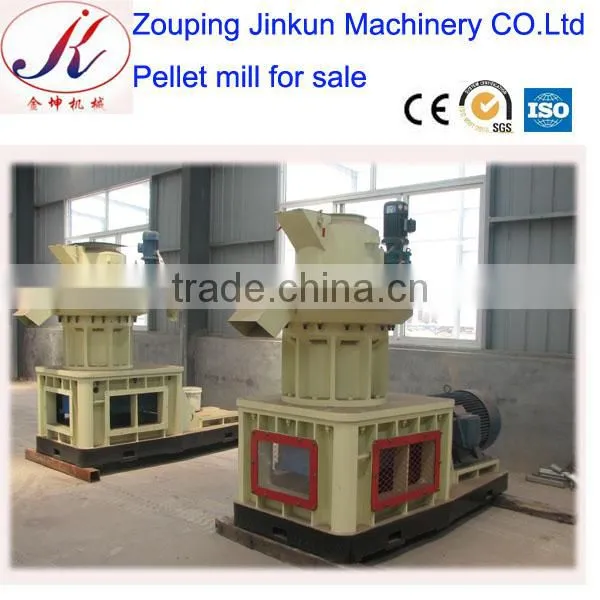

JINKUN wood pellet mill/pellet mill
|
I. JK wood pellet mill/pellet mill Description:
|
|
1. This machine can press biomass or animal feed or fertilizer materials, such as biomass waste from sawdust,rice husk, agricultural stalk,straw,peanut shell,sun flower,paper,plastic, animal feed materials such as grain, soybean,maize, fertilizer materials such as animal manure and plant waste e. c. t
2. It has a high quality in CHINA, adopts Germany technic,has been through CE, SGS, ISO 9001 cetificate.
3. It is especially for home use or to do trail experiment it can press 4-12mm diameter biomass fuel pellet, animal feed pellet and fertilizer pellets.

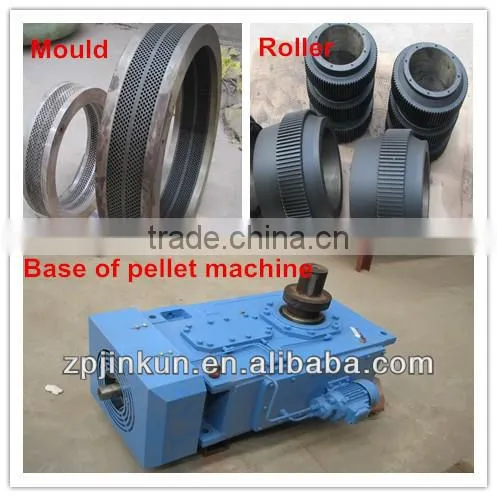

II.JK wood pellet mill/pellet mill Product Features: 1.Vertical die, feeding vertically; No arching of raw materials, easy for heating dissipation.
2.die fixed, rollers rotating, materials centrifugal, evenly distributed around.
3.double-layer dies, up and down dual-use, high capacity, saving energy.
4.Independent lubrication:;high pressure filtration, clean and unblocked.
5.Independent and frequency changeable cutting device, ensure formation rate of pellets.
III. JK wood pellet mill/pellet mill specification: |
| Model | Outpyut(t/h) | Power(kw) | Pellet Size(mm) | Weight(t) | Dimensions |
| JK450 | 0.4-0.7 | 55 | Φ4-2 | 2.1 | 1250*100*1600 |
| JK560 | 1-1.5 | 90 | Φ4-12 | 6.1 | 2600*1300*2300 |
| JK580 | 1.5-2.5 | 160 | Φ4-12 | 7 | 2900*1300*2400 |
| JK850 | 2.5-3.5 | 220 | Φ4-12 | 14. | 3300*1400*3100 |
| JK880 | 3-5 | 315 | Φ4-12 | 18 | 3800*1680*3400 |
| JK1050 | 5-8 | 360-450 | Φ4-30 | ||
| JK1250 | 8-12 | 550-660 | Φ4-30 |
Pictures
