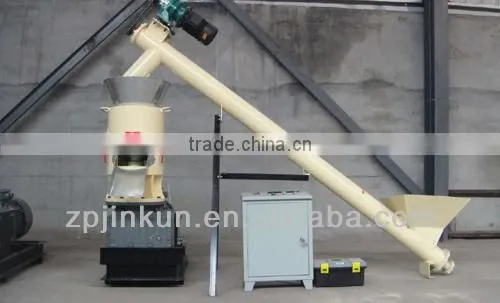

Help CenterWith Hank Dragon Conveyor Small Feed Pellet Pressing Machine
Related Products
-
Minitype Wood Pellet Mill CEUS$ 1 - 200,000MOQ: 1 Set -
1.5-2.5t/h High Output Pellet Manufacturing Mill JK580NegotiableMOQ: 1 Set
-
JINKUN 2-4t/h Complete Pellet Manufacturing Plant JK850US$ 1 - 1,000,000MOQ: 1 Set
-
Aquatic Feed Pellet Making Machine LineUS$ 1,000 - 10,000MOQ: 1 Set
-
Biomass Pelleting Machine for Hot Sale With Cheaper PriceUS$ 1,000 - 10,000MOQ: 1 Set
Specifications
Small feed pressing machine:1.Factory price,ISO,CE
2.Straw.rice dust,sawdust bed,plastic etc.
3.New energy equipment

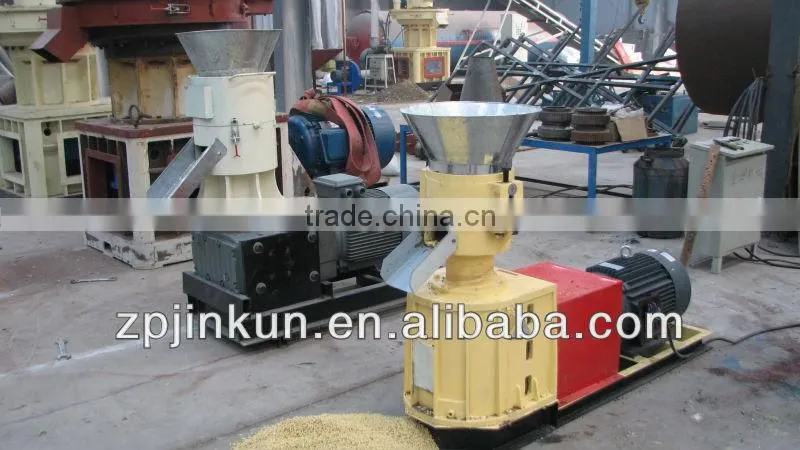

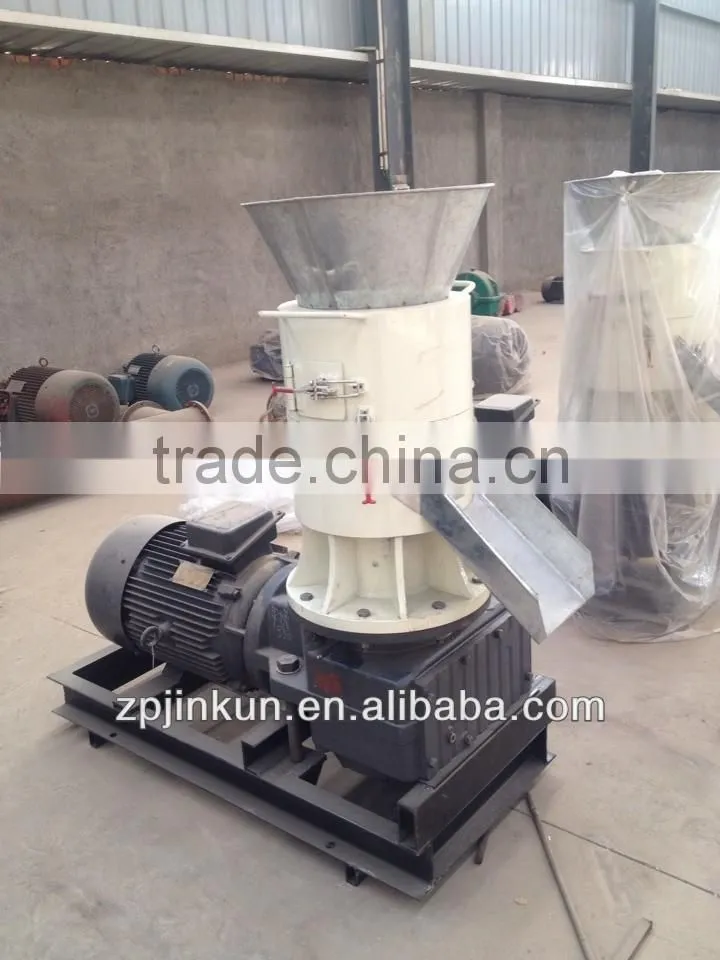

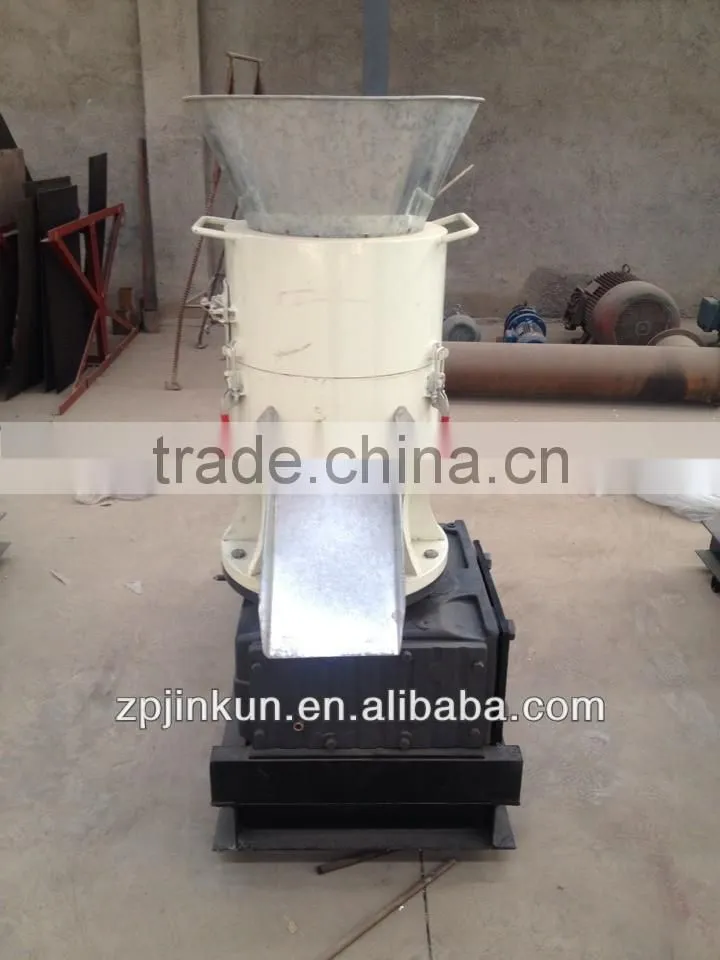

Small feed pellet pressing mill with CE is detailed as follows:
Brief introduction of small pellet mill :
Our company introduces Germanic advanced technology.By continuous improvement and innovation,we successfully invent JK-2-3 series Taper shape rollers and flat die pellet mills,which are specially fit for biomass,fertilizer pellets and brick making.Meeting the international demand of renewable compression biomass energy market.Now the pellet machines are our national patent products.
Specification of pellet mill:
Type |
Output(kg/h) |
Power(kw) |
Standard |
Weight |
Size(mm) |
JK200 |
30-80 |
11-4 |
Φ4-6mm |
0.2t |
1300*500*850 |
JK250 |
80-120 |
15-4 |
Φ4-6mm |
0.5t |
1400*600*1000 |
JK300 |
100-300 |
30-4 |
Φ4-8mm |
0.76t |
1860*670*1600 |
JK2-350A |
300-600 |
37-4 |
Φ4.5-10mm |
2.2t |
1900*850*1750 |
JK2-450A |
500-800 |
55 |
Φ4.5-10mm |
4.3t |
2300*1100*1900 |
JK3-550A |
1000-1500 |
90-6 |
Φ4.5-12mm |
5.5t |
2350*1000*2050 |
JK2-800 |
1500-2500 |
130-160 |
Φ4.5-12mm |
6.8t |
3200*1235*2700 |
JK3-1200 |
3000-5000 |
280-320 |
Φ4.5-15mm |
19t |
3800*1700*4200 |
Application of ring die pellet mill:
The equipments is applied to the material with low adhesiveness and low shaping.

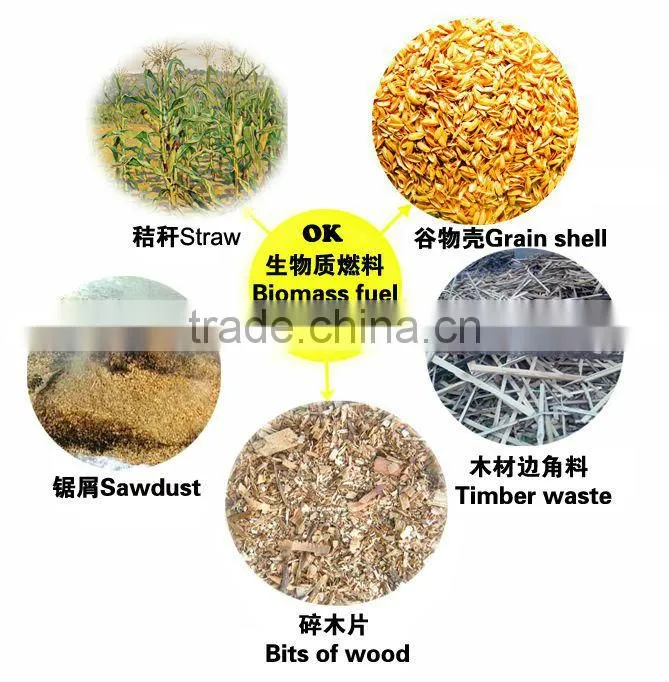

Material:rice husk,sunflower seed husk,peanut shell and other fruit shell;branch,trunk,bark and other wood waste;a variety of corp straws,rubber,cement,ash and other chemical material.
Industry:It is used in the biomass energy fuels plant,power plant,wood processing plant,fertilizer plant,chemical plant etc.It is the ideal pressing shaping equipments with low
Main feature of pellet mill:

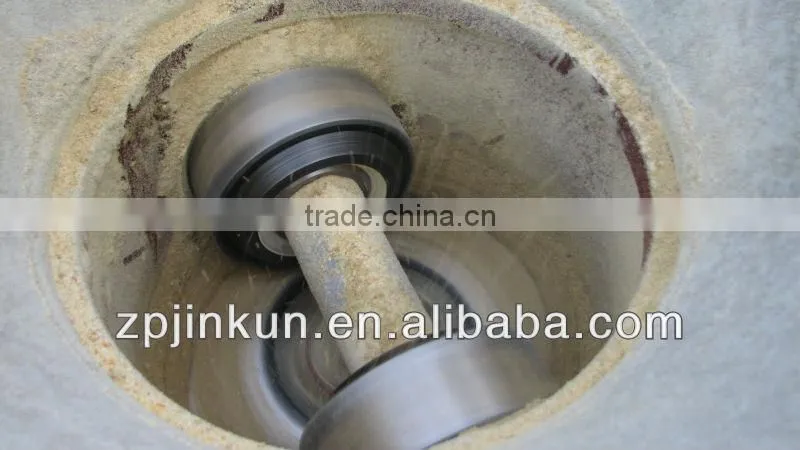

1.the “taper shape” rollers make their ends rounding linear speed consistent with flat die,so it avoids dislocated friction which maybe created between rollers and die.In this way,it can reduce friction and save much energy consumption,lengthen die and roller life.
2.We adopt pressure and adjusting systems by hydraulic pump or controlling center vertical shaft as well as its assistant adjusting equipments.In this way,it can adjust pressure between rollers and flat die to fit for different pressure ratio materials,ensuring the pallet density.
3.Body of rollers are large and groove is broad.
4.Machine adopts high pressure filtration and lubricating systems.
About the different output:
Name Card:
