Home > Products > Vibrating feeder > GZD-960*3800 Chinese manufacturer Stone vibrating feeder

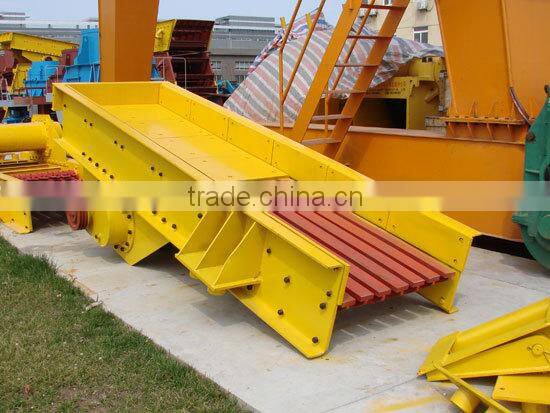

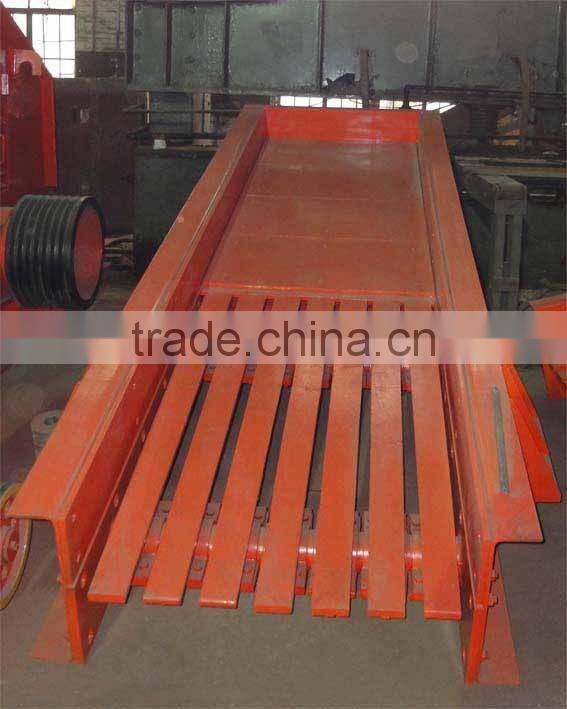

GZD-960*3800 Chinese manufacturer Stone vibrating feeder
- 40 Set / Sets per Month
- Shanghai Qingdao Dalian Shenzhen
- T/T L/C Credit Card PayPal
Product Details
Condition: | New | Application: | Stone, Coal, Ore, Mine | Power Type: | Electric |
Capacity(t/h): | 120-210t/h | Place of Origin: | Henan, China | Brand Name: | Hongyun |
Model Number: | GZD-960*3800 | Power(W): | 11kw | Dimension(L*W*H): | 3850*1950*1630mm |
Weight: | 3980kg | Certification: | CE ISO | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |

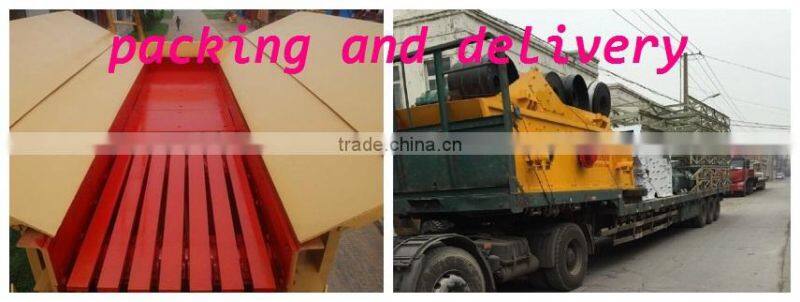

Packaging Details
Stone vibrating feeder uses standard export containers, nude packing for main machine, plywood box for spare parts or the package of the stone vibrating feeder can be according to customers' requirements.
Product Description
Stone vibrating feeder models
Type | Size of funnel(mm) | Max.Feeding size(mm) | Capacity(t/h | Power(kw) | Weight(kg) | Overall dimension(mm) |
GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
Stone vibrating feeder application
Stone vibrating feeder can be used in concert with different types of crushers, screening and classificatory equipment and drying equipments, etc.
Now, it is widely used in sand making industries, mineral processing, ore milling, coal industries, metallurgy, chemistry and so on.
Stone vibrating feeder advantages
1. Using the vibrator with eccentric block, to improve the vibration amplitude of the equipment and to make the conveying fast and smooth. At the same time, the larger vibration amplitude can do screening of materials to reach the effect of one machine dual use.
2. Choosing frequency control of motor to adjust the vibrating frequency to change the flow and speed of vibrating feeding, easier operation.
3. Special design about grid can prevent the phenomenon of clogging. Because of unfixed space among grids, the grids can be adjusted based on materials’ size to reach the best effect of conveying.
Company Profile
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme.
Gongyi Xiaoyi Hongyun machinery factory has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and face customers with highly dedicated spirit. It is constantly rated "advanced quality management enterprise" and "value-contract and keep-credibility enterprise" for many years.
We has been keeping the attitude that only customers are satisfied, can we are satisfied to keep pace with the times. We have many skilled technical persons and experienced after-sales service team, so we can offer customers a full of crushing screening from monomer to solutions. And we can provide customers with professional technology support, reliable supply of spare parts and high quality of after-sales service.
