Hot Saling Export Overseas Mining Machinery Vibrating Feeder

Hot Saling Export Overseas Mining Machinery Vibrating Feeder photo-1

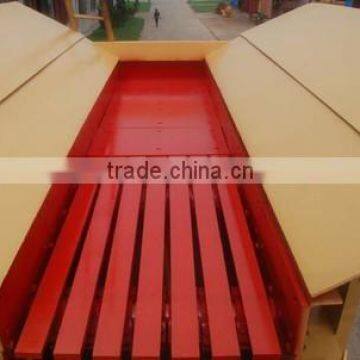

Hot Saling Export Overseas Mining Machinery Vibrating Feeder photo-2

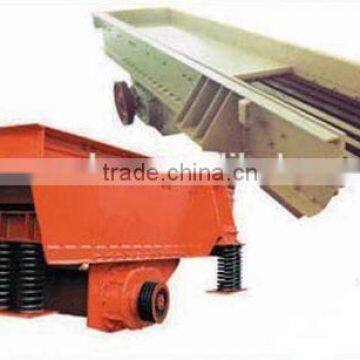

Hot Saling Export Overseas Mining Machinery Vibrating Feeder photo-3
US$ 10,700 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Sand making, mineral processing, ore milling, coal milling, etc.
Power Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Guangzhou Shenzhen Dalian Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Sand making, mineral processing, ore milling, coal milling, etc.
Power Type Electric
Capacity(t/h) 120-210 t/h
Place of Origin Henan, China
Brand Name Hongyun
Model Number GZD-960*3800
Power(W) 11000
Dimension(L*W*H) 3850*1950*1630 (mm)
Weight 3980 kg
Certification CE, ISO
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas



Hot saling export overseas mining machinery vibrating feeder



Application



    Vibrating feeder is widely used in sand making, mineral processing, ore milling, coal milling, metallurgical engineering, chemical engineering, etc.



Hot saling export overseas mining machinery vibrating feeder

Working principle

      Hot saling export overseas mining machinery vibrating feeder



    There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed.

The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical

force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When

materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the

slope surface of the feeder.




Hot saling export overseas mining machinery vibrating feeder

Hot saling export overseas mining machinery vibrating feederHot saling export overseas mining machinery vibrating feeder

Advantages

   Hot saling export overseas mining machinery vibrating feeder

1, Quickly and smoothly transportationthat makes the transportation


2,The Special design of article grid can prevent the phenomenon of materials clogging during transportation.



3,High efficiency and low energy consumption.



Reference type

  Hot saling export overseas mining machinery vibrating feeder

ModelGZD-960*3800GZD-1100*4200GZD-1100*4900GZD-1300*4900
Power(kw)11151522
Dimension(mm)3850*1950*16304400*2050*16605200*2050*17005200*2350*1750
Weight(kg)3980417045205200
Capacity(t/h)120-210200-430280-500450-600
Funnel size(mm)960*38001100*42001100*49001300*4900
Max feeding(mm)500580580650
