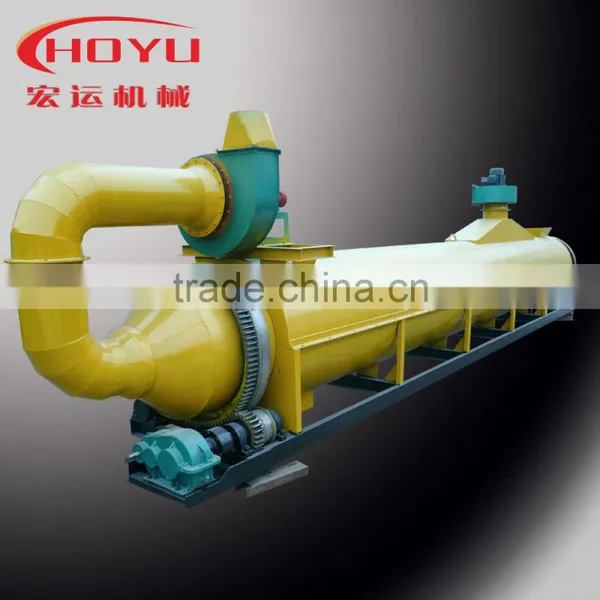

Application of Sand dryer
Sand dryer is widely used in building materials, metallurgy,mineral processing,chemical industry,cement, casting and other industries. It can drying high wet and high gravity materials, such as kinds of sand, dry-mixed mortar, cement slag, clay, coal gangue, mixture, fly ash, gypsum, iron powder, limestone, coal, ore, Lan carbon and so on.
Structure characteristics of Sand dryer
According to customers’ demand, Gongyi city Xiaoyi Hongyun machinery factory can design different gas generator and combustor with elevator, belt conveyor, quantitative feeder, cyclone dust collector, draught fan and other related devices.
Performance characteristics of Sand dryer
The sand dryer’s investment of Gongyi Hongyun factory is just 20% of imported products. It is made of high quality material which is 3-4 times wear-resisting than ordinary material. It can dry the material with 15% moisture and the ultimate moisture can under 0.5%-1% so that it is the preferred drying equipment for enterprise. This device can improve above 40% thermal efficiency than traditional devices. In the process, there is no air leakage with rigorous sealing. It also has good heat preservation system, the temperature of outer barrel is under 60℃, exhaust gas temperature is under 120℃, out-feeding temperature falls below 60℃.The discharging can be packed directly to reduce the comprehensive energy consumption greatly.
Technical parameters of Sand dryer
Model |
Gradient (%) |
Rotate speed (r/min) |
Maximum inlet temperature (℃) |
Power (kw) |
Production capacity (t/h) |
Notes |
HY-600 |
3-5 |
3-8 |
≤700 |
3 |
Based on the moisture content |
The production relates to the heating methods |
HY-800 |
3-5 |
3-8 |
≤700 |
4 |
||
HY-1000 |
3-5 |
3-8 |
≤700 |
4 |
||
HY-1200 |
3-5 |
3-8 |
≤700 |
5.5 |
||
HY-1500 |
3-5 |
2-6 |
≤850 |
11 |
||
HY-1800 |
3-5 |
2-6 |
≤850 |
15 |
||
HY-2000 |
3-5 |
1.5-6 |
≤850 |
18.5 |
||
HY-2200 |
3-5 |
1.5-6 |
≤850 |
22 |
||
HY-2400 |
3-5 |
1.5-5 |
≤850 |
22 |
||
HY-2600 |
3-5 |
1.5-5 |
≤850 |
30 |
||
HY-2800 |
3-5 |
1.5-5 |
≤850 |
37 |
||
HY-3000 |
3-5 |
1.5-5 |
≤850 |
45 |
||
HY-3200 |
3-5 |
1.5-5 |
≤850 |
55 |
||
HY-3400 |
3-5 |
1.5-5 |
≤850 |
75 |
||
HY-3600 |
3-5 |
1.5-5 |
≤850 |
90 |
