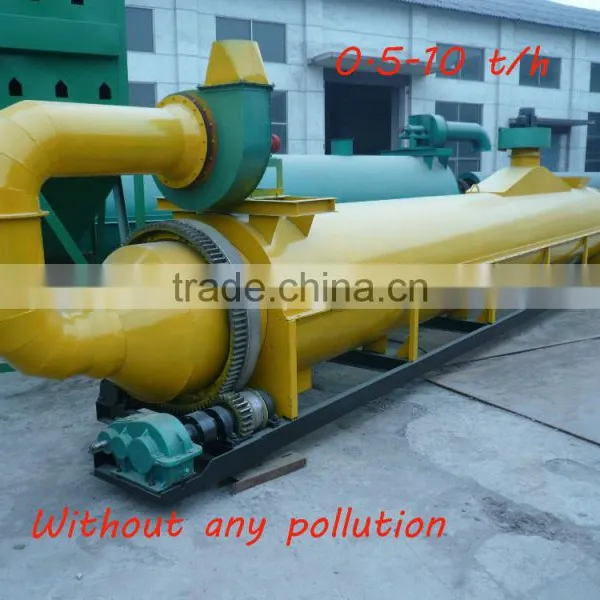

HY-1060 special low temperature drying, sawdust dryer for sale
- 50 Set / Sets per Month
- Shanghai Tianjin Dalian Qingdao Shenzhen
- T/T L/C Credit Card PayPal
- Hot sale in China, widely use in sawdust, sand and coal drying machines
- Without any pollution, Small sawdust dryer
- Providing overseas engineer services and low consumption used rotary sand dryer | Silica sand dryer
- 30t/h, sawdust and sand dryer
- 2-200 TPD and no pollution mini corn dryer
- Low crackle rate stainless steel quartz sand dryer with no pollution
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Hongyun | Model Number: | 1060 | Power(W): | 3kw-90kw |
Dimension(L*W*H): | 8500*1600*2300 | Weight: | 12t-13t | Certification: | CE ISO9001 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Sawdust dryer for sale uses standard export containers, nude packing for main machine, plywood box for spare parts or the package of the sawdust dryer for sale can be according to customers' requirements.
Product Description
Application:
Sawdust dryer for sale can dry high wet and high gravity materials, such as kinds of sand, dry-mixed mortar, cement slag, clay, coal gangue, mixture, fly ash, gypsum, iron powder, limestone, coal, ore, Lan carbon and so on.
Structure characteristics:
Sawdust dryer for sale is based on customers’ demand, and designed the gas generator and combustor with elevator, belt conveyor, quantitative feeder, cyclone dust collector, draught fan and other related devices.
Working principle:
Sawdust dryer for sale is carried by belt conveyor or bucket elevator to the hopper, and then go through the feeding pipe into the feed end by charger.
Sawdust dryer for sale cylinder is a slightly tilted cylinder with the horizontal line. Material is added from high end and heating medium is added from the low end to become countercurrent contact with material. Materials run to the bottom by gravity with the rotation of cylinder, heating medium give wet material heat directly or indirectly to make them to dry. At the end, the material is sent out by belt conveyor or screw conveyor at the discharger end.
Performance characteristics:
The investment is lower 20% than imported products.
The wear-resisting of material is 3-4times than ordinary material.
This device can improve above 40% thermal efficiency than traditional devices.
The moisture can under 0.5%-1%
Rigorous sealing.
It also has good heat preservation system, the temperature of outer barrel is under 60℃, exhaust gas temperature is under 120℃, out-feeding temperature falls below 60℃.
The discharging can be packed directly to reduce the comprehensive energy consumption greatly.
Model | HY-1060 | HY-1290 | HY-1590 | HY-2090 |
Tube length(m) | 6 | 9 | 9 | 9 |
Inside diameter length(m) | 1 | 1.2 | 1.5 | 2 |
Speed(r/min) | 3--5 | 3--5 | 3--5 | 3--5 |
After drying moisture | Under 10% | Under 10% | Under 10% | Under 10% |
Power(kw) | 12 | 18.7 | 16 | 30 |
Gradient | 3%-5% | 3%-5% | 3%-5% | 3%-5% |
Dimension(mm) | 8500*1600*2300 | 11500*1800*2600 | 11500*2100*2950 | 11500*2700*3300 |
Weight(t) | 6 | 10 | 14 | 20 |
Company Profile
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme.
Gongyi Xiaoyi Hongyun machinery factory has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and face customers with highly dedicated spirit. It is constantly rated "advanced quality management enterprise" and "value-contract and keep-credibility enterprise" for many years.
We has been keeping the attitude that only customers are satisfied, can we are satisfied to keep pace with the times. We have many skilled technical persons and experienced after-sales service team, so we can offer customers a full of crushing screening from monomer to solutions. And we can provide customers with professional technology support, reliable supply of spare parts and high quality of after-sales service.
