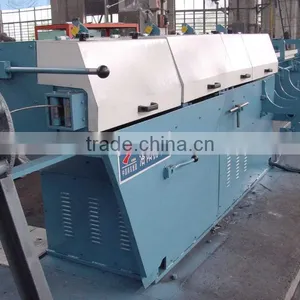

Hydraulic straightening and cutting machine

Name: Hydraulic straightening and cutting machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Details

Type:	Other, Straightener & Cutter	Use:	Bar	Place of Origin:	Henan, China
Model Number:	GT

This machine is specially designed for straightening and cutting steel bars

GT series High-efficiency steel bars straightening cutting machine
Performance of straightening and cutting machine		Unit		Model of straightening and cutting machine
Performance of straightening and cutting machine		Unit	GT3/10	GT5/10	GT6/12	S-GT6/12	GT8/14	GT12/16
Diameter of straightened and cut steel bar	Disc and cold rolled ribbed steel bars	mm	φ3-φ10	φ5-φ10	φ6-φ12	φ6-φ12	φ8-φ14	φ12-φ16
	HRB335 hot rolled ribbed Class Ⅱ Disc deformed steel bars	mm	φ3-φ8	φ5-φ8	φ6-φ10	φ6-φ12	φ8-φ14	φ12-φ16
	HRB400 hot rolled ribbed Class Ⅲ Disc deformed steel bars	mm	φ3-φ8	φ5-φ8	φ6-φ10	φ6-φ12	φ8-φ14	φ12-φ16
	500 cold rolled steel bars		φ3-φ8	φ5-φ8	φ6-φ10	φ6-φ12	φ8-φ14	φ12-φ16
Straightening and cutting dimensioning length		m		1——12(Can be lengthened)
Straightening and cutting speed(variable speed,with three-step speed)		m/min	70-100-130
Linearity the steel bars after straightening and cutting		mm/m	≤2
Dimensioning accuracy of straightening and cutting		mm	≤±1
Total installed power		Kw	18.5+4	18.5+4	22+4	30+4	37+4	45+4
