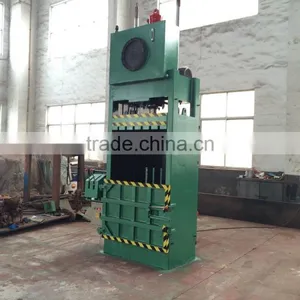

FYD630(fast)vertical Hydraulic Baling Press Machine
US$ 12,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
chuangda
Model Number:
FYD630
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Engine Crusher MachineUS$ 30,000 - 50,000MOQ: 1 Piece -
Container Turnover MachineUS$ 35,000 - 50,000MOQ: 1 Piece
-
Hydraulic Straightening and Cutting MachineNegotiableMOQ: 1
-
New Design Metal Shearing Machine (Q08-63)US$ 4,000 - 6,000MOQ: 1 Set
-
Hydraulic Metal Shear/metal Shear/alligator (FJD-4000)US$ 28,000 - 32,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
chuangda
Model Number
FYD630
Our factory has good quality machining equipments,aduanced technology,sictific management system,can supply advance technology and stable quality and service to all clients.
FYD630(fast)vertical hydraulic baling press main technical parameters
| Sr.no | Type name | UNIT | Model or parameters |
| 1 | Nominal pressure | KN | 630 |
| 2 | Inner diameter of MAIN DYLINDER | mm | φ180 |
| 3 | The piston roddiameter | mm | φ120 |
| 4 | Stroke | mm | 1200 |
| 5 | Block out cylinder pressure | KN | 100 |
| 6 | Block out cylinder inner diameter | mm | φ80 |
| 7 | The piston roddiameter | mm | φ45 |
| 8 | Block out cylinderstroke | mm | 770 |
| 9 | Pressing Head size | mm | 1062*760 |
| 10 | material box size | mm | 1066×762×1600 |
| 11 | Final block size | mm | 1066×762×400-800 |
| 12 | Motor model | Y132M-4 | |
| 13 | motor power | KW | 7.5KW(3PH,415V/50Hz) |
| 14 | Oil pump model | 40YCY14-1B | |
| 15 | The system maximumpressure | Mpa | 20 |
| 16 | Max distance from pressing head to working table | mm | 1600 |
| 17 | Mode of operation | Manual reversing valve operation | |
| 18 | Strapping way | Manual bundle | |
| 19 | line | pcs | 6 |
| 20 | Machine structure | Frame structure | |
| 21 | Bale out way | Push bale | |
| 22 | Machine overall dimension | mm | 1800*1950*3900 |
| 23 | Oil tank capacity | 300L | |
| 24 | Loading | 1*20GP |
|
