1.Brief introduction:

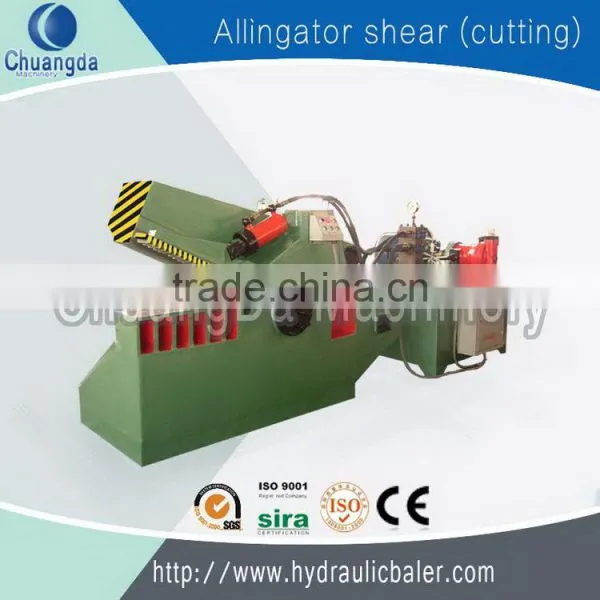

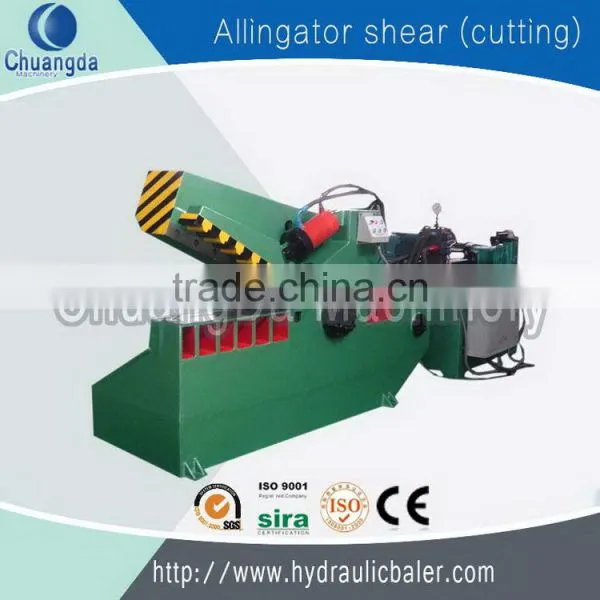

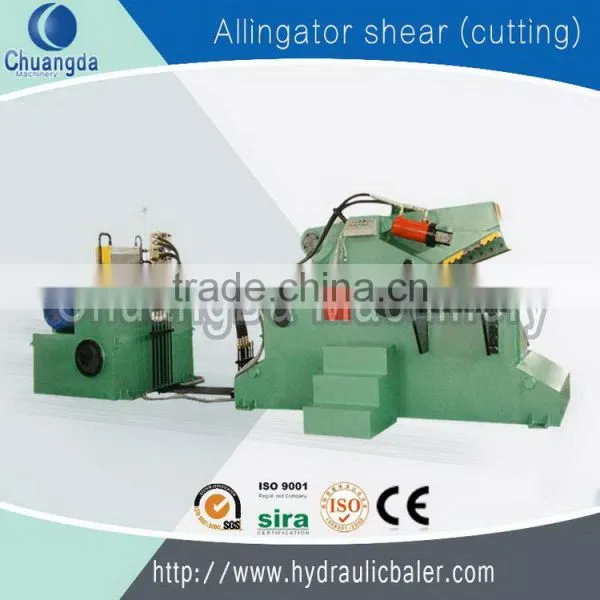

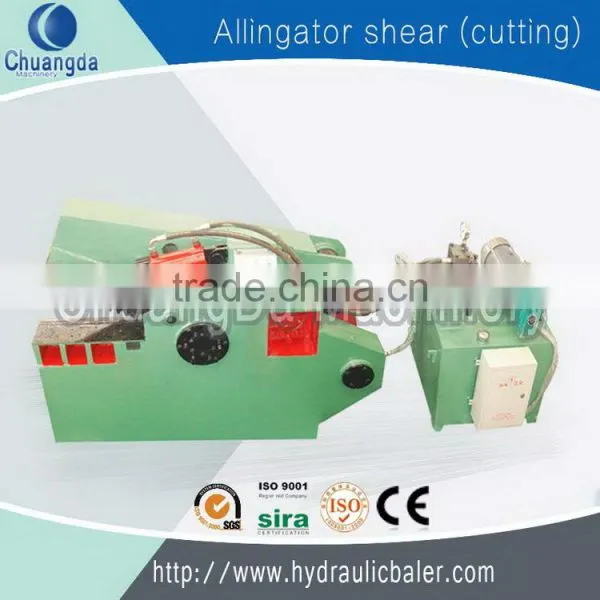

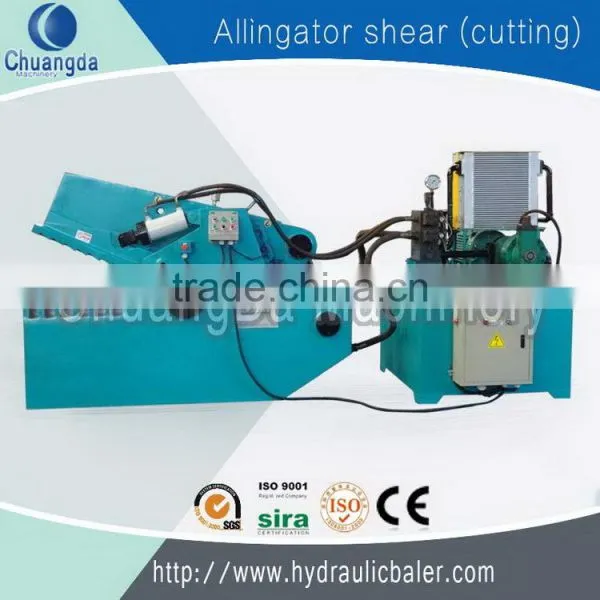

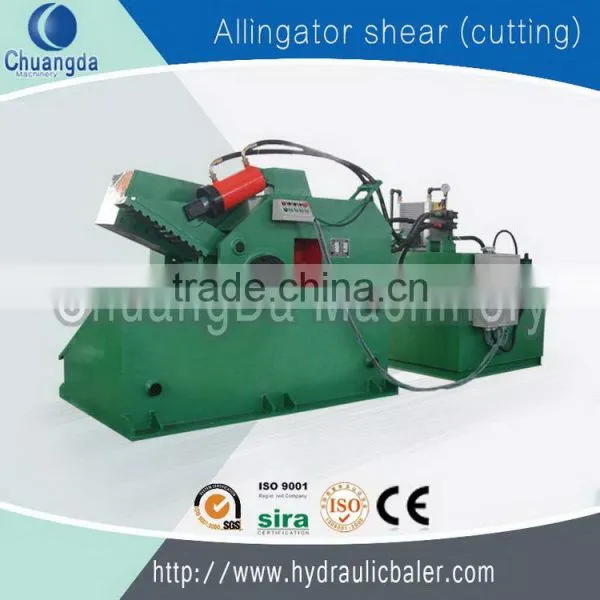

This Hydraulic metal shear/metal shear/alligator is used for cold shearing of various sectional shape metal and cutting of various sepcified lengths of steel in rolling mill.It's designed with quick unit which can double the shearing speed.Improving 50% working efficiency and saving 50% electricity.
2.Characteristic:
1. It applies a hydraulic drive and pre-pressing unit and it is safe and reliable.
2. Two operation modes, that is, manual and automatic modes, are available.
3. Operating knife edge lengths come in many specifications, that is, 600mm, 800mm,1000mm ect.
3.Specification:
Model |
Max. Cutting Force(ton) |
Blade Length (mm) |
Shear Opening (mm) |
Max. Cutting Size (mm) |
Shearing Frequency (times/min) |
Motor(KW) |
Q08-63 |
63 |
600 |
320 |
20*200 |
14-25 |
7.5 |
Q08-100 |
100 |
600 |
320 |
30*200 |
14-25 |
7.5 |
Q08-125 |
125 |
600 |
320 |
30*250 |
12-25 |
11 |
Q08-160A |
160 |
600 |
340 |
30*320 |
11-25 |
15 |
Q08-160B |
160 |
700 |
380 |
30*320 |
11-25 |
15 |
Q08-160C |
160 |
800 |
420 |
30*320 |
11-25 |
15 |
FJD-2000 |
200 |
800 |
400 |
30*400 |
12-20 |
18.5 |
FJD-2500 |
250 |
800 |
420 |
30*500 |
11-20 |
22 |
FJD-2500A |
250 |
1000 |
440 |
30*500 |
11-20 |
22 |
FJD-3150 |
315 |
1000 |
440 |
30*650 |
8-15 |
30 |
FJD-4000 |
400 |
1200 |
500 |
30*800 |
7-15 |
37 |
FJD-6000 |
600 |
1600 |
700 |
40*800 |
5-12 |
45 |
