Specifications
be suitable for cutting scrap material,especial for scrap car,
pre-compress and cut scrap
cut bars and profiles

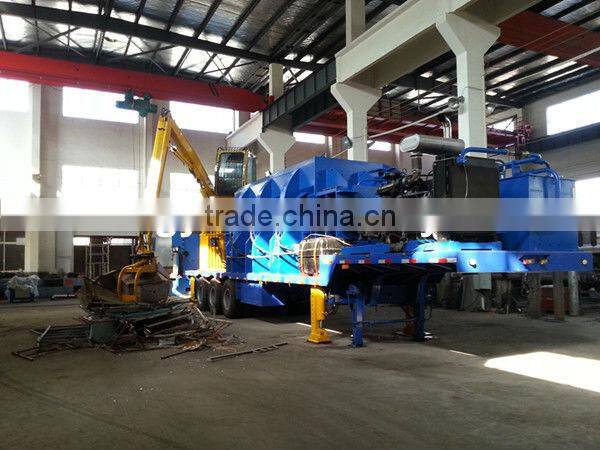

compress & shear integral machine for scrap car
No. | Technical Specification | Remark | ||||||||
1 | Cutting Cylinder | Model | YG400/280-650 | stroke | 650mm |
| ||||
Max. Force | 4000KN | Quantity | 1piece |
| ||||||
2 | Press Cylinder | Model | YG220/160-600 | Stroke | 600mm |
| ||||
Max. Force | 1050KN | Quantity | 1piece |
| ||||||
3 | Side Press Cylinder (Grade one) | Model | YG200/140-480 | Stroke | 480mm |
| ||||
Max. Coving Force | 800KN*2 | Quantity | 2 pieces |
| ||||||
4 | Side Press Cylinder (Grade two) | Model | YG200/140-480 | Stroke | 480mm |
| ||||
Max. Pushing Force | 800KN*2 | Quantity | 2pieces |
| ||||||
5 | Material Pushing Cylinder | Model | YG200/140-4800 | Stroke | 4800mm |
| ||||
Max. Pushing Force | 800KN | Quantity | 1 piece |
| ||||||
6 | Press Box Size(L*W*H)
| 5000*1600*900mm |
| |||||||
7 | Bale Size(L*W*H)
| 700*500mm |
| |||||||
8 | Hydraulic System Pressure | 25 MPa |
| |||||||
9 | Total Motor | 110KW |
| |||||||
10 | Power | 380V/3PH,50Hz |
| |||||||
11 | Blade Length | 800mm |
| |||||||
12 | Shearing Frequency (times/min) | 3-5 time/min |
| |||||||
13 | Capacity(Ton/Hour) | 4-12 |
| |||||||
14 | Max Cutting Force (material Tensile Strength no more than 440MPa) | Round TeelΦ120mm |
| |||||||
Billet 110*110mm | ||||||||||
Steel Plate 50*600mm | ||||||||||
15 | Motor | Model | Y200L2-6 | Nominal Power | 55KW |
| ||||
Nominal Speed | 970rmp | Quantity | 2 pieces |
| ||||||
16 | Hydraulic Pump | Model | 250YCY14-1B | Nominal Pressure | 31.5MPa |
| ||||
Nominal Outflow | 250ml/r | Quantity | 2 Pieces |
| ||||||
17 | Equipment Outline Dimension
| 11300*2800*3500(Flank Expansion) | L*W*H | |||||||
11300*2200*3500mm(Flank Collapsed) | L*W*H | |||||||||
18 | Floor Space | 14000*4000mm | L*W | |||||||
19 | Control System | PLC Automatic Control |
| |||||||
20 | Cooling System | Oil - steam heat exchanger
|
| |||||||
