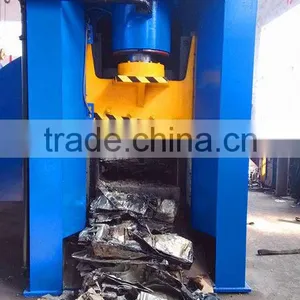

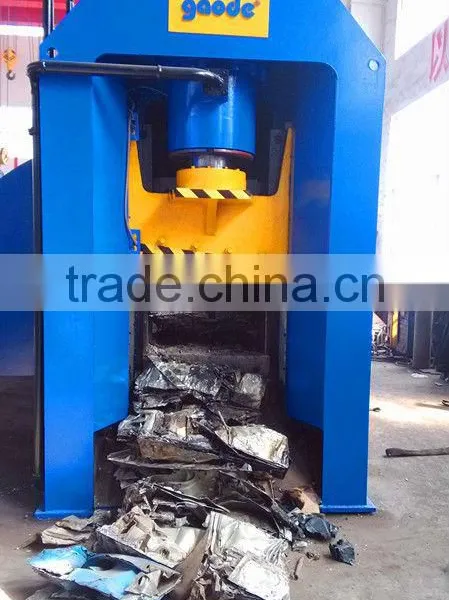

HBS-4000 Scrap Metal Baler and Shear

Name: HBS-4000 Scrap Metal Baler and Shear
Brand: gaode
SKU: 141042184
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

gaode

Jiangsu Gaode Hydraulic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name gaode

Model Number HBS-4000

Voltage 380

Rated Power 90KW

Dimension(L*W*H) none

Weight none

Certification ISO9001

Warranty 6 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Safe & reliable
2.No footing bolts needed
3.Diesel engine can be equipped for power

HBS-4000 hydraulic metal baler and shear

No	Technical specification						Remark
1	Shear cylinder	Model		YG450/340-666			1set
		Nominal pressure		4000KN	Trip	666
2	Shear cylinder	Model		YG160/100-560			2set
		Nominal pressure		500KN×2	Trip	560M
3	First class cylinder	Model		YG200/140-368			3set
		Nominal pressure		1000 KNx3	Trip	368MM
4	Second class cylinder	Model		YG200/140-574			3set
		Nominal pressure		1000KN*3	Trip	574MM
5	Feed cylinder	Model		YG200/140-5010			1set
		Nominal pressure		1000KN	Trip	5010MM
6	Press box size(L×W×H)(MM)				500020001250
7	Bale size(L×W×H)(MM)				700*500
8	Working pressure system				25Mpa/20Mpa
9	Shear length/min shear open				830MM/500MM
10	Press material length/max press open				770MM/560MM
11	Motor				95.5KW
12	Electric				380V/3HP 50HZ
13	Shear degree				10
14.	Shear time				3time/min
9	Motor	Model	Y3 225M-4		Power	45KW
		Speed	1480R/MIN		Quantity	2set
10	Oil pump	Model	OSA7V		pressure	40Mpa
		Oil flow	160ml/r		Quantity	2set
11	Cooling system	Model	Separate cycle system
