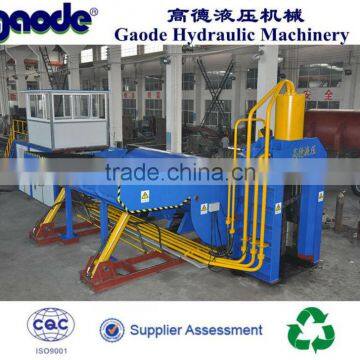

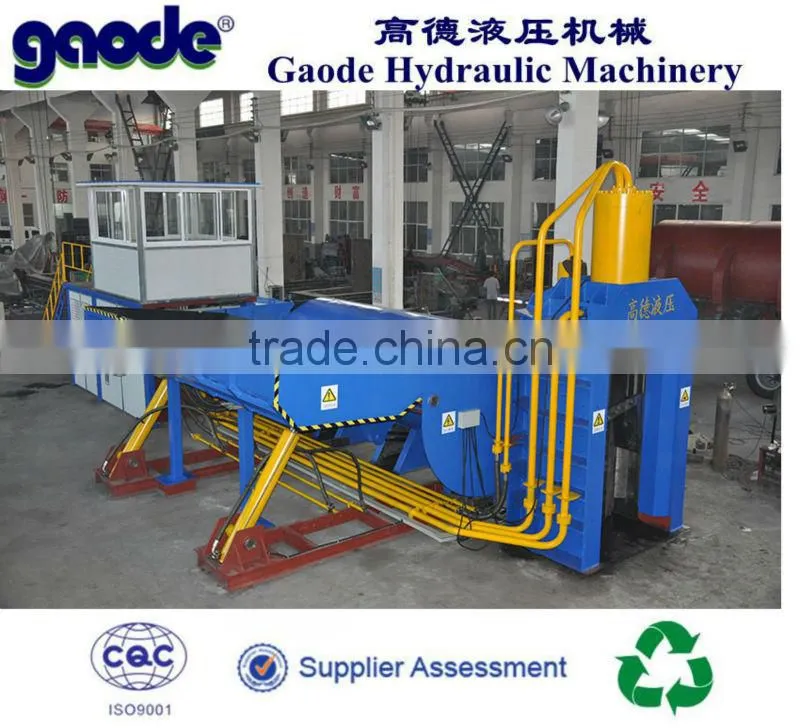

Help CenterHuge OEM Classic Fashion Waste Metal Hydraulic Baler&shear
Related Products
-
HBS-4000 Scrap Metal Baler and ShearNegotiableMOQ: 1 Set -
HBS-630 Hydraulic Scrap Metal Processing Baler and Shear MachineUS$ 20,000 - 100,000MOQ: 1 Set
-
Automatic Mobile Car Bodies Baling Shearing MachineUS$ 120,000 - 150,000MOQ: 1 Set
-
Large-scale Hydraulic Metal Iron Aluminum Scrap Metal Shear BalerNegotiableMOQ: 1 Set
-
Large-scale Hydraulic Two Wings Scrap Metal Baler and ShearNegotiableMOQ: 1 Set
HBS hydraulic baler&shear machine
HBS-3150 hydraulic metal baler and shear
No |
Technical specification |
Remark |
|||||
1 |
Shear cylinder |
Model |
YG400/280-700 |
1set |
|||
Nominal pressure |
3150KN |
Trip |
700 |
||||
2 |
Shear cylinder |
Model |
YG220/160-550 |
1set |
|||
Nominal pressure |
1000KN×2 |
Trip |
550M |
||||
3 |
First class cylinder |
Model |
YG200/140-395 |
2set |
|||
Nominal pressure |
800 KNx2 |
Trip |
395MM |
||||
4 |
Second class cylinder |
Model |
YG200/140-450 |
2set |
|||
Nominal pressure |
800KN*3 |
Trip |
450MM |
||||
5 |
Feed cylinder |
Model |
YG200/140-4505 |
1set |
|||
Nominal pressure |
800KN |
Trip |
4505MM |
||||
6 |
Press box size(L×W×H)(MM) |
5000*1600*1250 |
|
||||
7 |
Bale size(L×W×H)(MM) |
700*500 |
|
||||
8 |
Working pressure system |
25Mpa/20Mpa |
|
||||
9 |
Shear length/min shear open |
830MM/500MM |
|
||||
10 |
Press material length/max press open |
770MM/560MM |
|
||||
11 |
Motor |
95.5KW |
|
||||
12 |
Electric |
380V/3HP 50HZ |
|
||||
13 |
Shear degree |
10 |
|
||||
14. |
Shear time |
3time/min |
|
||||
9 |
Motor |
Model |
Y3 225M-4 |
Power |
45KW |
|
|
Speed |
1480R/MIN |
Quantity |
2set |
||||
10 |
Oil pump |
Model |
OSA7V |
pressure |
40Mpa |
|
|
Oil flow |
160ml/r |
Quantity |
2set |
||||
11 |
Cooling system |
Model |
Separate cycle system |
||||
Production process
Applications:
The hydraulic baler & shear machinery is suitable for the cutting of scrap materials.Metal pieces are pressed 2-0r-3-dimensionally by using the pressing lid,wing and feeding pusher,and cut or broken into pieces.
Features:
1.Pre-compress and cut scrap
2.Cut bars and profiles
3.Package light scrap
4.Squeeze and cut car bodies
| Packaging Details: | nude |
|---|---|
| Delivery Detail: | 40 days |
GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane. In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our company was first inaugurated in 2003.We have combined advanced production and testing instruments with state-of-the-art manufacturing techniques to yield outstanding product quality.
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
Contact Information:
Christin
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
Tel:86-510-86996082
Fax:86-510-86993993
Website: /enzhuye.asp
