Full Electric Stacker CL1030J Economical Type

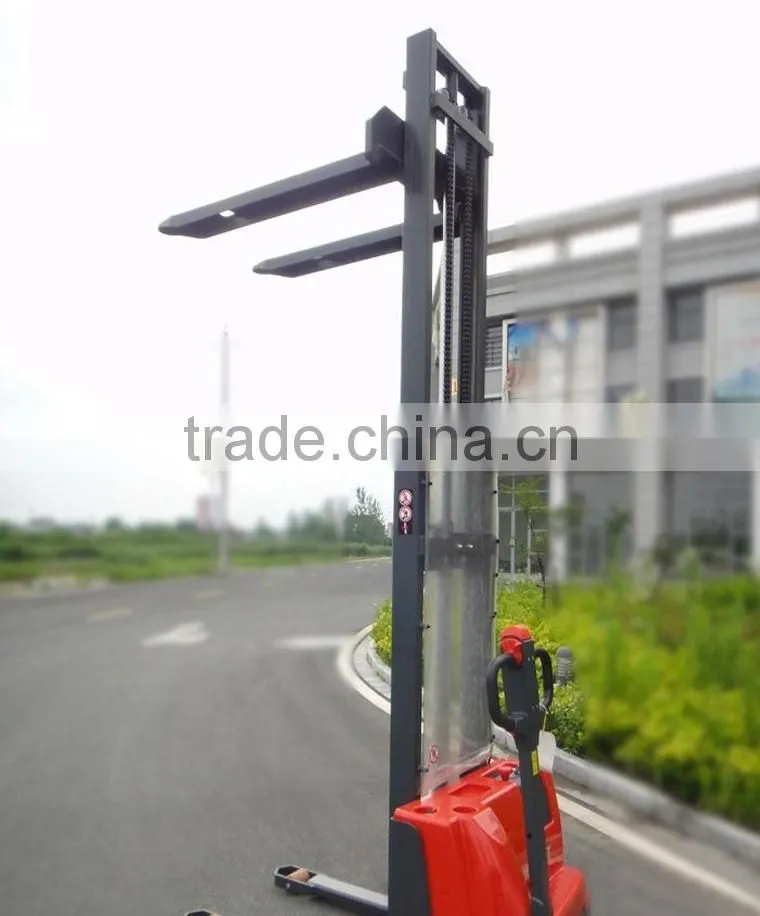

Full Electric Stacker CL1030J Economical Type photo-1

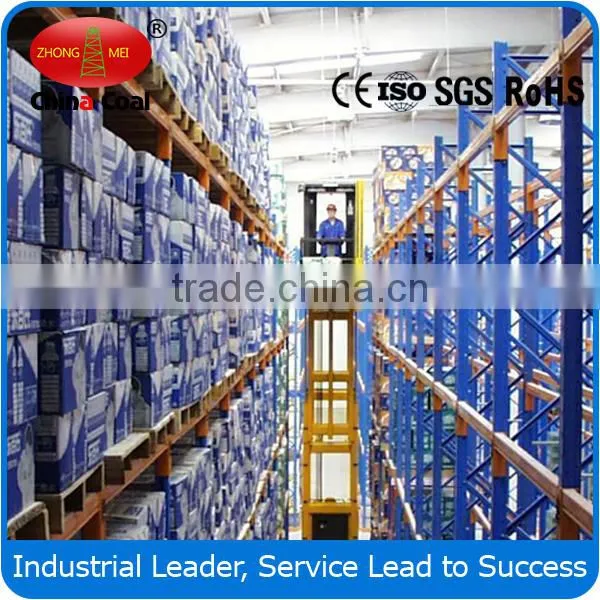

Full Electric Stacker CL1030J Economical Type photo-2

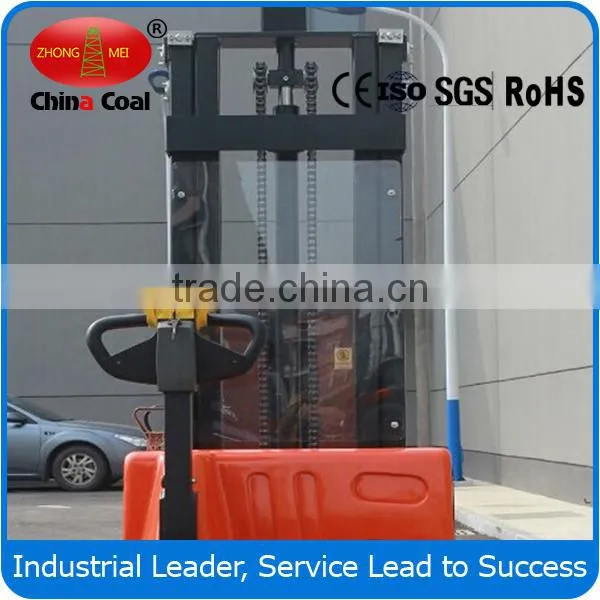

Full Electric Stacker CL1030J Economical Type photo-3

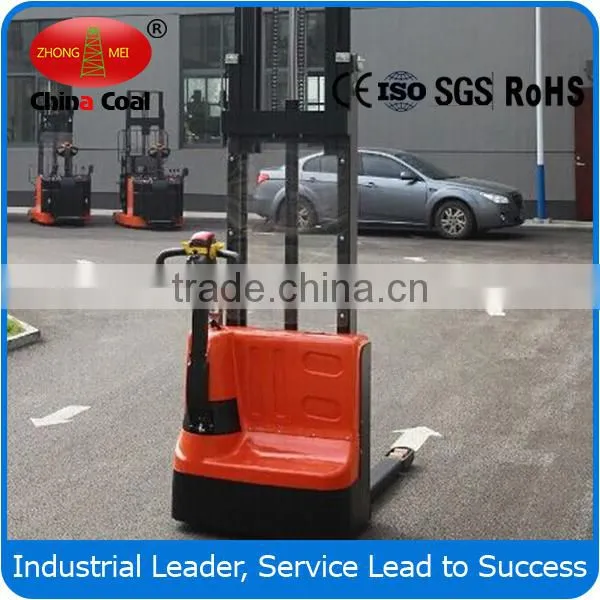

Full Electric Stacker CL1030J Economical Type photo-4

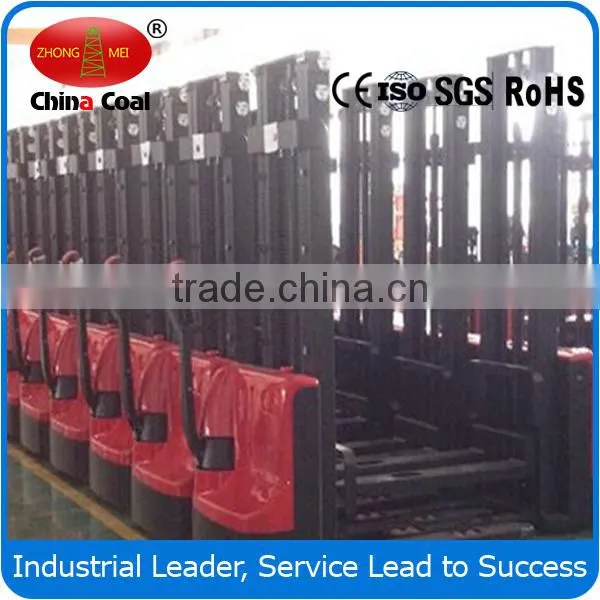

Full Electric Stacker CL1030J Economical Type photo-5

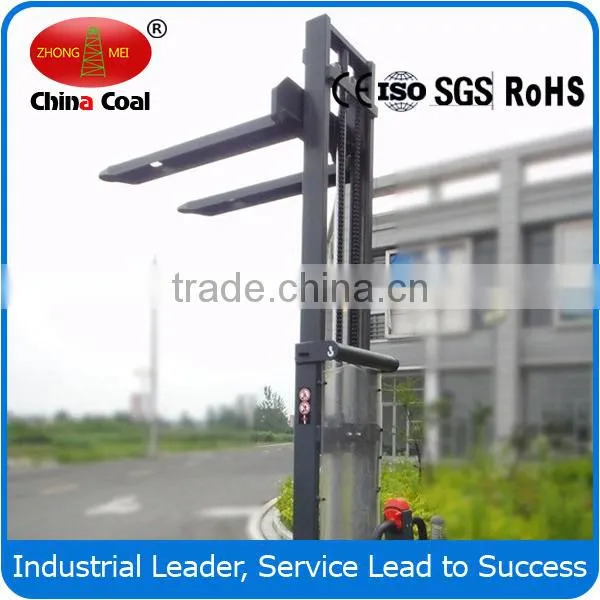

Full Electric Stacker CL1030J Economical Type photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
China Coal
Model Number:
CL1030J
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name China Coal
Model Number CL1030J
After-sales Service Provided No overseas service provided

Product Introduction

Full Electric Stacker CL1030J Economical Type
Electric Stacker/CL1030J Stacker/Full Electric Stacker

Main Parameter

  Model

                                  CL1030J

Power

Battery

Lift height(mm)

3000mm

Operator type

Walkie

The height load weight(kg)

700kg

Service weight(kg)

465kg

Height lowered fork(mm)

86mm

Load capacity(kg)

1000kg

Fork length(mm)

1150mm

Load center distance(mm)

600mm

Overall length(mm)(Pedal)

1755mm

Lift motor(kw)

2.2kw

Overall width(mm)

795mm

Driving motor(kw)

0.75kw

Outside width(mm)

570/695mm

Driving speed(km/h)

5.5/5.2km/h

Single fork width(mm)

160mm

Service brake

Regenerative

Fixed leg length(mm)

928mm

Battery(Size)

2*12v/100Ah

(260*169*215)

Fixed keg,outiside width(mm)

510/635mm

Tires

PU

Turning radius(mm)

1336mm

Tyre size, front

80*70,4

The max./min.height of stacker

3424/1994mm

Tyre size, rear

210*70,1

Working time(h)

5h

Balance tyre

150*58,1

Lift speed,laden/unladen

150/105 mm/s





Lowering speed,laden/unladen

95/100 mm/s

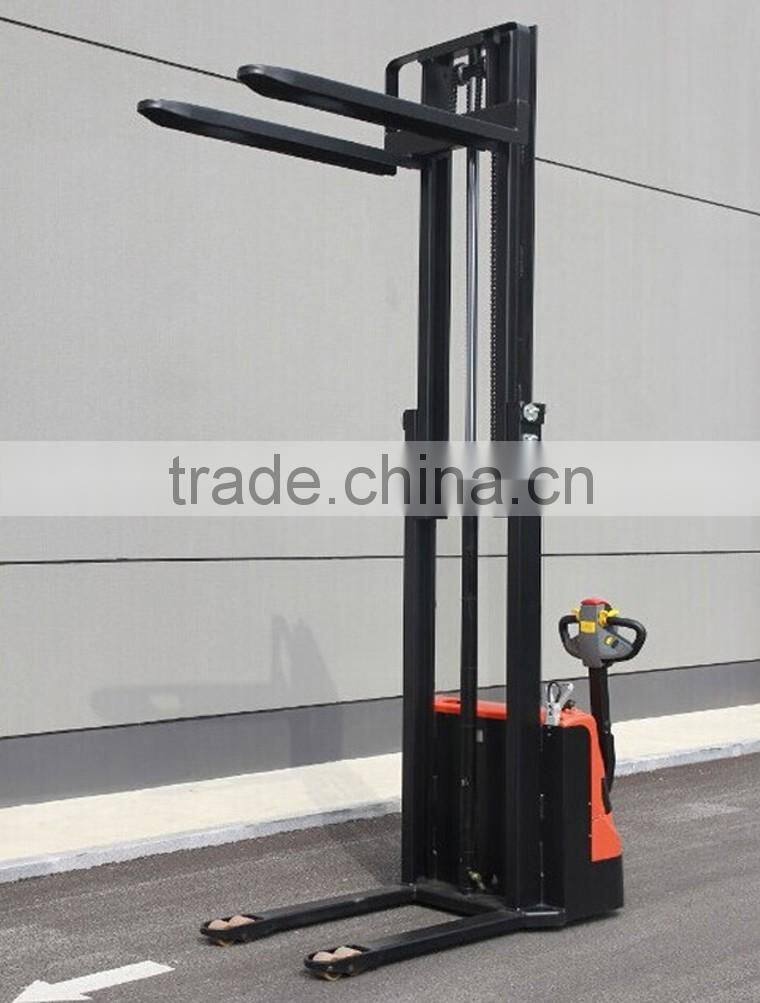

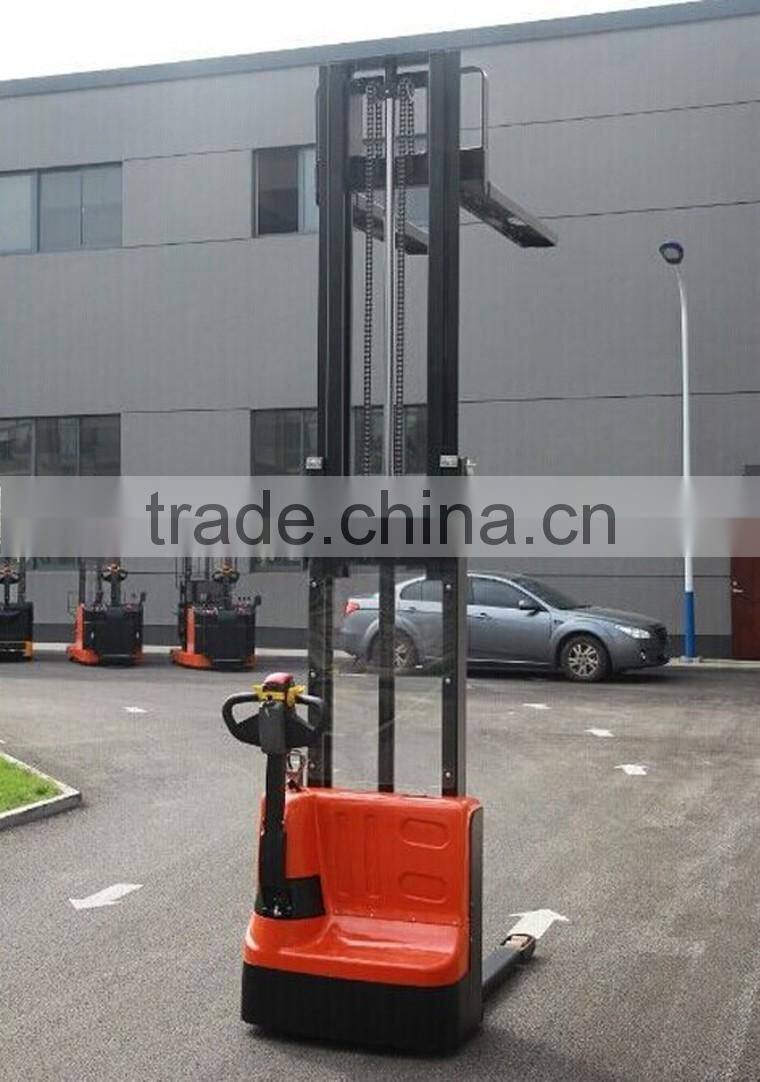

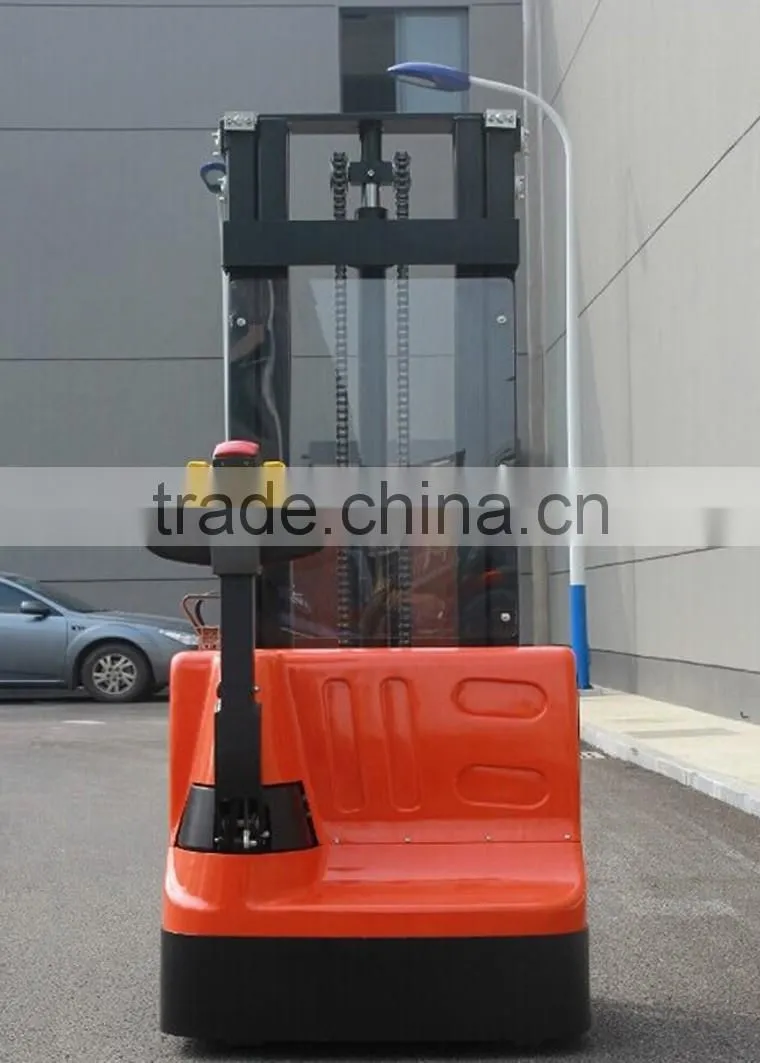

Figure Photo

Full Electric Stacker CL1030J Economical TypeFull Electric Stacker CL1030J Economical TypeFull Electric Stacker CL1030J Economical TypeFull Electric Stacker CL1030J Economical TypeFull Electric Stacker CL1030J Economical TypeFull Electric Stacker CL1030J Economical Type

B/L of The History Trading

Full Electric Stacker CL1030J Economical Type
