Product Introduction
Best and standard Reach Electric Stand On Truck
2.0t Stand-on Reach Truck /electric forklift / Battery Truck
Product Description
Reach Truck
· Lifting Capacity: 2, 000kg.
· Power type: Battery (Electric)
· CURTIS Controller, DC System
Standard:
· CURTIS Controller, DC System;
· Chinese battery;
· Duplex 3M MAST (2-stages mast);
· Solid tyre;
· Working lights, buzzer, reverse alarm light, mirrors, seat belt, and the other standard equipment
Main Parameter
Model |
|
FBR10 |
FBR13 |
FBR15 |
FBR18 |
FBR20 |
Rated load capacity |
Q (kg) |
1000 |
1200 |
1500 |
1800 |
2000 |
Rated lift height |
h3 ( mm) |
3000 |
||||
Load centre |
C ( mm) |
500 |
||||
Fork carriage tilt (forward /backward ) |
α/β (deg) |
3/5 |
||||
Travel speed (with/without load ) |
(km/h) |
7.5/8.0 |
7.5/8.0 |
8.5/9 |
8.5/9 |
8.5/9 |
Lifting speed (laden ) |
( mm /s) |
200 |
185 |
230 |
220 |
210 |
Max gradeability (laden ) |
(%) |
>12 |
>10 |
|||
Min turning tadius |
wa ( mm ) |
1620 |
1730 |
|||
Reach distance |
X ( mm) |
600 |
||||
Wheel base |
Y ( mm ) |
1360 |
1470 |
|||
Overall length |
l1 ( mm ) |
2040 |
2122 |
|||
Main body length |
l2 ( mm ) |
955 |
1257 |
|||
Overall width |
b1 (mm ) |
1020 |
1200 |
|||
Height of mast,lowered |
h1 ( mm ) |
2080 |
2090 |
|||
Free lift height |
h2 ( mm ) |
330 |
||||
Height of mast,extended |
h4 ( mm ) |
3945 |
4000 |
|||
Height of overhead guard |
h5 (mm) |
2160 |
||||
Fork dimensions(T×W×L) |
( mm) |
35×100×900 |
35×120×900 |
45×120×900 |
||
Min ground clearance |
h6 ( mm ) |
80 |
90 |
|||
Aisle width with pallet (1200×1200 ) |
Ast1 (mm ) |
2650 |
2900 |
|||
Aisle width with pallet (1000×1000 ) |
Ast2 ( mm) |
2430 |
2700 |
|||
Service weight |
(kg) |
1700 |
1800 |
2550 |
2650 |
2750 |

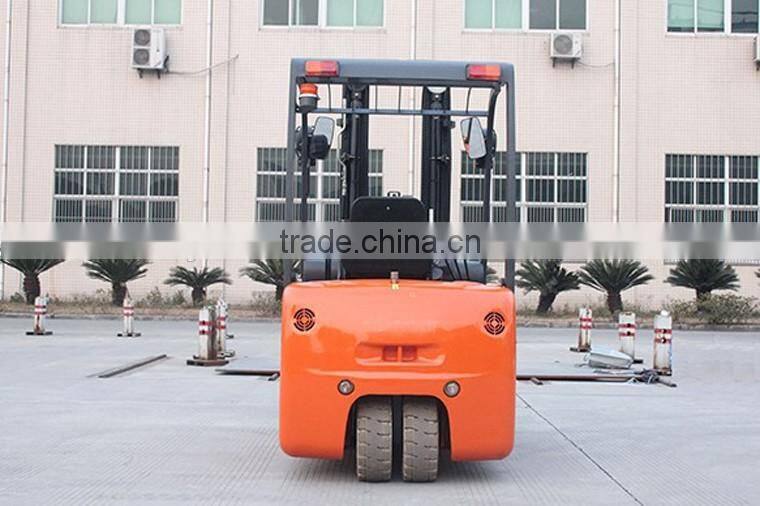

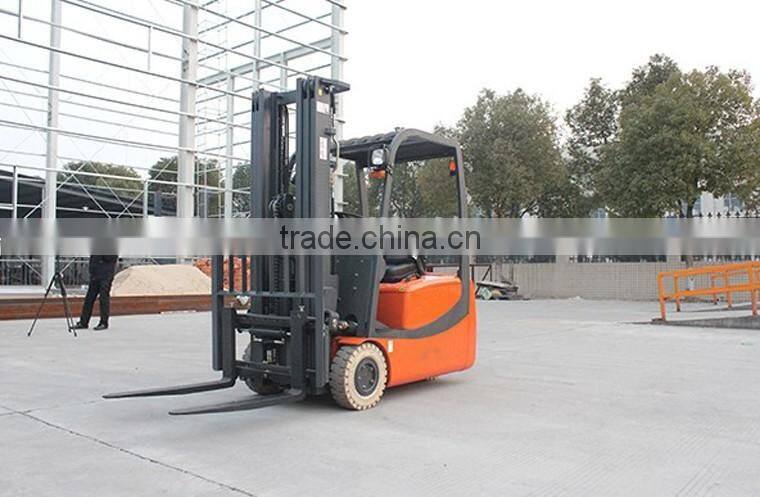

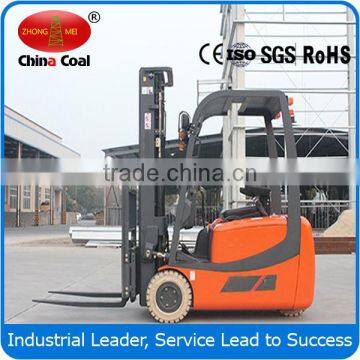

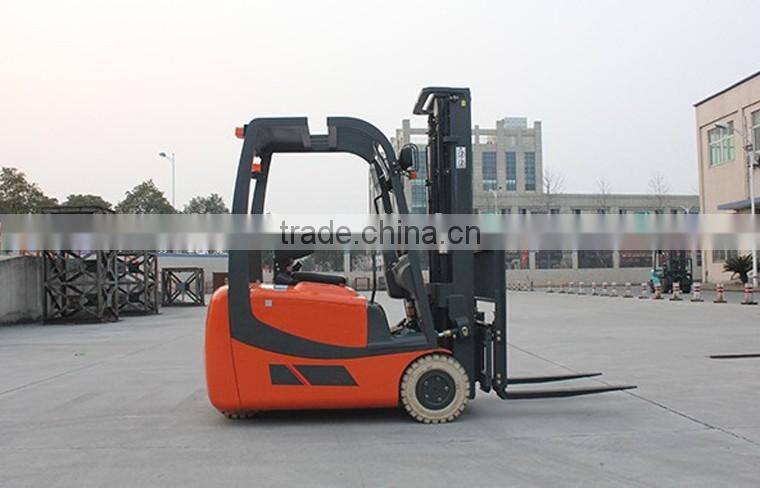

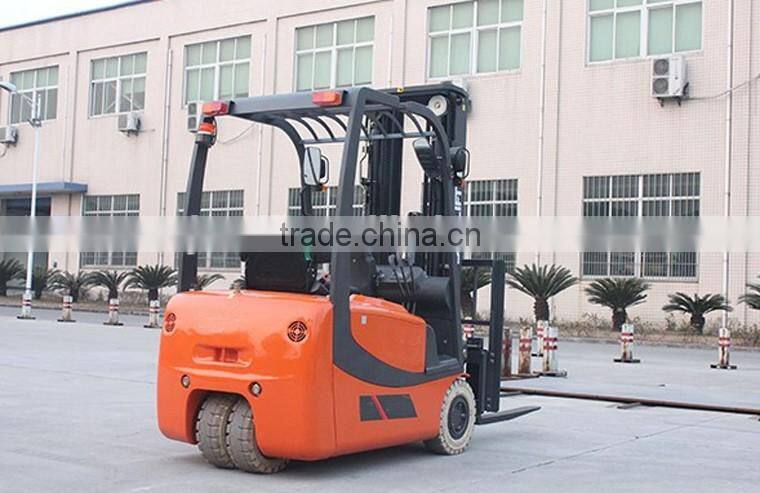

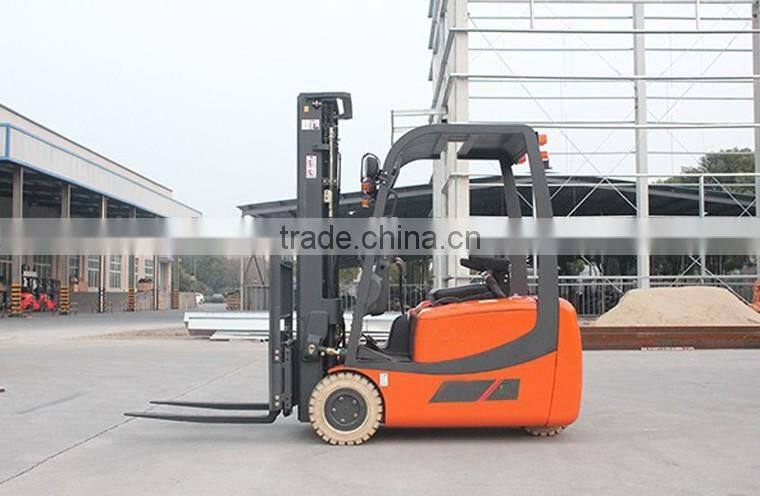

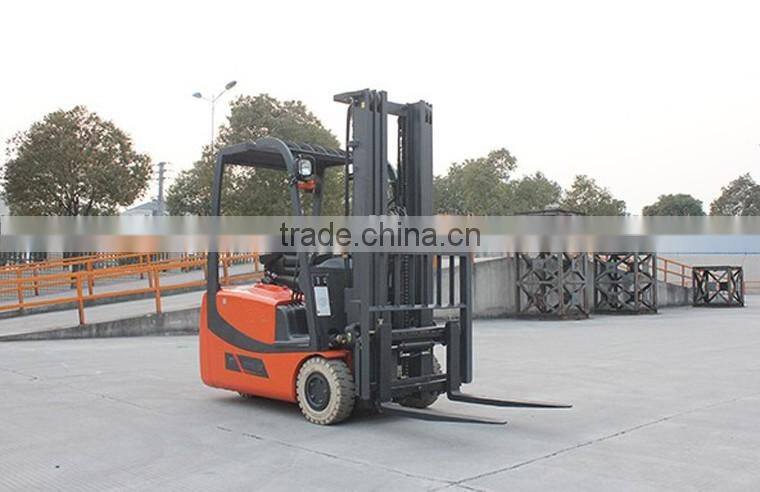

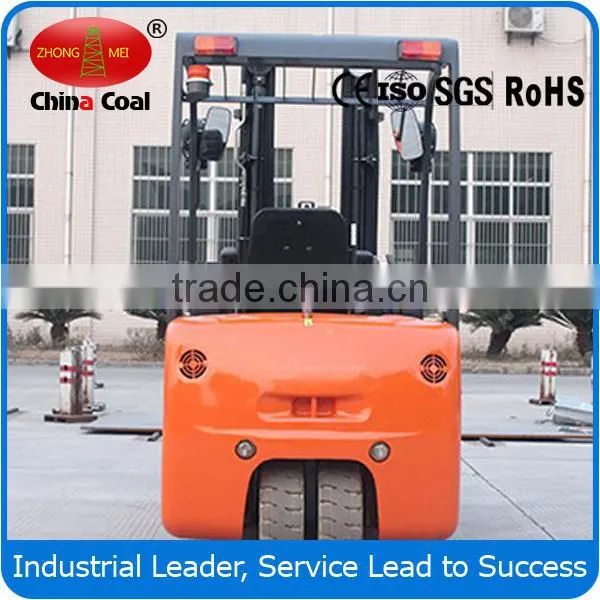

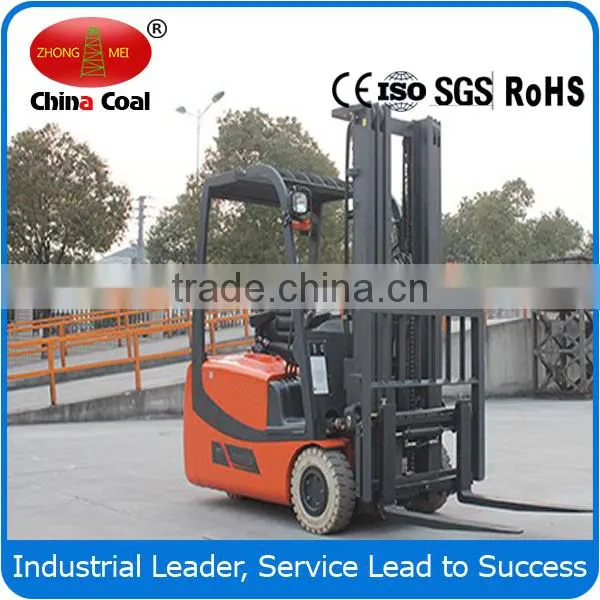

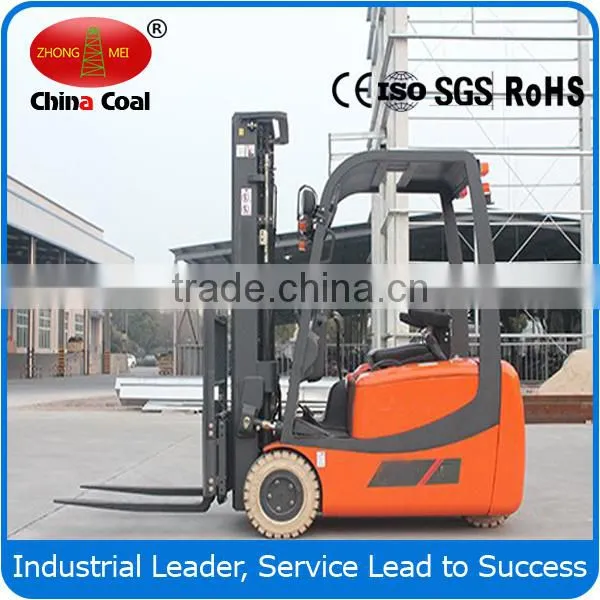

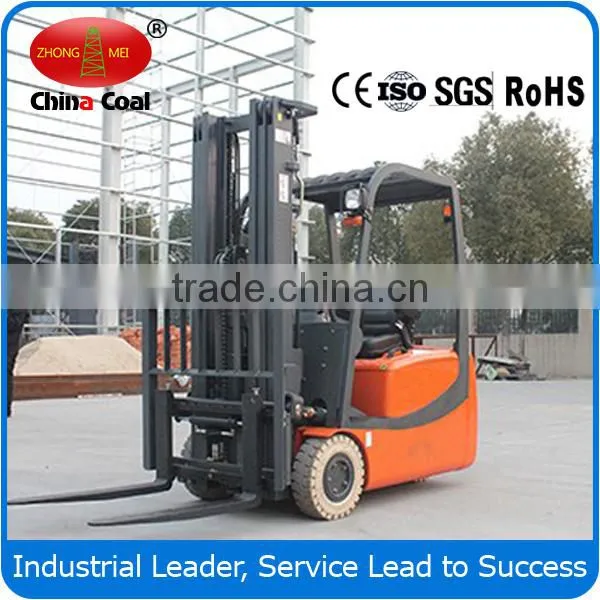

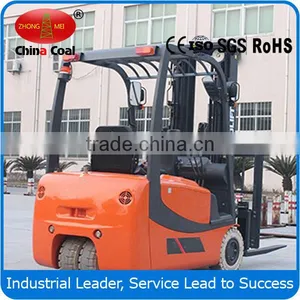

Figure Photo
