Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > XE Series Stacker

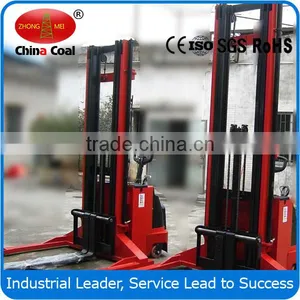

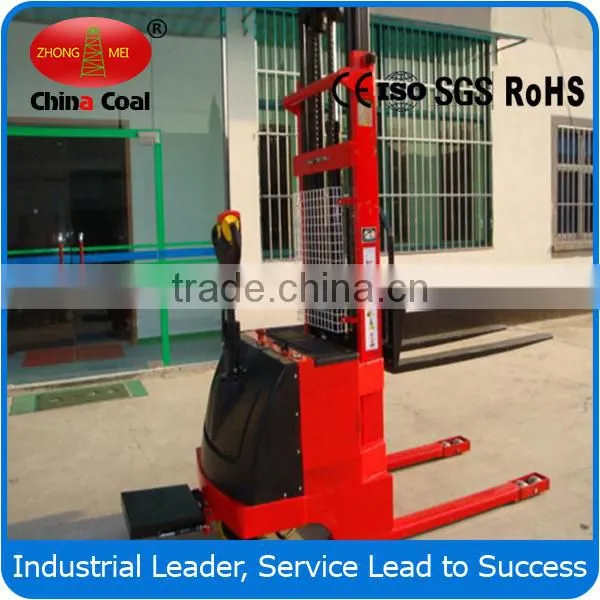

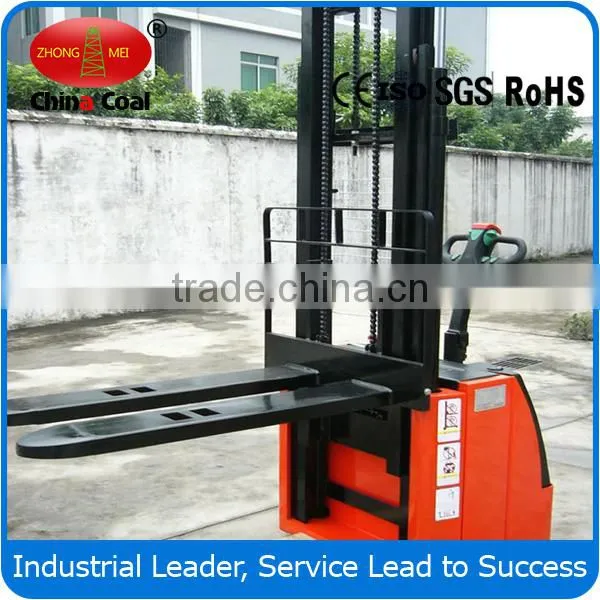

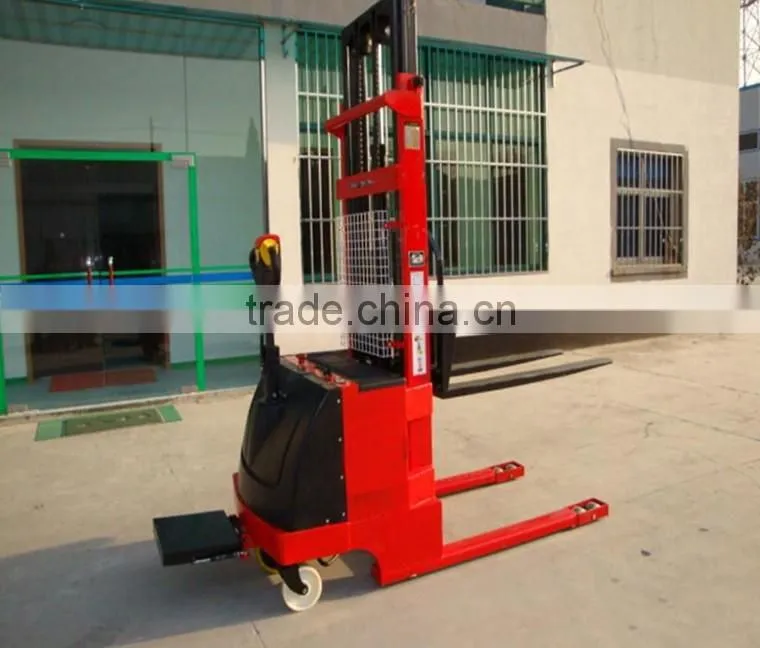

XE Series Stacker

Name: XE Series Stacker
Brand: China Coal
SKU: 141038192
Availability: InStock

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

China Coal

Model Number:

XE10A

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Ningbo Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name China Coal

Model Number XE10A

Lift Mechanism Screw Lift

Lift Drive / Actuation Hydraulic

Power 1.2kw

Rated Loading Capacity 1000kg

Min. Lifting Height 1600mm

Max. Lifting Height 1980mm

Table Size depend on sample

Overall Dimensions depend on sample

Weight 1700kg

Certification CE ISO

Warranty One Year

After-sales Service Provided Overseas service center available

Product Introduction

XE Series Stacker :
CE Electric Stacker/XE Series Stacker/1.5ton Loading Stacker
Product Description
1.Loading capacity: 1ton, 1.5ton
2. Lifting height: 1.6m-4.5m
3. Battery side extraction
4. Wide view mast
5. Regenerative braking function
6. CURTIS Electronic Controller from Europe
7. Germany FREI handle
8. Italian HYDRAPP Hydraulic system
9. Germany Mannstaedt steel for mast.

Main Parameter

ldentification	1	Product type designation		XE10A	XE10B	XE15A	XE15B
	2	Drive unit		Electric	Electric	Electric	Electric
	3	Operator type		Standing	Pedestrian	Standing	Pedestrian
	4	Load capacity	Q kg	1000	1000	1500	1500
	5	Load center	C mm	600	600	600	600
	6	Load distance, centre of drive axle to fork face	X mm	430	430	440	440
	7	Wheelbase	Y mm	1280	1280	1330	1330
Wheel	1	Tyres		Polyurethane	Polyurethane	Polyurethane	Polyurethane
	2	Driven wheels size	mm	250 80	250 80	250 80	250 80
	3	Loaded wheels size	mm	80 70	80 70	80 70	80 70
	4	Balance wheels size	mm	125 50	125 50	125 50	125 50
	5	Wheels number, (front/rear)(x=driven wheels)		1x-2/4	1x-2/4	1x-2/4	1x-2/4
	6	Tread, front	mm	690	690	690	690
	7	Tread, rear	mm	400	400	400	400
Dimensions	1	Height, mast lowered	h1 mm	1750	1750	1750	1750
	2	Free lift	h2 mm	/	/	/	/
	3	Lift height	h3 mm	2500	2500	2500	2500
	4	Height, mast extended	h4 mm	2965	2965	2965	2965
	5	Forks height, lowered	h5 mm	86	86	86	86
	6	Height of tiller in drive position(max/min)	h6 mm	1350/985	1350/985	1350/985	1350/985
	7	Overall length	L1 mm	1950	1890	2020	1960
	8	Length to face of forks	L2 mm	797	737	869	809
	9	Overall width	b1 mm	850	850	850	850
	10	Fork dimensions	s/e/l mm	170/66/1150	170/66/1150	180/66/1150	180/66/1150
	11	Maximum forks width	b3 mm	570680	570680	580680	580680
	12	Minimum ground clearance	m mm	30	30	30	30
	13	Ais le winth for pallefs 800 1200 lengthways	Ast mm	2225	2140	2300	2210
	14	turning radius	Wa mm	1545	1460	1610	1520
Performance	1	Travel speed loaded/unloaded	km/h	5.2/6	4/5	5.2/6	4/5
	2	Lift speed loaded/unloaded	mm/s	90/120	90/120	90/120	90/120
	3	Lowering speed loaded/unloaded	mm/s	125/80	125/80	125/80	125/80
	4	Max gradeability loaded/unloaded	%	5/8	5/8	5/8	5/8
	5	Service brake		Electroma- gnetic brake	Electroma- gnetic brake	Electroma- gnetic brake	Electroma- gnetic brake

1	Overall height	h1 mm	1980	2180	1750	2000	2150	2350	2500
2	Free Lift	h2 mm	1600	1800	/	/	/	/	/
3	Lift Height	h3 mm	1600	1800	2500	3000	3300	3700	4000
4	Maximum Height	h4 mm	1980	2180	2956	3465	3765	4165	4465

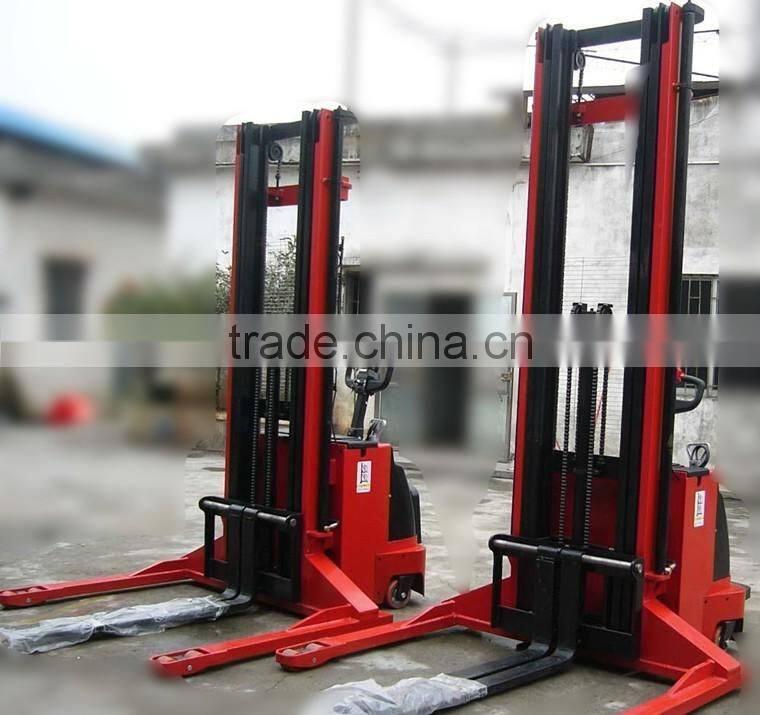

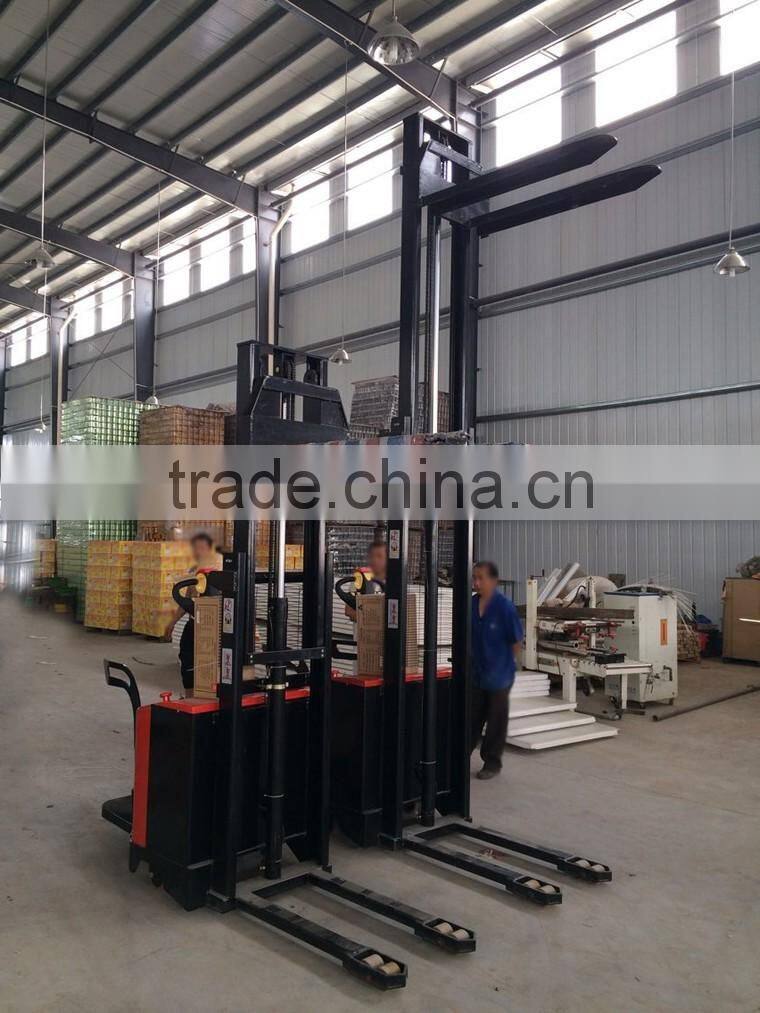

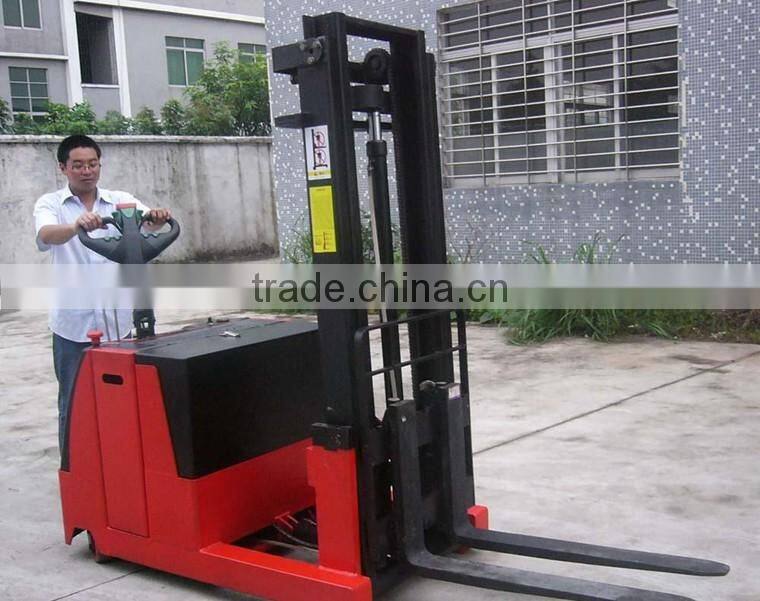

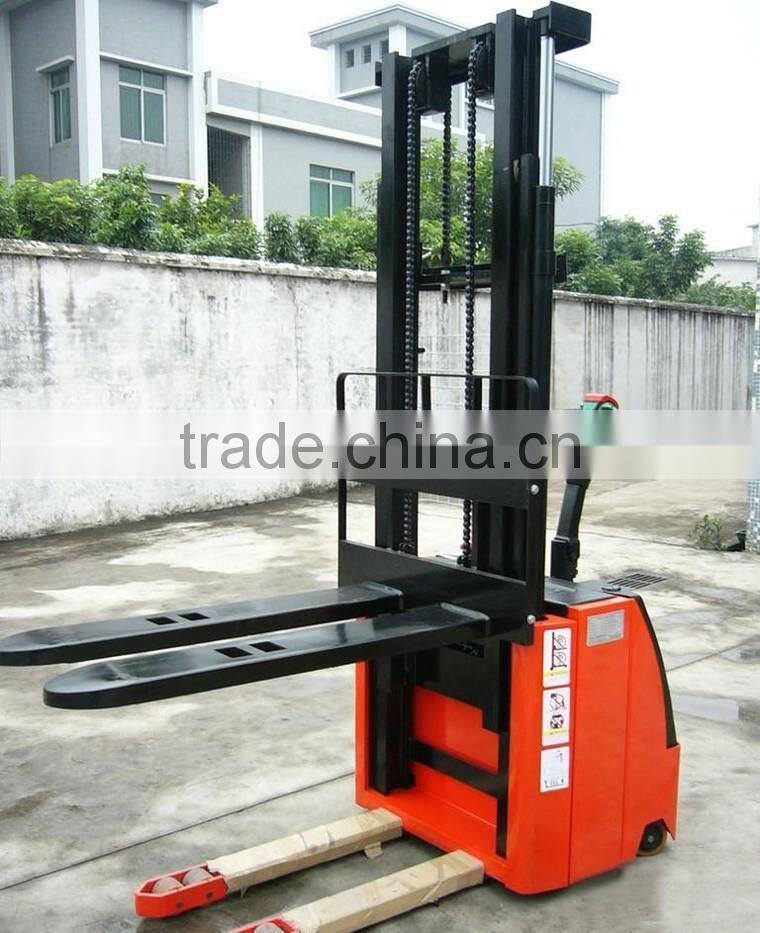

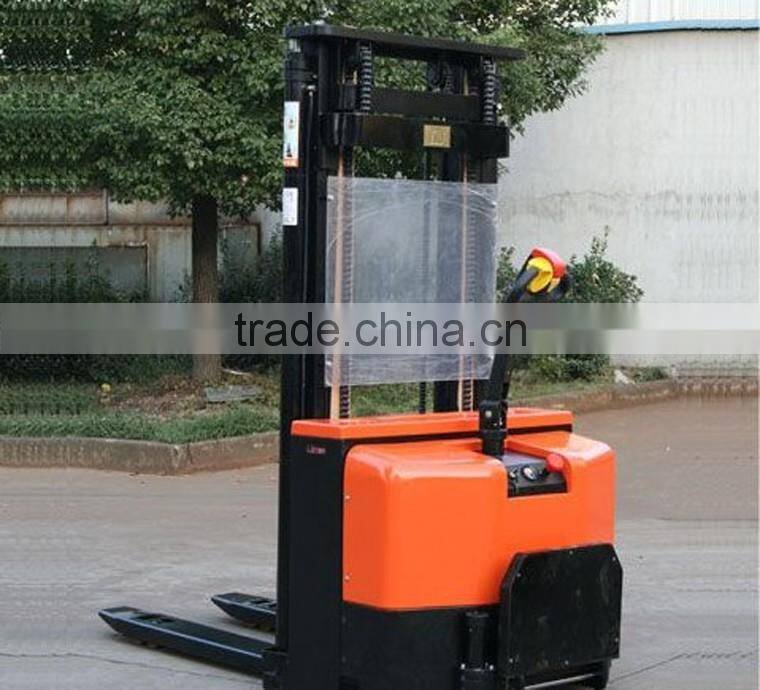

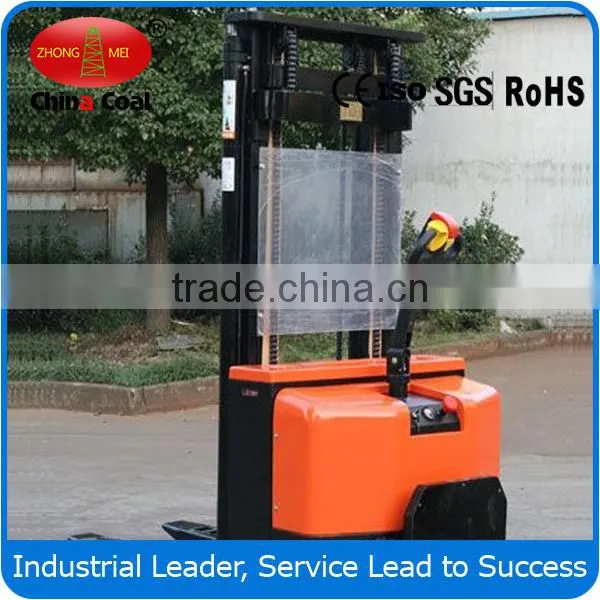

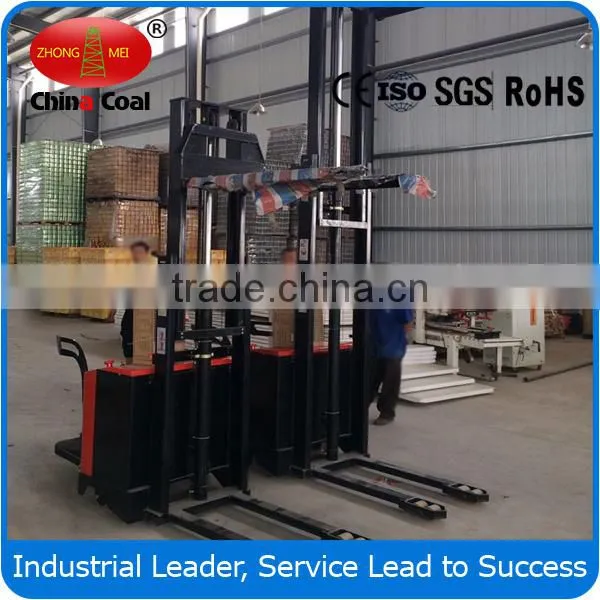

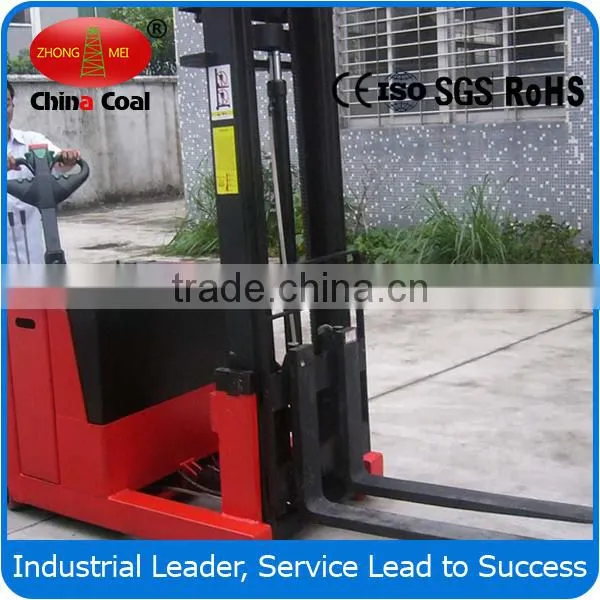

Figure Photo
