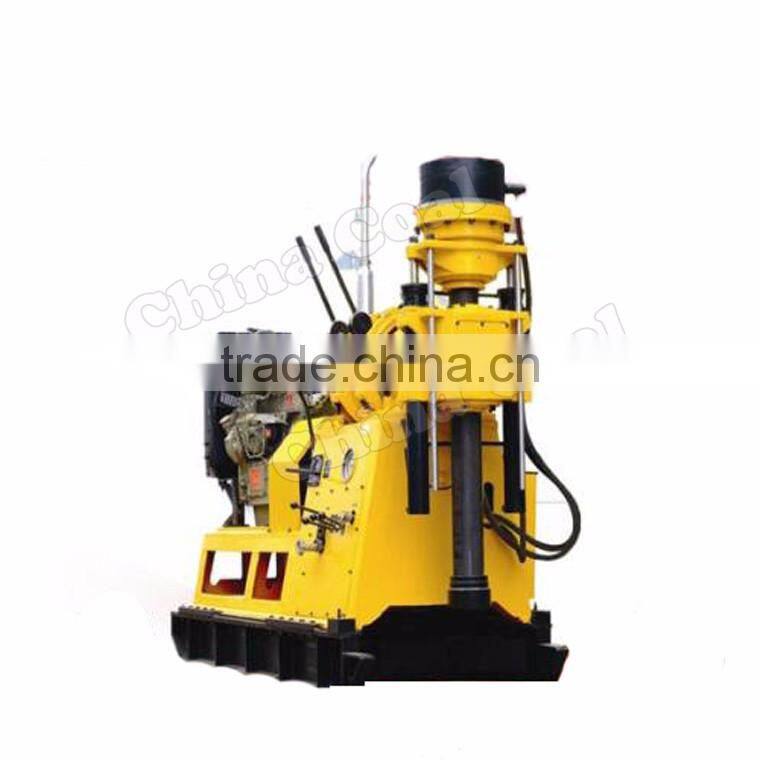

Made by Shandong ChinaCoal Group XY-3B Horizontal Drilling Machine Water Well Drilling Rig

1,Parameters

Drilling depth  m

ø75 mm:   600

ø 273 mm:150

ø 500 mm:80

ø 800 mm:50

Drill pipe diameter(mm):50,60

Drilling angle (degree):70-90⁰

Rig dimensions(mm):2500×1100×1700

Rig weight(Kg):1300

2.Gyrator

Vertical speedr/min

Forward

74,163,240,337,440,617,743,1045

Reversion

64,160

Vertical feeding process mm:550

lifting capacity KN  68

Vertical capacity  KN:46

Maximum operating torque Nm:3500

3.Winch   Lifting speed m/s:0.53, 1.1, 2.0

Lifting capacity KN:30

Diameter of wire rope mm:15

Drum diameter mm:264

Brake wheel diameter mm:460

Brake width mm:90

4.Drilling rig moving device

Shift stroke mm:420

Distance away from the orifice mm:300

5.Pump      model:CBW320

Rated displacement  L/min 40

Rated pressure Mpa 8

6.Drilling rig power  Diesel engine  model:CZ4102

Rated power Kw:35.3

Rated speed r/min:2000

Electric motor   Rated power Kw:30

Rated speed r/min:1450
