Home > Products > Drilling rig > Tractor Borehole Exploration Water Well Drilling Rig Machine for Sale UK
Tractor Borehole Exploration Water Well Drilling Rig Machine for Sale UK
- Qingdao Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
ZGYX-421 Crawler Mounted Drill Vehicle
-
ZGYX-421 Crawler Mounted Drill Rig
-
ZGYX-421 Crawler Type Open-air Drill Machine
-
ZGYX-421 Hydraulic Water Well Drilling Rig / Core Drilling Machine / Water Well Crawler Drilling Rig Machine
-
ZGYX-421 Integrated Crawler Drill Machine
-
ZGYX-421 Integrated Crawler Drill Rig
Product Details
| Condition | New | Type | Other, Water Well Drilling Rig Machine | |
| Power Type | Electric | Place of Origin | Shandong, China | |
| Brand Name | China Coal | Model Number | XY-3 | |
| Usage | Other, Water Well Drilling Rig Machine | Voltage | differ | |
| Power(W) | differ | Dimension(L*W*H) | 2220x900x1800mm | |
| Weight | 1750kg | Certification | ISO,CE,SGS,TUV,BV | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
Tractor Borehole Exploration Water Well Drilling Rig Machine for Sale UK Introduction
XY 3 Portable Water Well Drilling Rig Machine for Sale
Have 8 postive rotation gear,high speed,strong torque,widely scope of application.
Equip hydraulic chuck,it can complete no-stopping rotating.
Big inner diameter,use big or middle hexagonal driving lever.
Light in weight,easy disassembling for transportation and applicable to
working conditions in plain and mountain areas.
Tractor Borehole Exploration Water Well Drilling Rig Machine for Sale UK Parameter
Unity machine parameter | ||
Drilling depth | 600m | |
Open hole caliber | 300mm | |
End hole caliber | 75mm | |
Drilling angle | 90°~65° | |
Drill weight (No include power) | 1750kg(Electric Machinery) 1830kg(Diesel Engine) | |
Unity machine dimensions | 2220×900×1800mm | |
Distance away from hole | 280mm | |
Spindle | ||
Speed | ||
Forward | 57 99 157 270 470 742 1024 | |
Reverse | 45 212 | |
Stroke | 560mm | |
Spindle inner diameter | 96mm | |
Spindle lifting capacity | 6000kg | |
hoist | ||
Reel caliber | 200mm | |
Hug floodgate belt width | 90mm | |
Tightrope caliber | 12.5mm or 14mm | |
Rell cubic measure | 30m | |
Single line lifting speed | 0.515 0.894 1.421 1.948m/s | |
Max single line hoisting capacity | 3000kg | |
Oil pump | ||
F532/F314 | Duplex gear oil pump | |
Displacement | front 32L/min pressure 20Mpa | |
behind | 14L/min pressure 20Mpa | |
Power | ||
Diesel engine | 395Kz 27HP | |
Electric motor | Y180L-4 22kw | |
Suit scope | ||
Geological exploration,water and electricity engineering ,road and railroad construction, build engineering and big diameter water well construction project etc. | ||

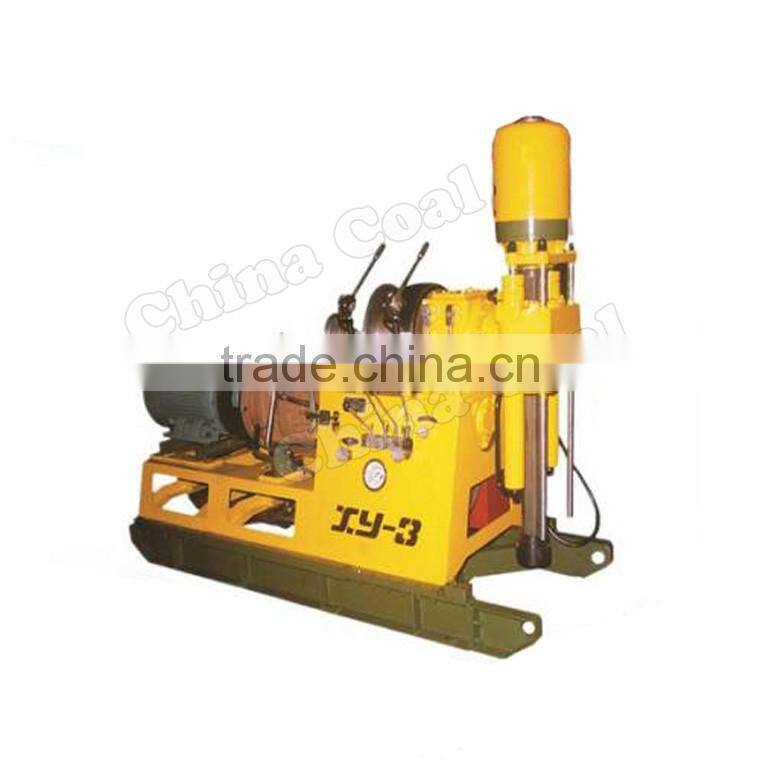

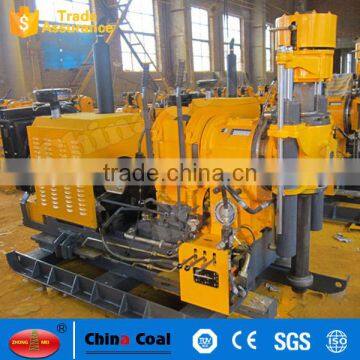

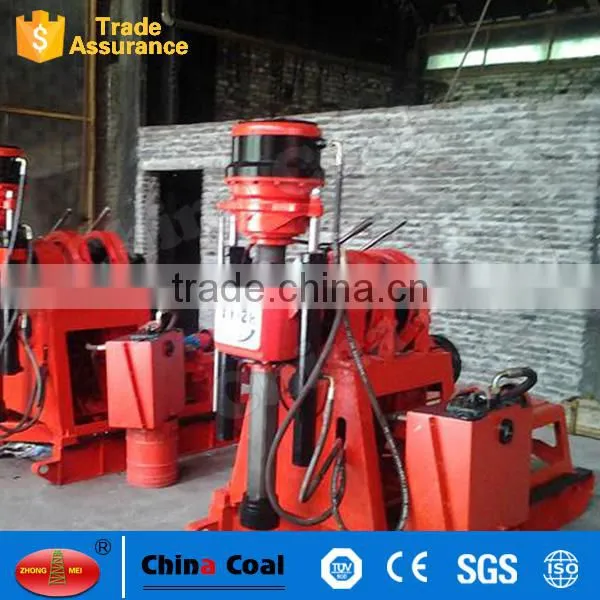

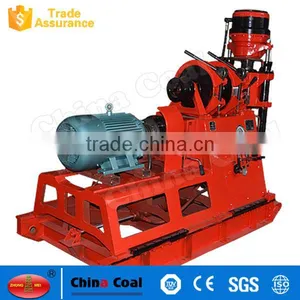

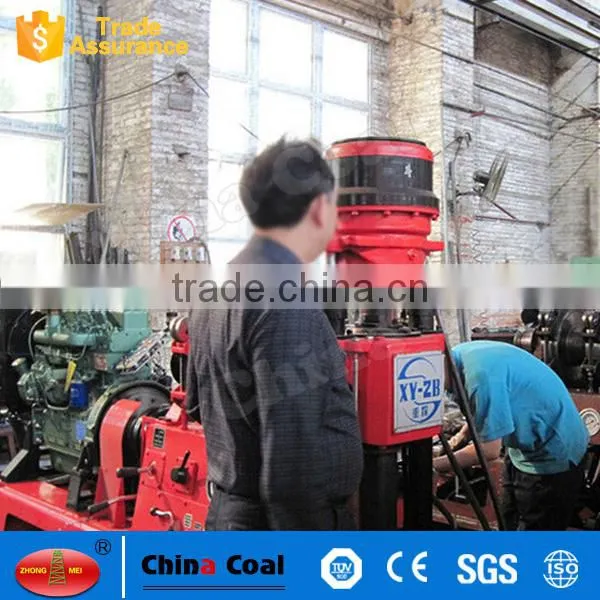

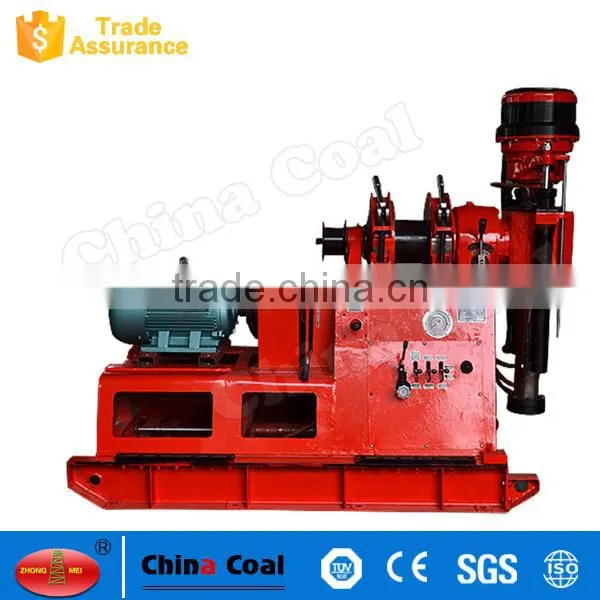

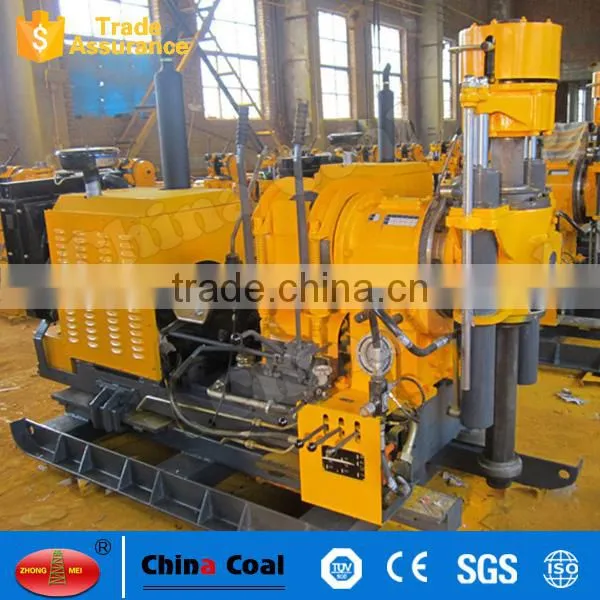

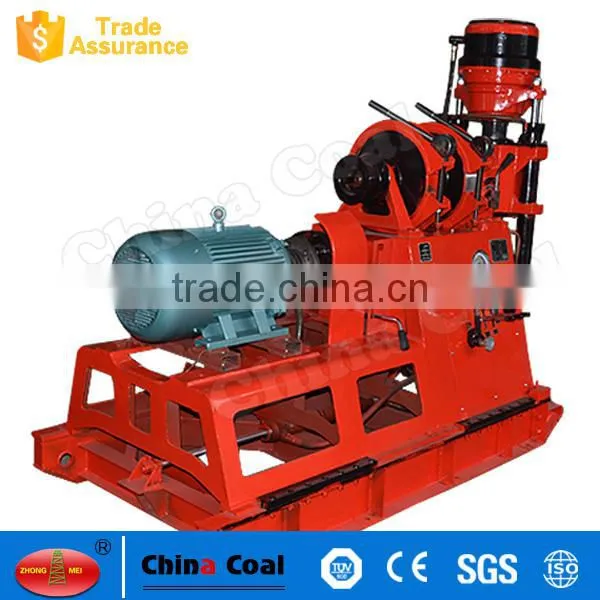

Tractor Borehole Exploration Water Well Drilling Rig Machine for Sale UK Photos
