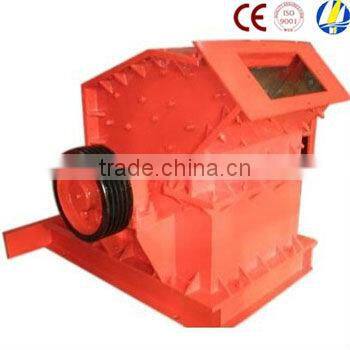

China new counterattack sand making machine with ISO
- 100 Set / Sets per Month
- nearest port
- T/T Credit Card
- Mining Stone Crushing Machine Silica Quartz Sand Making Production Line
- High Efficiency Stone Fine Crusher 5X Series Sand Making Machine
- High Efficient Artificial Building VSI Crusher Sand Making Machine Equipment
- Automatic Zero Discharge Concrete Recycling System
- Concrete Batching Plant Parts
- Concrete Recycling Machine
Product Details
Production Capacity: | 10-20 m3/h | Place of Origin: | Henan, China | ||
Brand Name: | BV/CE/ISO | Model Number: | PCXK series | Voltage: | industrial voltage |
Power(W): | 45-55 kw | Dimension(L*W*H): | depend on model | Weight: | 3 t |
Certification: | BV/CE/ISO | Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
counterattack sand making machine1)simple structure, easy maintenance;
2)investment cost is low,
3)BV,CE,ISO9001.
New counterattack sand making machine introduction:
New counterattack sand making machine is one kind of sand making machine which use impact energy to crush materials, its compression strength is not more than 320Mpa, widely used in building materials, transportation, cement, mining, chemical, metallurgy, energy and other industries, the machine in the 30-40T / H grade sand making equipment selection has irreplaceable advantages, its energy consumption save nearly 2/3 compared to other models crushing.
New counterattack sand making machine structural features:
1, the rotor can be rotated both positive and negative, when the side of the plate hammer unable to work due to wear and tear, you can exchange the direction of plate hammer to continue to use, can greatly improve the efficiency of the equipment, but also to ensure the balance of the product .
2, the product grain shape is good, no cracks.
3, simple structure, easy maintenance.
4, after the back frame and adjust the distance between the rotor, the material can change the shape of the particle size and the material.
5, the initial investment cost is low, save the motor power consumption.
New counterattack sand making machine performance:
This series of counterattack sand making machine mainly consists of frame, plate hammer, electrical, back plate and other major components. When the material through the inlet into the reversible Sand crushing cavity, the material being a high-speed impact hammer, thrown back plate. Thus repeated collisions, friction, crushing together in a closed cavity crushing, crushed material is discharged from the bottom of the machine.
New counterattack sand making machine Technical parameters:
Model | Rotor diameter/length (mm) | Feeding size(mm) | output(t/h) | Matched Motor(kw) | Discharging size(mm) | Weight(t) |
PCXK0606 | 600/600 | 60 | 10-20 | 45-55 | ≤10 | 3 |
PCXK0808 | 800/800 | 70 | 20-40 | 75-90 | ≤10 | 5.5 |
PCXK1010 | 1000/1000 | 80 | 60-80 | 110-132 | ≤10 | 7.5 |
PCXK1012 | 1000/1200 | 80 | 70-100 | 132-160 | ≤10 | 9 |
PCXK1016 | 1000/1600 | 80 | 90-120 | 185-200 | ≤10 | 11.5 |
PCXK1212 | 1200/1200 | 80 | 100-130 | 220-250 | ≤10 | 13.5 |
PCXK1216 | 1200/1600 | 80 | 130-180 | 280-355 | ≤10 | 17 |
PCXK1414 | 1400/1400 | 100 | 140-200 | 315-400 | ≤10 | 19 |
PCXK1616 | 1600/1600 | 100 | 200-280 | 450-560 | ≤10 | 28 |
PCXK1818 | 1800/1800 | 100 | 300-400 | 630-710 | ≤10 | 42 |
