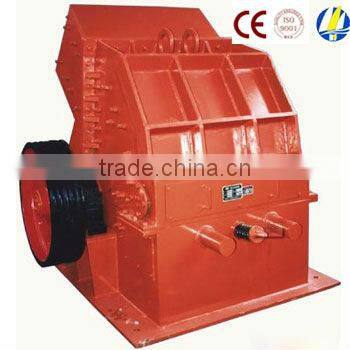

China hammer sand making machine for sale
- 100 Set / Sets per Month
- nearest port
- T/T Credit Card
- Mining Stone Crushing Machine Silica Quartz Sand Making Production Line
- High Efficiency Stone Fine Crusher 5X Series Sand Making Machine
- High Efficient Artificial Building VSI Crusher Sand Making Machine Equipment
- Automatic Zero Discharge Concrete Recycling System
- Concrete Batching Plant Parts
- Concrete Recycling Machine
Product Details
Production Capacity: | 5-10m3/h | Place of Origin: | Henan, China | ||
Brand Name: | BV/CE/ISO | Model Number: | PC series | Voltage: | industrial voltage |
Power(W): | 11-480kw | Dimension(L*W*H): | 900*670*860mm | Weight: | 2.26t |
Certification: | BV/CE/ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hammer sand making machine introduction:
hammer sand making machine (hammer crusher) crush material by high-speed rotation of the hammer body and the material, it has a simple structure, large crushing ratio, high production efficiency, and can be used for dry and wet forms to broken. Hammer sand making machine is used for crushing all kinds of hard and abrasive weak materials. The compressive strength of the material does not exceed 100MPa, moisture content is less than 15%. Materials to be broken are coal, salt, chalk, gypsum, brick, limestone and so on. It can also be used for crushing fiber structure, strong flexibility and toughness wood, paper or broken asbestos cement, waste to recover asbestos fibers and so on. In addition, hammer sand making machine not only used for crushing production line, sand production line, but also in mineral processing production line replace cone crusher.
Hammer sand making machine Application:
mining, cement, coal, metallurgy, building materials, roads, fuel and other industries for medium hardness and brittle materials crushing. The device grate of the gap can be adjusted according to user requirements, changing the particle size to meet the different needs of different users.
Hammer sand making machine working principle:
The motor drives the rotor rotating at high speed in the crushing cavity. Material from the upper mouth to feed into the machine, by the high velocity of the hammer blow, impact, shear, abrasive and grinding. The lower part of the rotor, with sieve, mesh size is less than crushing the grain discharged through the sieve, sieve size larger than the coarse sieve retention continue to be a hammer blow and grinding, and finally through the sieve from the plane.
Hammer sand making machine Structure:
hammer crusher main working part is the rotor with a hammer (also known as the hammer). Rotor is composed of the spindle, disk, pin roll and hammer.
Hammer sand making machine Technical parameters:
Type | Model | Feeding size(mm) | Discharging size(mm) | Production capacity(m3/h) | Motor | Total weight(t) | Overall dimension(L*W*H)(mm) | |
number of poles | Power(kw) | |||||||
Hammer sand making machine | PCΦ400×300 | ≤200 | ≤25 | 5-10 | 4 | 11 | 0.8 | 900×670×860 |
PCΦ600×400 | ≤250 | ≤30 | 10-22 | 4 | 22 | 2.26 | 1200×1050×1200 | |
PCΦ800×600 | ≤250 | ≤35 | 18-40 | 4 | 55 | 4.8 | 1310×1180×1310 | |
PCΦ1000×800 | ≤350 | ≤35 | 25-50 | 4 | 75 | 5.9 | 1600×1390×1575 | |
PCΦ1000×1000 | ≤350 | ≤35 | 30-55 | 6 | 132 | 8 | 1800×1590×1775 | |
PCΦ1250×1250 | ≤350 | ≤35 | 35-65 | 6 | 180 | 14 | 2060×1600×1890 | |
PCΦ1400×1400 | ≤350 | ≤35 | 50-100 | 6 | 280 | 32 | 2365×1870×2220 | |
PCΦ1600×1600 | ≤350 | ≤35 | 100-150 | 8 | 480 | 37.5 | 3050×2850×2800 |
