Product Details
Production Capacity: | 35-45 t/h | Place of Origin: | Henan, China | ||
Brand Name: | BV/CE/ISO | Model Number: | KF | Voltage: | 380 v |
Power(W): | 100-132 kw | Dimension(L*W*H): | 800*400 mm | Weight: | depend on model |
Certification: | BV/CE/ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Quartz sand: Quartz sand is a non-metallic minerals, is a hard, wear-resistant, chemical stability of silicate minerals, the main mineral component is SiO2, quartz sand color is white or colorless, translucent , hardness 7, quartz sand is an important industrial mineral raw materials, non-hazardous chemicals, widely used in glass, foundry, ceramics and refractories, smelting ferrosilicon, metallurgical flux, metallurgy, construction, chemicals, plastics, rubber, abrasive and other industries.
Quartz sand making machine introduction:
According to user specific usage feedback, combined with quartz sand advantages, design new high efficient sand making equipment. The typical use is to adapt to the current artificial quartz sand production and sand industry, widely used in sand production line, cement, refractory, metallurgical and other industries.
The Quartz sand making machine has a small particle size, uniform grain shape, large capacity, long life hammer, supporting small power, variable three fractured into two crushing, process simplification, simple structure, easy maintenance, smooth running characteristics. Equipment investment is lower than the same size of the traditional technique and equipment 35% -50% more efficient than the equivalent size of the traditional production technology and equipment 35% -50% (limestone, for example: one product size ≤ 5mm more than 85%). Long-running maintenance costs lower 35% -50% than the same size of the traditional technique and equipment.
Quartz sand making machine Features:
1, high crushing efficiency, with crushing, coarse grinding function.
2, the structure is simple to install, easy maintenance, low running costs.
3, through the ability of non-broken material, the material moisture content of small, up to 8% moisture content.
4, the product excellent grain type, cubic shape, low flakiness content, suitable for aggregate shaping, artificial sand and stone take highway specifications; bulk density, iron contamination is minimal.
5, the operating noise below 75 decibels (db level), less dust pollution.
6, in the old-fashioned on the basis of the third generation of Sand adds weight wheels, so saving energy, increasing the kinetic energy production efficiency has been greatly improved.
7, in the third generation sand making repairs observation opened the rear door so more conducive to maintenance and observation of the functioning of the device. Added a grate adjustment device for easy adjustment of the particle size sand design more humane.
Quartz sand production line:

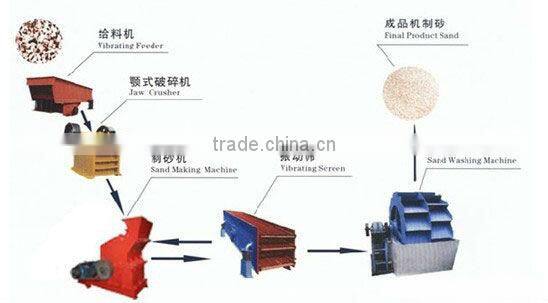

Kefan quartz sand production line has vibrating feeder, jaw crusher, quartz sand making machine(new sanding machine), vibrating screen and belt conveyor and other equipment combination.
Kefan quartz sand production line performance description: This production line has high degree of automation, low running costs, crushing rate, energy saving, large output, less pollution, easy maintenance, to produce sand meet national building sand standard, uniform particle size, particle shape good, with reasonable level.
Quartz sand making machine technical parameters:
sand making machine | rotor width (mm) | rotor width (mm) | rotor width (mm) | rotor width (mm) | rotor width (mm) | rotor width (mm) | rotor width (mm) |
Model | 800×400 | 800×800 | 1000×1000 | 1200×1200 | 1400×1400 | 1600×1600 | 1800×1800 |
Feeding port size(mm) | 400×185 | 550×330 | 1000×350 | 1200×450 | 1500×500 | 1600×550 | 1800×800 |
Feeding size (mm) | <120 | <180 | <180 | <180 | <190 | <190 | <190 |
Discharging size(mm) | <0.3-5 | <0.3-5 | <0.3-5 | <0.3-5 | <0.3-5 | <0.3-5 | <0.3-5 |
stitch width adjustment | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
Cement clinker(T/H) | 20-30 | 35-45 | 45-55 | 100-110 | 100-150 | 170-210 | 250-270 |
Limestone(T/H) | 35-45 | 55-65 | 65-75 | 90-100 | 100-150 | 190-250 | 280-310 |
Matched motor(KW) | 37-45 | 45-55 | 55-75 | 100-132 | 160 | 250 | 315 |
