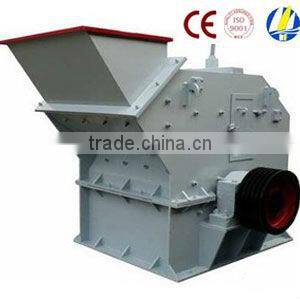

2013 newest cement clinker sand making machine in China

Specifications

cement clinker sand making machine
1)High grinding efficiency;
2)fine grinding,coarse grinding;
3)Simple structure,low cost.





cement clinker sand making machine description:
Our company cement clinker sand making equipment is mainly used for artificial sand and gravel production, our latest research and development of sand production line is a kind of building sand and stone special equipment, it is more outstanding than traditional sand making machine, can save 50% or more, while more simple maintenance, green, long life and other advantages.Finished sand has a particle uniformity, more in line with architectural requirements, is better than the natural sand quality.

cement clinker sand making machine features:
1, high crushing efficiency, with a crushing, coarse grinding function.
2, the structure is simple to install, easy maintenance, low running costs.
3, through the ability of non-broken material, the material moisture content of small, up to 8% moisture content.
4, the product excellent grain type, cubic shape, low flakiness content, suitable for aggregate shaping, artificial sand and stone take highway specifications; bulk density, iron contamination is minimal.
5, the operating noise below 75 decibels (db level), less dust pollution.
6, in the old-fashioned on the basis of the third generation of Sand adds weight wheels, so saving energy, increasing the kinetic energy production efficiency has been greatly improved.
7, in the third generation sand making repairs observation opened the rear door so more conducive to maintenance and observation of the functioning of the device. Added a grate adjustment device for easy adjustment of the particle size sand design more humane .. technology.



cement clinker sand making machine technical parameters:



cement clinker sand making machine	rotor width (mm)	rotor width (mm)	rotor width (mm)	rotor width (mm)	rotor width (mm)	rotor width (mm)	rotor width (mm)
Model	800×400	800×800	1000×1000	1200×1200	1400×1400	1600×1600	1800×1800
Feeding port size(mm)	400×185	550×330	1000×350	1200×450	1500×500	1600×550	1800×800
Feeding size (mm)	<120	<180	<180	<180	<190	<190	<190
Discharging size(mm)	<0.3-5	<0.3-5	<0.3-5	<0.3-5	<0.3-5	<0.3-5	<0.3-5
stitch width adjustment	5-20	5-20	5-20	5-20	5-20	5-20	5-20
Cement clinker(T/H)	20-30	35-45	45-55	100-110	100-150	170-210	250-270
Limestone(T/H)	35-45	55-65	65-75	90-100	100-150	190-250	280-310
Matched motor(KW)	37-45	45-55	55-75	100-132	160	250	315
