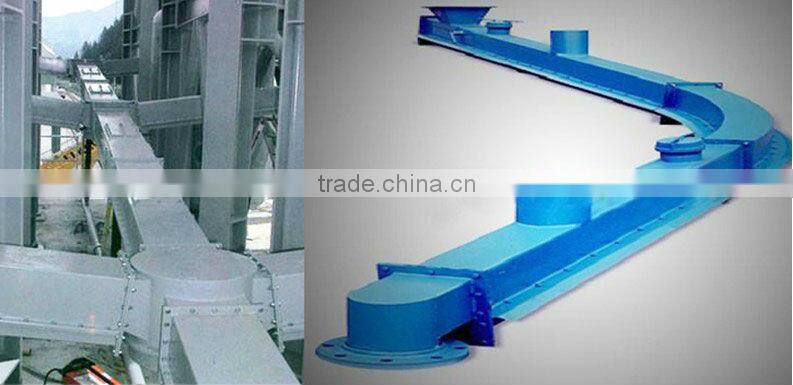

Kefan Air Conveying Chute Used in Cement Plant for Sale

Kefan Air Conveying Chute Used in Cement Plant for Sale thumbnail-1
Kefan Air Conveying Chute Used in Cement Plant for Sale photo-1
US$ 1,000 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, new
Type:
Other, chute
Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Henan Kefan Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
nearest port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, chute
Material Stainless Steel
Material Feature Heat Resistant
Structure Chain Conveyor
Load Capacity depend on model
Place of Origin Henan, China
Brand Name Henan Kefan
Model Number XZ series
Voltage 380v
Power(W) depend on model
Dimension(L*W*H) 200*2000mm
Certification BV/CE/ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Air Conveying Chute
rrosion resistance,wear resistance
2.low moisture absorption,light weight
3.smooth surface,long life

Kefan Air Conveying Chute Used in Cement Plant for Sale



The Characteristics of Air Conveying Chute:

Air Conveying Chute is a widely used conveying powder materials. In cement industry, it often applied to transport cement and raw material powder. During transportation, the air slot is easy to maintain, good sealing, no noise, safe and reliable operation, low consumption of electricity, easy to turn the directions etc. The main component of air chute is breathable layer. This series products use PETS-6 (PET)-based synthetic fabrics. It is a new breathable product with high temperature (up to 150), corrosion resistance, wear resistance, low moisture absorption, light weight, smooth surface and long life.



The conveying equipment is  widely used in metallurgy, building materials, coal, mining, glass, light and food industries lime powder, fly ash, and the flour mill, separator and conveying kiln feed. On the particle size, moisture, fluidization inappropriate use of poor materials.

The Main Technical Data Of Air Conveying Chute:



Specification XZ200 XZ250 XZ315 XZ400 XZ500 XZ630 XZ800
Slot width m m 200 250 315 400 500 630 800
Capacity a=4° Cement T/h 22 40 70 130 220 320 400
Raw material 16 30 55 100 165 245 310
a=6° cement 40 65 120 250 400 610 765
Raw material 30 55 90 185 300 455 565
a=8° cement 50 80 140 300 470 720 900
Raw material 35 65 110 225 355 540 670
a=10° cement 60 100 170 380 570 900 1080
Raw material 45 80 140 285 425 670 800
a=12° cement 70 120 205 455 685 1080 1295
Raw material 50 95 165 340 510 805 960
Slot length Standard part m m 2000
Non-standard part m m 250
Air pressure KPa 4-5.5
Air amount m3/m2.min 1.5-2
Air layer Materials   Synthetic fiber
Width m m 4-6
Temperature-resistance °C 150
Breaking strength N/cm wide 4700
Resiatance Pa 800-1200(when the condition is 2m3/m2.min )
