Sand making machine,reliable sand making machine for sale
Sand making machine,reliable sand making machine for sale:
Our Sand making machine is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand. Zenith B Series Sand making machine is one of the most advanced impact crushers nowadays. It introduces high quality roller bearings like Sweden SKF and America TIMKEN, which ensure the smooth running of main unit. Personalized design is used in upper cap, Sand making machine is easy and convenient to maintain and replace spare parts. Sand Making Machine is our sole patent using central feeding & central cascade feeding, which can be changed based on customers' needs.
Sand making machine working principle:
The entire center feeding: Material falls the feed hopper, then enters the high-speed rotary sling wheel from center feeding hole, which is speeded immediately in the sling wheel. The speed can reach several dozens times of the gravity acceleration. Then Sand making machine is thrown from the sling wheel. First, it is crushed with other rebounded material fell freely from the sling wheel. Then both of them are impacted to the material lining (rock-rock) or strike back block (rock-iron), rebounded and stroke to the top of eddy cavity of Sand making machine in the inclined-up direction. Then it moves along deflection-down, and forms a continuous material curtain with the material from the impellers passage. Just like this, the material is stroke, rubbed, crushed twice or more, then is discharged from the down discharging hole.
Sand making machine Features:
1. The structure is simple, and the operating cost is low.
2. High efficiency, and low consumption.
3.Sand making machine is slightly influenced by the humidity of material, and the max humidity is 8%.
4. Sand making machine is more suitable for crushing mid-hardness materials and high-hardness materials.
5. Its product is cubic, and the density of piling up is high and the iron pollution is low.
6. The working noise is less than 75 decibels and dust pollution is little

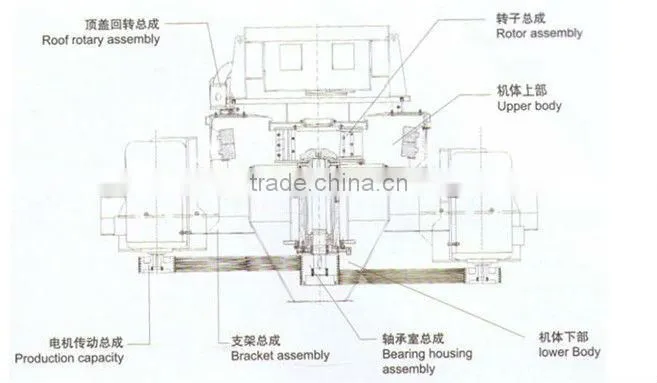

Structure of Sand Making Machine:
Sand making machine specifications:
| Model | Feed at center&sides | Feed at center | Soft Material | Hard Material | REV (r/min) | Power (kw) | Motor Model | Machine Size (mm) |
| Capacity (t/h) | Max.Feeding (mm) | |||||||
| B-7611 | 120-180 | 60-90 | 35 | 30 | 1700-1890 | 4-55×2 | Y250M-4/55 | 4100×2250×2258 |
| B-8518 | 200-260 | 100-130 | 40 | 35 | 1520-1690 | 4-90×2 | Y280M-4/90 | 4140×2280×2425 |
| B-9526 | 300-380 | 150-190 | 45 | 40 | 1360-1510 | 4-132×2 | Y315M-4/132 | 4560×2450×2780 |
| B-1140 | 450-520 | 225-260 | 50 | 45 | 1180-1310 | 4-200×2 | Y315L2-4/200 | 5100×2690×3200 |
Certification:
