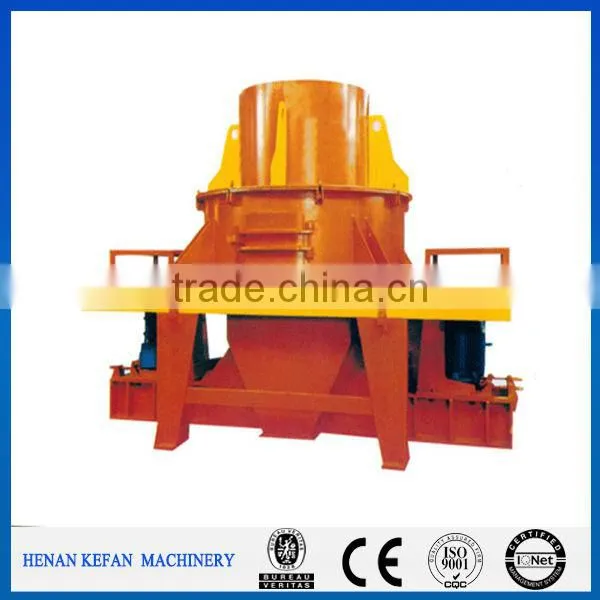

Henan kefan supply new VSI Sand Making Machine
Introduction of VSI Sand Making Machine:
VSI sand making machine is designed by German authoritative experts according to Chinese local working condition. It is a kind of sand making machine of world high-level performance produced exclusively in China. The machine provides high-quality materials especially for motorway,high-speed railway,tall building,city project,hydroelectric damconstruction and concrete mixing station. VSI is the first and the best choice for the field of man-made sand and stone shape.
Simply put, the inverter is a equipment turn low voltage (12 or 24 volts or 48 volts) direct current into 220 volts AC electronic . Because we are usually transfer 220 volts AC rectifier into DC, but the role of the inverter is on the contrary, hence the name. We are in the era of a "mobile" century, mobile communications, mobile recreation and entertainment. In the state of mobilement , not only by battery or battery low-voltage DC are supplied , but also 220 volts AC inverter is indispensable in our daily environment , the inverter can meet this demand.
Advantages of VSI Sand Making Machine:
1. Large capacity and high yield, Compared with the same power equipment, its production increase 30 percent, and is relatively stable.
2. Low consumption of vulnerable parts.
3. Product grain shape excellent.
4. Hydraulic device, easy to maintain.
5. Automatic detection, safe and reliable.
6. Thin oil for lubrication, automatic maintenance.
7. Easy to install, easy to operate.
8. Multi-usage, flexible application.
9. International quality assurance.
10. Pay attention to environmental protection.

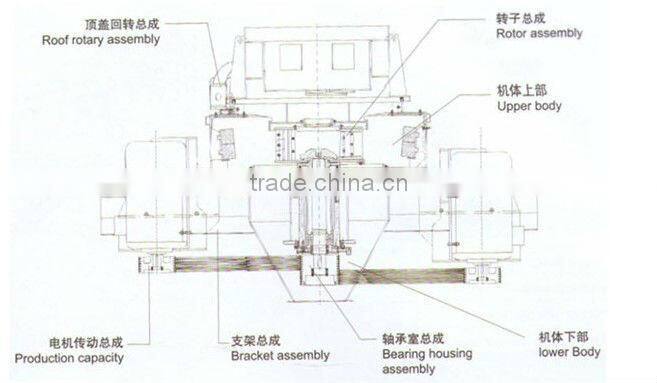

Structure of VSI Sand Making Machine:
Technical Parameters of VSI Sand Making Machine:
| Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | |
| Capacity(t/m) | Feed both at center and at sides | 120-180 | 200-260 | 300-380 | 450-520 |
| Feed at center | 60-90 | 100-130 | 150-190 | 225-260 | |
| Best Feed Size(mm) | Sofe Material | 35 | 40 | 45 | 50 |
| Hard Material | 30 | 35 | 40 | 45 | |
| RotationSpeed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
| Double Motor Power(kw) | 110 | 180 | 264 | 400 | |
| Overall Dimension L*W*H(mm) | 3700*2150*2100 | 4140*2280*2425 | 4560*2447*2778 | 5000*2700*3300 | |
| Weight(t) | 11.8 | 14.5 | 17.8 | 25.6 | |
| Power Supply | 380v 50Hz | ||||
| Vibrating Sensor | Detect Range:0.1-20mm/s continuous and adjustable | ||||
| Lubrication and hydraulic station | Double Motor Power | 2*0.31kw | |||
| Safety assuance | Double oil pumps assure enough oilsupply:automaticswitvh off with no oil stream or hydraulic strength:lower the temperature with cool water in summer;raise the temperature with motor in winter. | ||||
| Overall DimensionL*W*H(mm) | 820*520*1270 | ||||
| Power of oil tank heater | 2kw | ||||
