Specifications

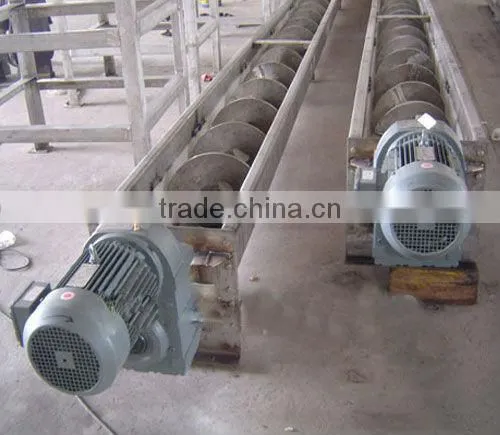

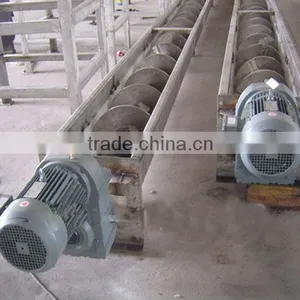

cement screw conveyor1.horizontal and vertical screw conveyor;
2.good sealing, reliable,low cost;
3.BV/CE/ISO9001:2008
Introduction of cement screw conveyor:
This machine is suitable for conveying all kinds of powder, granular and small lump materials, such as coal, gravel, lump coal,sand, cement and cereals. It does not apply to deliver perishable, viscous, easy caking materials.The screw conveyor has simple structure, low making cost,strong sealing, safe and convenient operation. So it is widely used in chemical industry, building materials, metallurgy, food and other departments, in the case of the inclination angle β <20 °, it can transport powder, granular and small pieces of material,whose viscosity is not strong, non-perishable, According to the displacement direction ,the screw conveyor can be divided into two types:the horizontal screw conveyor and the vertical screw conveyor.
Characters of cement screw conveyor:
Simple structure, small cross section size, good sealing, reliable, low cost, easy to loading and unloading in intermediate , conveying direction can also be reverse and convey the opposite two directions at the same time. It can also do stirring, mixing, heating and cooling operations in transport process . it can adjust material flow by the loading gate,but it is unapt to transport perishable, viscous, easy to agglomerate, and large pieces of material.
Main parameters of cement screw conveyor:
| Specification | LS100 | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 | LS1000 | LS1250 | |
| Screw diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | |
| Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 | |
| Technical parameter | n | 140 | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
| Q | 2.2 | 8 | 14 | 24 | 34 | 64 | 100 | 145 | 208 | 300 | 388 | |
| n | 112 | 90 | 80 | 71 | 63 | 56 | 50 | 40 | 32 | 25 | 20 | |
| Q | 1.7 | 7 | 12 | 20 | 26 | 52 | 80 | 116 | 165 | 230 | 320 | |
| n | 90 | 71 | 63 | 56 | 50 | 45 | 40 | 32 | 25 | 20 | 16 | |
| Q | 1.4 | 6 | 10 | 16 | 21 | 41 | 64 | 94 | 130 | 180 | 260 | |
| n | 71 | 50 | 50 | 45 | 40 | 36 | 32 | 25 | 20 | 16 | 13 | |
| Q | 1.1 | 4 | 7 | 13 | 16 | 34 | 52 | 80 | 110 | 150 | 200 | |
Henan Kefan Mining Machinery Co.,Ltd also supply vertical screw conveyor, small screw conveyor and other conveyors,which can meet customers' need.
