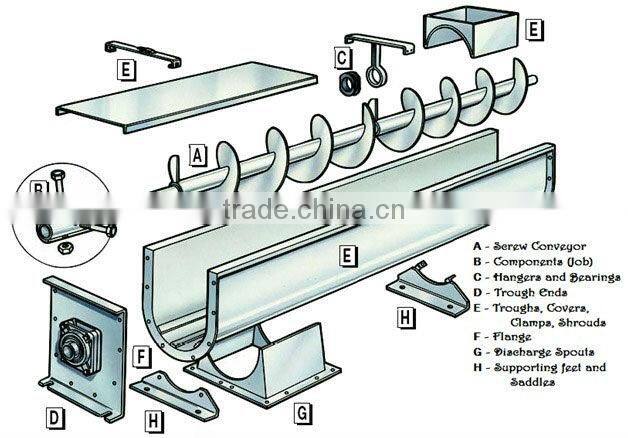

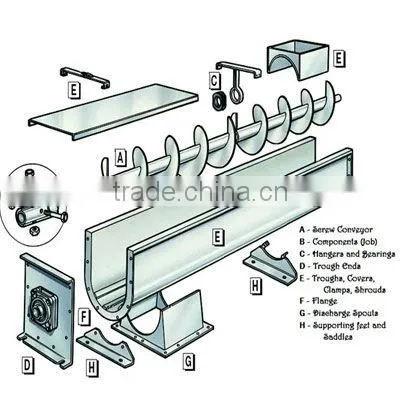

2014 Large capacity screw conveyor feeder in China
- 100 Set / Sets per Month
- nearest port
- T/T Credit Card
Product Details
Type: | Other, Screw Conveyor, LS/GX | Material: | Stainless Steel | ||
Material Feature: | Other, steel | Structure: | Conveyor System | Load Capacity: | depend on model |
Place of Origin: | Henan, China | Brand Name: | KF | Model Number: | LS/GX |
Voltage: | 380 v | Power(W): | depend on model | Dimension(L*W*H): | 100-1250mm |
Certification: | BV/CE/ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Large capacity screw conveyor1.Simple structure,small cross section;
2.good sealing, reliable,low cost;
3.BV/CE/ISO9001:2008
Introduction of large capacity screw conveyor :
This machine is suitable for conveying all kinds of powder, granular and small lump materials, such as coal, gravel, lump coal,sand, cement and cereals. It does not apply to deliver perishable, viscous, easy caking materials.The screw conveyor is commonly known as the auger, it is a transportation equipment and widely used in the minerals, feed, grain, construction.The screw conveyor has simple structure, low making cost,strong sealing, safe and convenient operation. So it is widely used in chemical industry, building materials, metallurgy, food and other departments, in the case of the inclination angle β <20 °, it can transport powder, granular and small pieces of material,whose viscosity is not strong, non-perishable, According to the displacement direction ,the screw conveyor can be divided into two types:the horizontal screw conveyor and the vertical screw conveyor.
Characters of large capacity screw conveyor :
Simple structure, small cross section size, good sealing, reliable, low cost, easy to loading and unloading in intermediate , conveying direction can also be reverse and convey the opposite two directions at the same time. It can also do stirring, mixing, heating and cooling operations in transport process . it can adjust material flow by the loading gate,but it is unapt to transport perishable, viscous, easy to agglomerate, and large pieces of material. The material is easily broken ,screw and trough is easy to wear in the transportation process.Unit power is bigger to maintain sealing of the material and the adequate clearance between screw and spiral trough.
Main parameters of LS / GX large capacity screw conveyor :
Specification | LS100 | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 | LS1000 | LS1250 | |
Screw diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | |
Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 | |
Technical parameter | n | 140 | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
Q | 2.2 | 8 | 14 | 24 | 34 | 64 | 100 | 145 | 208 | 300 | 388 | |
n | 112 | 90 | 80 | 71 | 63 | 56 | 50 | 40 | 32 | 25 | 20 | |
Q | 1.7 | 7 | 12 | 20 | 26 | 52 | 80 | 116 | 165 | 230 | 320 | |
n | 90 | 71 | 63 | 56 | 50 | 45 | 40 | 32 | 25 | 20 | 16 | |
Q | 1.4 | 6 | 10 | 16 | 21 | 41 | 64 | 94 | 130 | 180 | 260 | |
n | 71 | 50 | 50 | 45 | 40 | 36 | 32 | 25 | 20 | 16 | 13 | |
Q | 1.1 | 4 | 7 | 13 | 16 | 34 | 52 | 80 | 110 | 150 | 200 |
Screw diameter(mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
Screw pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
Rotate speed (r/min) Quantity delivered(m3/h) | 140 2.2 | 112 8 | 100 14 | 90 24 | 80 34 | 71 64 | 63 100 | 50 145 | 40 208 | 32 300 | 25 388 |
Rotate speed (r/min) Quantity delivered(m3/h) | 112 1.7 | 90 7 | 80 12 | 71 20 | 63 26 | 56 52 | 50 80 | 40 116 | 32 165 | 25 230 | 20 320 |
Rotate speed (r/min) Quantity delivered(m3/h) | 90 1.4 | 71 6 | 63 10 | 56 16 | 50 21 | 45 41 | 40 64 | 32 94 | 25 130 | 20 180 | 16 260 |
Rotate speed (r/min) Quantity delivered(m3/h) | 71 1.1 | 50 4 | 50 7 | 45 13 | 40 16 | 36 34 | 32 52 | 25 80 | 20 110 | 16 150 | 13 200 |
Henan Kefan Mining Machinery Co.,Ltd also supply vertical screw conveyor, small screw conveyor and other conveyors,which can meet customers' need.
