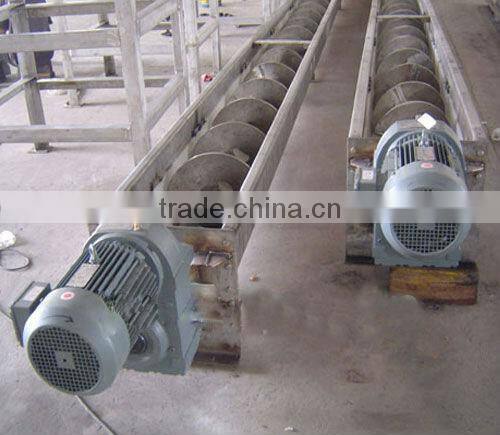

Large Capacity LS Automatic Screws Conveyor for Sale

Specifications

automatic screws conveyor
1.Simple structure,small cross section;
2.good sealing, reliable,low cost;
3.easy loading and unloa

Introduction of automatic screws conveyor :

LS series  automatic screws conveyor is widely used in fly ash, cement powder, gypsum powder and powder materials measure. LS series cement  spiral screw conveyor is by the three high-precision tension sensor vertical lifting, high precision measurement,stability, low failure rate, easy maintenance. overflow screw feed speed part is that the erosion control material, the pressure and stable materials, while spiral scales according to the output signal,to corresponding adjustment to the feeding amount of size, have slip speed and frequency control two kinds of speed mode, LS series cement  spiral screw conveyor generally use frequency control, control is relatively stable.



LS series automatic screws conveyor :

1, Supporting the use of transducer, for speed control, transport, measurement of powdery material

 2,Without installing speed sensor, can use as transmission speed screw conveyor





Main parameters of LS / GX automatic screws conveyor :

Specification		LS100	LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Screw diameter (mm)		100	160	200	250	315	400	500	630	800	1000	1250
Pitch (mm)		100	160	200	250	315	355	400	450	500	560	630
Technical parameter	n	140	112	100	90	80	71	63	50	40	32	25
	Q	2.2	8	14	24	34	64	100	145	208	300	388
	n	112	90	80	71	63	56	50	40	32	25	20
	Q	1.7	7	12	20	26	52	80	116	165	230	320
	n	90	71	63	56	50	45	40	32	25	20	16
	Q	1.4	6	10	16	21	41	64	94	130	180	260
	n	71	50	50	45	40	36	32	25	20	16	13
	Q	1.1	4	7	13	16	34	52	80	110	150	200





Screw diameter(mm)	100	160	200	250	315	400	500	630	800	1000	1250
Screw pitch (mm)	100	160	200	250	315	355	400	450	500	560	630
Rotate speed (r/min) Quantity delivered(m3/h)	140 2.2	112 8	100 14	90 24	80 34	71 64	63 100	50 145	40 208	32 300	25 388
Rotate speed (r/min) Quantity delivered(m3/h)	112 1.7	90 7	80 12	71 20	63 26	56 52	50 80	40 116	32 165	25 230	20 320
Rotate speed (r/min) Quantity delivered(m3/h)	90 1.4	71 6	63 10	56 16	50 21	45 41	40 64	32 94	25 130	20 180	16 260
Rotate speed (r/min) Quantity delivered(m3/h)	71 1.1	50 4	50 7	45 13	40 16	36 34	32 52	25 80	20 110	16 150	13 200



Henan Kefan Mining Machinery Co.,Ltd also supply vertical screw conveyor, small screw conveyor and other conveyors,which can meet customers' need.
