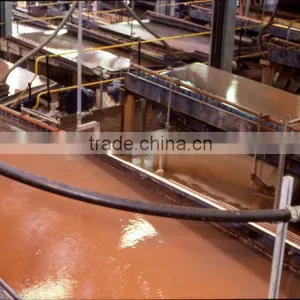

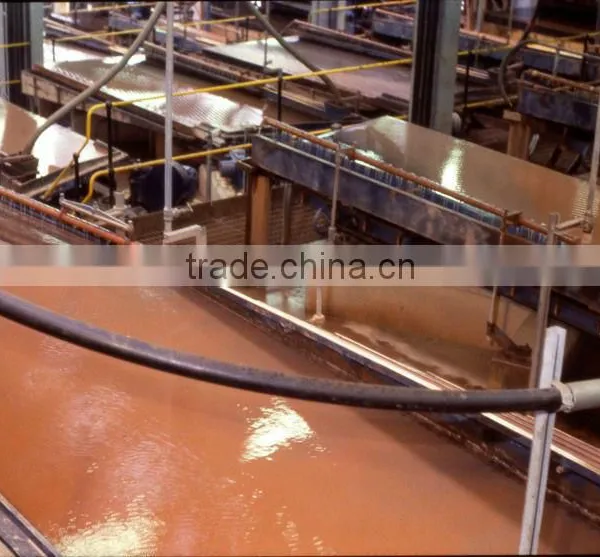

Help CenterProfessional Manufacture Hot Tungsten Ore Shaking Tables for Sale
Related Products
-
ISO;CE;BV Approved Low Power Consumption Wet Shaking Tables SeparationUS$ 1,000 - 9,000MOQ: 1 Set -
Widely Used Large Handling Capacity Mineral Magnetic Separation With Good QualityUS$ 1,000 - 9,000MOQ: 1 Set
-
New National Standard High Efficient Wet Drum Magnetic Separating MachineUS$ 1,000 - 9,000MOQ: 1 Set
-
Unique Designed High Function Large Capacity Spiral Classifier Equipment for SandUS$ 1 - 999.999MOQ: 1 Set
-
Professional Manufacture Direct Selling Mining Equipment Spiral Classifiers With Quality GuaranteedUS$ 1,000 - 9,000MOQ: 1 Set
Applications:
Shaking table is one of the important equipment of beneficiation. It is widely used in the selection of tungsten, sn, molybdenum, plumbum, zinc, niobium and other rare metals and precious metal ores, but also can be used for the selection of iron, manganese ore and coal.
Features & advantages:
1.Stiffness and strength is big;
2.Low water absorption, no weight gain;
3.Good wear resistance of the working surface;
4.Resist chemical corrosion, be able to endure acid and alkali, don't avoid agentia in the mineral pulps ;
5.Good weather resistance, shape stability;
6.Good sorting performance ,stable indicators;
Structures:
The device is mainly made up of the bedside, motor,adjustable slope device, bed, mine shafts, tank, reflex bar and lubrication system ,8 parts.
Technical Parameters Of shaking table
| Name | Coarse Sand Bed Surface | Fine Sand Bed Surface | Slime Bed Surface | |
| Bed Surface Size | Length (mm) | 4450 | 4450 | 4450 |
| Drive End Width (mm) | 1855 | 1855 | 1855 | |
| Concentrate End Width(mm) | 1546 | 1546 | 1546 | |
| Maximum Feed Size (mm) | 2 | 0.5 | 0.15 | |
| Feed Quantity (t/h) | 30-60 | 10-20 | 15-25 | |
| Feed Concentration (%) | 25-30 | 20-25 | 15-25 | |
| Route (mm) | 16-22 | 11-16 | 8-16 | |
| Frequency ( t/s) | 45-48 | 48-53 | 50-57 | |
| Bed Surface Transverse Slope(degree) | 2.5-4.5 | 1.5-3.5 | 1-2 | |
| Separation Area (m2) | 7.6 | 7.6 | 7.6 | |
| Bed Surface Section Shape | rectangle | sawtooth | triangle | |
| Electric Power (kw) | 1.1 | 1.1 | 1.1 | |
| Drive Type | Eccentric connecting rod mechanism | |||
