An overview of XJK-0.35 lead zinc flotation machine for sale
Flotation machine, which is also called flotation separator, is applied for separating nonferrous metal and ferrous metal
and nonmetal such as fluorite and talc. Compared with flotation cells, its uniqueness lies in big size, lower power loss
and light wear and tear of the impeller.
Features List of Flotation machine
(1)The capacity of air suction is large; the power consumption is low.
(2Every machine has three functions of air suction, slurry suction and flotation simultaneously being unique in flotation
return circuit without need for any supplement and equipment; the circuit change is convenient for horizontal location.
(3)The slurry cycle is rational; the settlement of coarse sand can be reduced into full play.
(4)The regulation is convenient to equip auto and electro-controlling arrangements for slutty level.

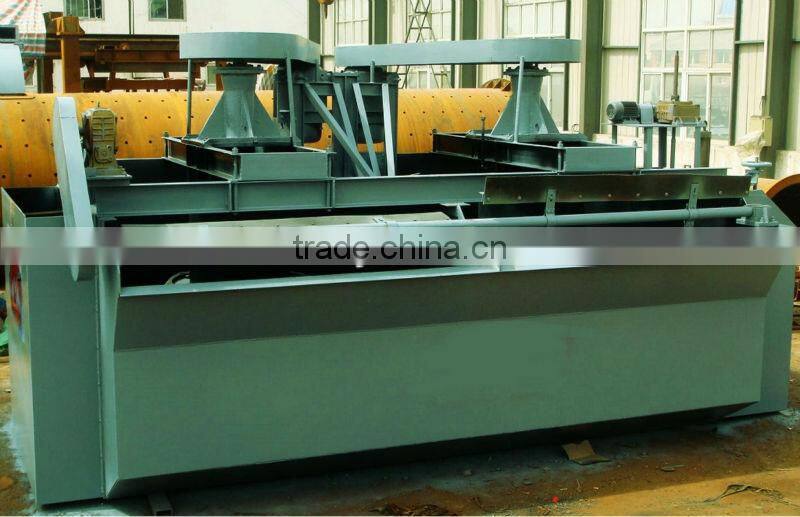

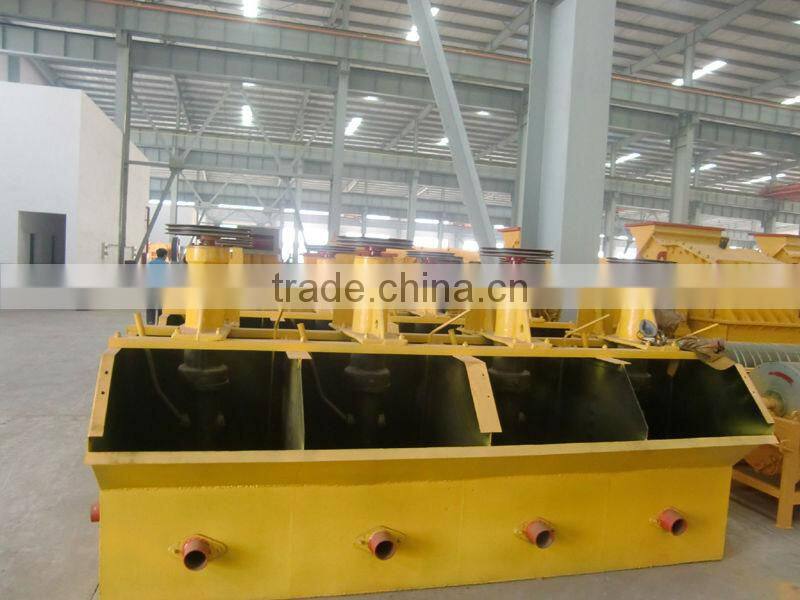

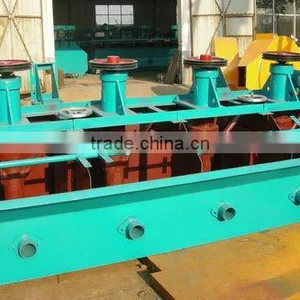

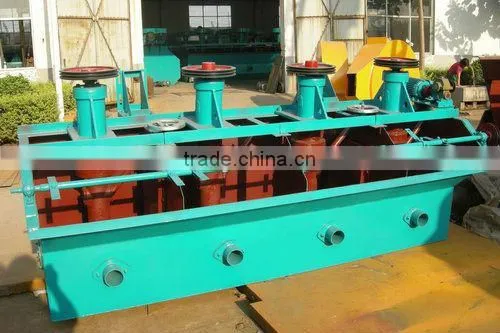

Pictures of flotation machine
Technical parameters of flotation machine
| Model | XJK-0.35(3A) | ||
| Effective Volume(m3) | 0.35 | ||
| Production Capacity(m3/min) | 0.18~0.4 | ||
| Rotate Speed(r/min) | 470 | ||
| Impeller Diameter(mm) | 300 | ||
| Matched Motor | Model | Rotor | Y90L-4 |
| Scraper | Y90S-4 | ||
| Power(kw) | Impeller Motor | 1.5 | |
| Scraper Motor | 1.1 | ||
| Weight(T/slot) | 0.43 | ||
We are aims to provide the better products and the most economic and reasonable solution to you, our technical experts are preparing to provide the technical assistance to you at any time, and we hope to establish a long-term relation and pursuit a higher value cooperation with you.
