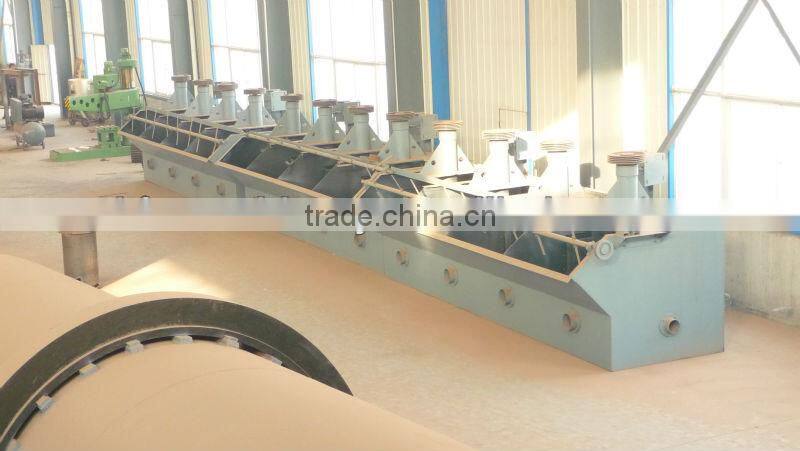

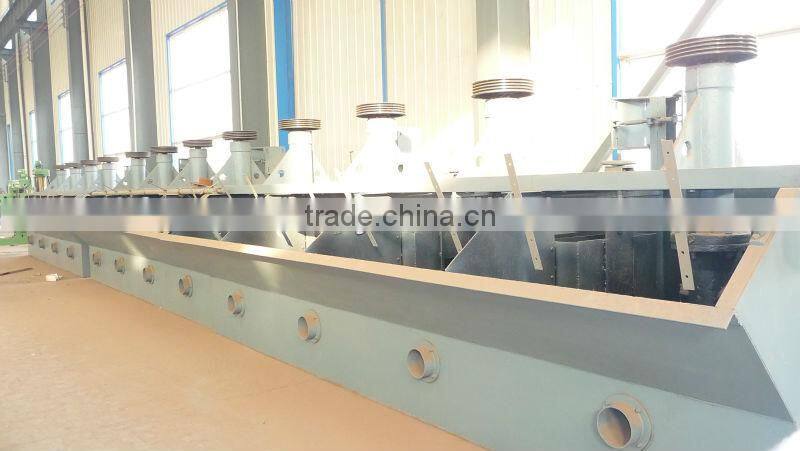

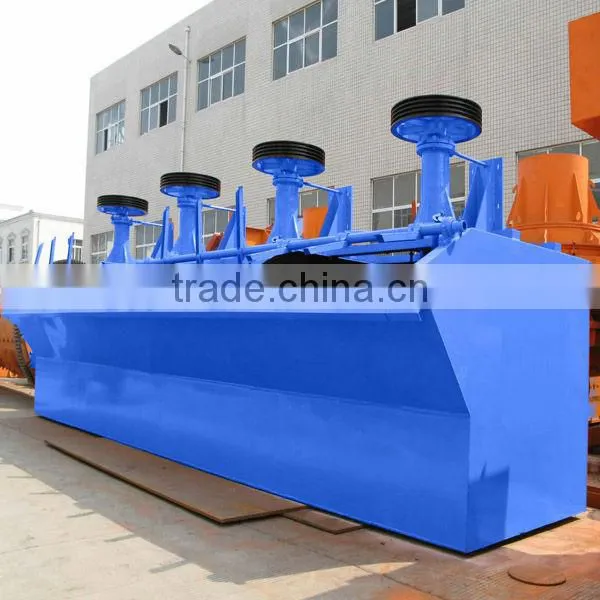

Main application of flotation machine:
The flotation machine is used for the separation of the nonferrous black metal as well as the separation of the non-metallic materials such as the coal fluorite and the talc. The impeller of the flotation machine is driven by the transmission
spinning of the engine triangle to form the centrifugal formation and produce the negative pressure.

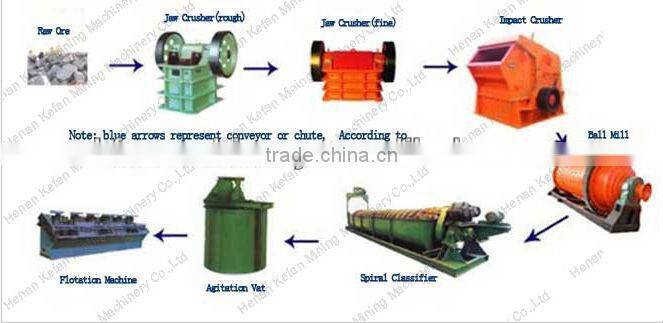

Process of Flotation Benificiation
1.The ores will be crushed after exploded.
2.Then the crushed materials will be sent to the ball mill for pulverizing and grinding.
3.The finished products will be classified, products with unsuitable size will be sent back to the ball mill, while suitable
ones will be sent to the Flotation System.
4.Some medicament will be added to separate target materials from others.
5.After going through the flotation system, they will be concentrated and filter pressed, and then get the final products.
6.The whole process is finished.
Relative equipment of flotation machine
Technical parameters of flotation machine
| Model | XJK-0.35(3A) | XJK-0.62(4A) | XJK-1.1(5A) | XJK-2.8(6A) | XJK-5.8(7A) | ||
| Effective Volume(m3) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 | ||
| Production Capacity(m3/min) | 0.18~0.4 | 0.3~0.9 | 0.6~1.6 | 1.5~3.5 | 3~7 | ||
| Rotate Speed(r/min) | 470 | 400 | 330 | 280 | 240 | ||
| Impeller Diameter(mm) | 300 | 350 | 500 | 600 | 750 | ||
| Matched Motor | Model | Rotor | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6(Y225M-6) |
| Scraper | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | ||
| Power(kw) | Impeller Motor | 1.5 | 3 | 5.5 | 11 | 22(30) | |
| Scraper Motor | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Weight(T/slot) | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 | ||
About us
Henan Kefan Mining Machinery Co., Ltd is a modern and high-tech enterprise established with a
state level research. It is located in the HI-TECH industry development zone in Zhengzhou
In addition the drying and calcined manufactured by Kefan popular with users in over 10 provinces. According to customers' demand, we supply the services in a flexible way not only the traditional services but also the Internet on-line services. Our engineer is 24 hours online.We try our best to carve out market and provide services all the time. Before customers' purchase, we will send our engineers to customers' site to design the best flow chart; after purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
