The Application of Ball Mill
The ball mill is the key equipment that material to be broken, and then to be smashed . It is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics production industry,have dry or wet grinding on a variety of ores and other grind-able materials.

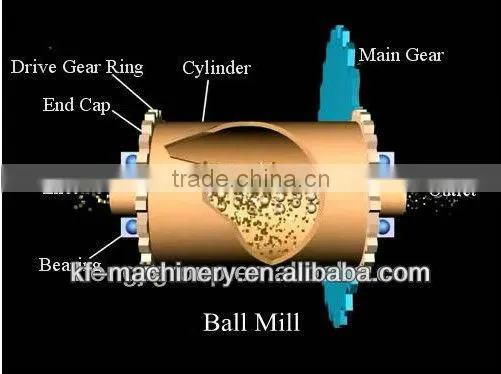

Working Principle of Ball Mill
The ball mill has horizontal cylindric rotating device, outer rotating with gear, two warehouses, is lattice-type ball mill. Material from the feeder device throuth hollow shaft of feeder evenly into the first warehouse of ball mill , there are ladder liner and ripple liner in the warehouse , built by steel ball with different specifications , rotating cylinder produces centrifugal force take the ball to a certain height then fall,have a impact of the thumping and grinding for the material. After the material in the first warehouse reach coarse grinding,pass throuth single-wall partition into the second position, the warehouse lined with flat lining and steel balls in it ,have further grinding for the material . Powder discharged through the discharging plate to complete the grinding operation.
Ball Mill's Technical Parameters
| Model | Cylinder Speed (r/min) | Ball Charge (t) | Feed Particle Size (mm) | Discharge Size (mm) | Output (t/h) | Motor Power (kw) | Weight (t) |
| 900*1800 | 38 | 1.5 | <=20 | 0.075 - 0.89 | 0.65 - 2 | 18.5 | 3.6 |
| 900*2100 | 38 | 1.3-1.4 | <=15 | 0.075 - 0.83 | 0.7 - 3.5 | 18.5 | 3.9 |
| 900*3000 | 38 | 2.7 | <=20 | 0.075 - 0.89 | 1.1 - 3.5 | 22 | 4.5 |
| 1200*2400 | 32 | 3.8 | <=25 | 0.075 - 0.6 | 1.5 - 4.8 | 30 | 11.5 |
| 1200*2800 | 32 | 3.3-3.5 | <=25 | 0.075 - 0.6 | 2 - 6 | 30 | 13 |
| 1200*4500 | 32 | 7 | <=25 | 0.074 - 0.4 | 1.6 - 5.8 | 45 | 13.8 |
| 1500*3000 | 27 | 8 | <=25 | 0.074 - 0.4 | 2 - 5 | 75 | 17 |
| 1500*3500 | 27 | 6.75-6.4 | <=25 | 0.075 - 0.4 | 3 - 7 | 75 | 17.5 |
| 1500*4500 | 27 | 14 | <=25 | 0.074 - 0.4 | 3.5 - 12 | 110 | 21 |
| 1500*5700 | 27 | 15 | <=25 | 0.074 - 0.4 | 3.5 - 8 | 115 | 24.7 |
| 1830*3000 | 24 | 18 | <=25 | 0.074 - 0.4 | 4 - 10 | 130 | 28 |
| 1830*3600 | 24 | 10.6-11.35 | <=25 | 0.075 - 0.4 | 5 - 22 | 130 | 33.5 |
| 1830*7000 | 24 | 25 | <=25 | 0.074 - 0.4 | 7.5 - 17 | 210 | 36 |
| 2100*3600 | 22 | 14-15.2 | <=25 | 0.075 - 0.4 | 15 - 36 | 370 | 46.8 |
| 2200*5500 | 21 | 30 | <=25 | 0.074 - 0.4 | 10 - 22 | 210 | 48.5 |
| 2200*6500 | 21 | 31 | <=25 | 0.074 - 0.4 | 14 - 26 | 380 | 52.8 |
| 2200*7500 | 21 | 33 | <=25 | 0.074 - 0.4 | 16 - 29 | 380 | 56 |
| 2400*3000 | 20.6 | 15.5-16.6 | <=25 | 0.075 - 0.4 | 22 - 24 | 245 | 59 |
| 2400*4500 | 21 | 30 | <=25 | 0.074 - 0.4 | 8.5 - 60 | 380 | 65 |
| 2700*3600 | 20.6 | 39 | <=25 | 0.074 - 0.4 | 12 - 70 | 400 | 91.3 |
| 2700*4000 | 20.7 | 40 | <=25 | 0.074 - 0.4 | 12 - 80 | 400 | 94 |
| 2700*4500 | 20.7 | 48 | <=25 | 0.074 - 0.4 | 12 - 90 | 430 | 102 |
| 3200*4500 | 18 | 65 | <=25 | 0.075 - 0.4 | set according to the process conditions | 800 | 137 |
Flow chart
Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.
Please free contact us!
