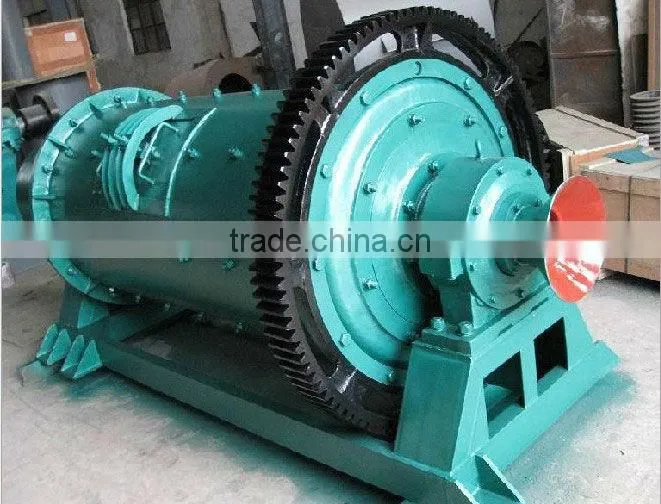

Help CenterHigh Efficiency Low Power Consumption Ball Milling Machine for Sale
Related Products
-
Grinding Ball For Cement Mill With High Advanced TechnologyUS$ 1,000 - 50,000MOQ: 1 Set -
Low Price Cement Ball Mill With High Advanced TechnologyUS$ 1,000 - 50,000MOQ: 1 Set
-
Slag Grinding Ball Mill With High Advanced TechnologyUS$ 1,000 - 50,000MOQ: 1 Set
-
Wet and Dry Process Ball Mill With High Advanced TechnologyUS$ 1,000 - 50,000MOQ: 1 Set
-
Low Operation Cost Dry Processing Ball MillUS$ 1,000 - 99,999MOQ: 1 Set
The Application of Ball Mill
The ball mill is the key equipment that material to be broken, and then to be smashed . It is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics production industry,have dry or wet grinding on a variety of ores and other grind-able materials.
Working Principle of Ball Mill

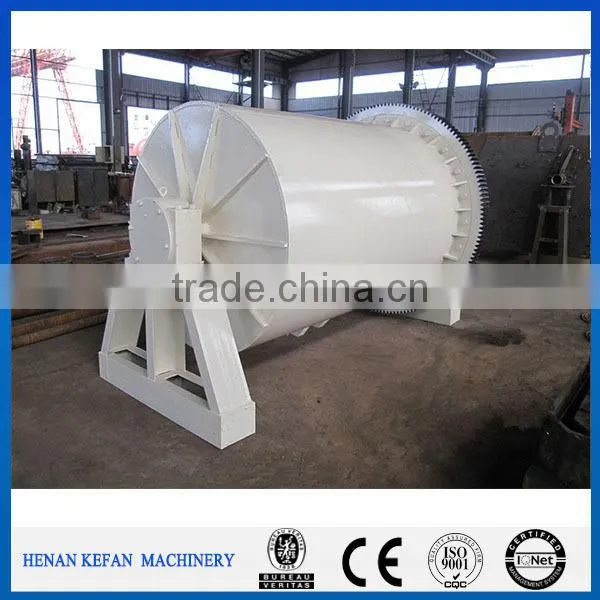

The ball mill has horizontal cylindric rotating device, outer rotating with gear, two warehouses, is lattice-type ball mill. Material from the feeder device throuth hollow shaft of feeder evenly into the first warehouse of ball mill , there are ladder liner and ripple liner in the warehouse , built by steel ball with different specifications , rotating cylinder produces centrifugal force take the ball to a certain height then fall,have a impact of the thumping and grinding for the material. After the material in the first warehouse reach coarse grinding,pass throuth single-wall partition into the second position, the warehouse lined with flat lining and steel balls in it ,have further grinding for the material . Powder discharged through the discharging plate to complete the grinding operation.
Ball mill's installation program
Energy-saving ball mill should be installed in the solid concrete basis. Ball mill's foundation design and construction consult ball mill assembly diagram and foundation drawing. In order to guarantee during using process,the positional accuracy of ball mill's parts don't change greatly,ball mill's foundation should use whole block type structure. Concrete foundation pressure strength can be more than 75% to install ball mill. Before installing, inspecte the basic quality,requiring concrete don't have defects affecting strength,reserve hole's quantity and position accords with the requirements, reserve hole don't have sundry and water, no pollution. Adopt the "ground method" for installation work, based on the surface should be embedded in "the center mark plate". Before installation,draw all the center line on the basis and in the "center scale board" made marked impact point mark as centerline standard during installation.Before lifting,check and accept the ball mill's parts totally,if find problems,dispose in timely.
1, main bearing part's specific requirements consults main bearing parts assembly drawing.
2, barrel part consults rotary part assembly drawing.
3, transmission part consults drive part assembly drawing.
4, the whole relative position consults general assembly drawing.
Ball Mill's Technical Parameters
| Model | Cylinder Speed (r/min) | Ball Charge (t) | Feed Particle Size (mm) | Discharge Size (mm) | Output (t/h) | Motor Power (kw) | Weight (t) |
| 900*1800 | 38 | 1.5 | <=20 | 0.075 - 0.89 | 0.65 - 2 | 18.5 | 3.6 |
| 900*2100 | 38 | 1.3-1.4 | <=15 | 0.075 - 0.83 | 0.7 - 3.5 | 18.5 | 3.9 |
| 900*3000 | 38 | 2.7 | <=20 | 0.075 - 0.89 | 1.1 - 3.5 | 22 | 4.5 |
| 1200*2400 | 32 | 3.8 | <=25 | 0.075 - 0.6 | 1.5 - 4.8 | 30 | 11.5 |
| 1200*2800 | 32 | 3.3-3.5 | <=25 | 0.075 - 0.6 | 2 - 6 | 30 | 13 |
| 1200*4500 | 32 | 7 | <=25 | 0.074 - 0.4 | 1.6 - 5.8 | 45 | 13.8 |
| 1500*3000 | 27 | 8 | <=25 | 0.074 - 0.4 | 2 - 5 | 75 | 17 |
| 1500*3500 | 27 | 6.75-6.4 | <=25 | 0.075 - 0.4 | 3 - 7 | 75 | 17.5 |
| 1500*4500 | 27 | 14 | <=25 | 0.074 - 0.4 | 3.5 - 12 | 110 | 21 |
| 1500*5700 | 27 | 15 | <=25 | 0.074 - 0.4 | 3.5 - 8 | 115 | 24.7 |
| 1830*3000 | 24 | 18 | <=25 | 0.074 - 0.4 | 4 - 10 | 130 | 28 |
| 1830*3600 | 24 | 10.6-11.35 | <=25 | 0.075 - 0.4 | 5 - 22 | 130 | 33.5 |
| 1830*7000 | 24 | 25 | <=25 | 0.074 - 0.4 | 7.5 - 17 | 210 | 36 |
| 2100*3600 | 22 | 14-15.2 | <=25 | 0.075 - 0.4 | 15 - 36 | 370 | 46.8 |
| 2200*5500 | 21 | 30 | <=25 | 0.074 - 0.4 | 10 - 22 | 210 | 48.5 |
| 2200*6500 | 21 | 31 | <=25 | 0.074 - 0.4 | 14 - 26 | 380 | 52.8 |
| 2200*7500 | 21 | 33 | <=25 | 0.074 - 0.4 | 16 - 29 | 380 | 56 |
| 2400*3000 | 20.6 | 15.5-16.6 | <=25 | 0.075 - 0.4 | 22 - 24 | 245 | 59 |
| 2400*4500 | 21 | 30 | <=25 | 0.074 - 0.4 | 8.5 - 60 | 380 | 65 |
| 2700*3600 | 20.6 | 39 | <=25 | 0.074 - 0.4 | 12 - 70 | 400 | 91.3 |
| 2700*4000 | 20.7 | 40 | <=25 | 0.074 - 0.4 | 12 - 80 | 400 | 94 |
| 2700*4500 | 20.7 | 48 | <=25 | 0.074 - 0.4 | 12 - 90 | 430 | 102 |
| 3200*4500 | 18 | 65 | <=25 | 0.075 - 0.4 | set according to the process conditions | 800 | 137 |
Flow chart
Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.
Please free contact us!
