ZL50 YN 959G Pay Loader China Shan Dong Taian Luneng Machinery

ZL50 YN 959G Pay Loader China Shan Dong Taian Luneng Machinery photo-1

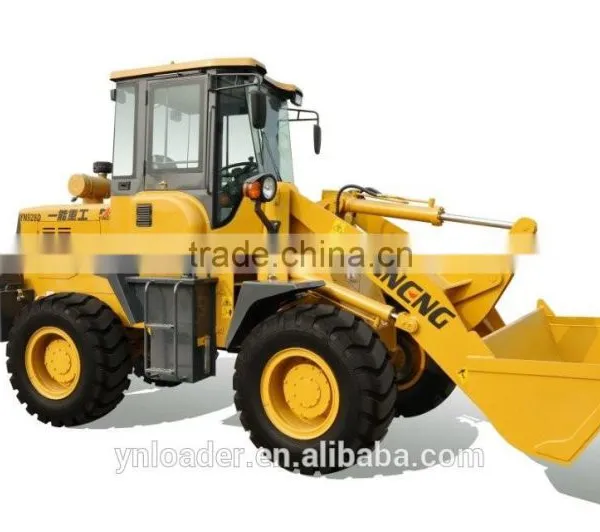

ZL50 YN 959G Pay Loader China Shan Dong Taian Luneng Machinery photo-2
ZL50 YN 959G Pay Loader China Shan Dong Taian Luneng Machinery photo-3

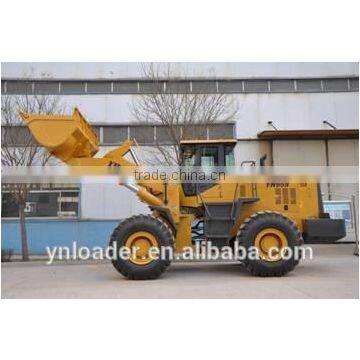

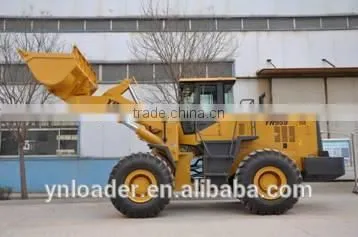

ZL50 YN 959G Pay Loader China Shan Dong Taian Luneng Machinery photo-4

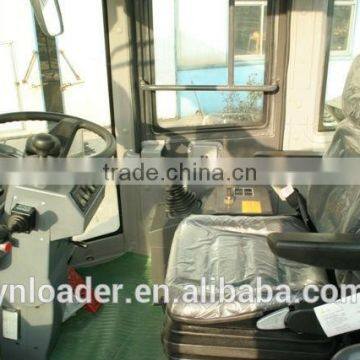

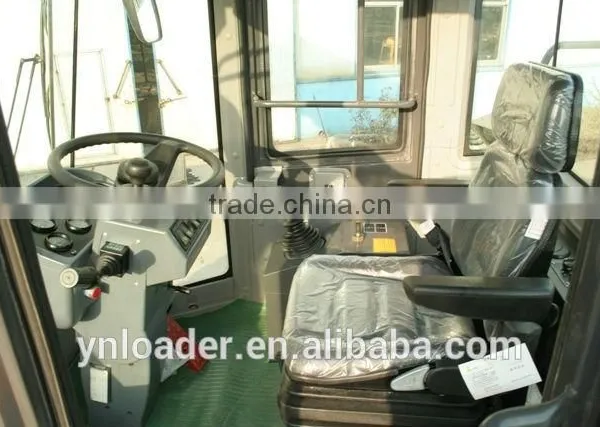

ZL50 YN 959G Pay Loader China Shan Dong Taian Luneng Machinery photo-5

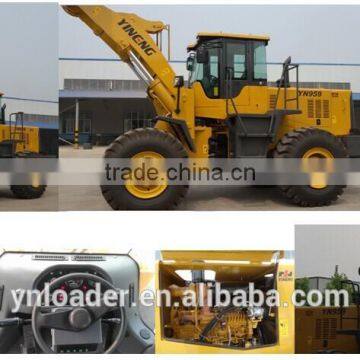

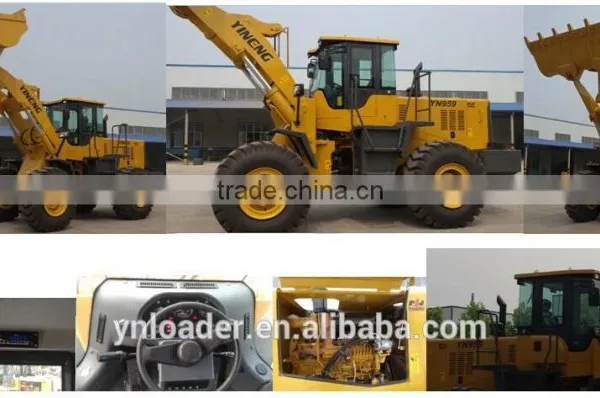

ZL50 YN 959G Pay Loader China Shan Dong Taian Luneng Machinery photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YN (yineng)LN(Luneng)
Model Number:
YN959G wheel Loader
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name YN (yineng)LN(Luneng)
Model Number YN959G wheel Loader
After-sales Service Provided Overseas service center available





ISO9001:2008 certificate

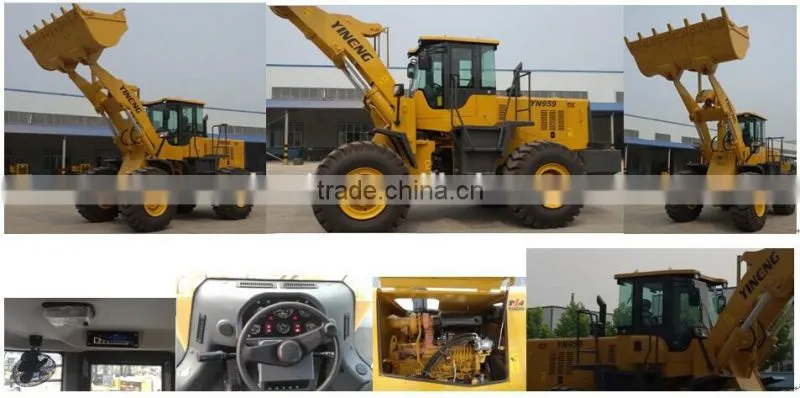

ZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machinery



1.  Features:



* Shangchai Caterpillar tech SC11CB220G2B1 engine is adopted, large torque backup and strong power.



*Hangzhou Advance Gear Group WG180 torque converter and fix-shaft gearbox, with ZF technology.



*Electro-hydraulic control, 4 forward and 3 reverse,



*Single lever pilot control system makes operation easy and comfortable.



*Strengthened axles owns large bearing capacities and high reliability.



*Twin pump merging hydraulic system makes lower consumption and excellent performance.



*The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.



*Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.



*Air over hydraulic brake system; eight caliper disc brakes.



*Air break control, expand hoof type parking brake and emergency brake.



*Large space articulated frame makes operation and traveling stable.



*Working device with automatically leveling ability at high position.



*Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.



* Integral, luxury instrument board.



* New, luxury cabin









2.Main Specifications:



Item

Specification

Item

Specification

Bucket capacity

3m³

Min. turning radius(outside of rear wheel)

6360mm

Rated load

5000kg

Steering angle

35°

Dumping height

3100mm

Min. ground clearance

478mm

Dumping reach

1280mm

Wheel base

3200mm

Max. speed

6s

Wheel tread

2250mm

Max. breakout force

38km/h

Rated power

162kW/2200rpm

Max. breakout force

170kN

Tyre

23.5-25

Max. drawing force

150kN

Overall dimensions

7960*3070*3490mm

Max. grade ability

28°

Operating weight

17000kg



Remark:Joystick control, electronic control, ZF TECH WG180 gearbox, heavy chassis for standard







3. Quality certificate:



(1)CE Approved.



(2)Obtained the certificate of ISO9001:2008.



(3)Manufacturing license number: TS2510025-2009.











4. Others:



(1)Packing: 1 unit naked within 1 x 40HQ container



(2) Delivery time: 40 days



(3)Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.



(4) Guarantee Period: One year



(5)Offer Validity: 30 days



Please send your inquiry details in the below for freesample,click"send!



Our workshop:

ZL50 YN 959G pay loader china shan dong taian Luneng machinery

OEM of Liu Gong,Foton Lovol and Power Plus



ZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machinery





YN 959 Common model:






 ZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machineryZL50 YN 959G pay loader china shan dong taian Luneng machinery

Company Information



Shandong Yineng Heavy Industry Co.,Ltd (Taian Luneng Machinery Co.,Ltd) was found in 1999, is a collection of development and production as one of the engineering machinery manufacture enterprise. It is Situated at the foot of the world famous Mount.Tai, the main products are YN series wheel loaders, with more than 20 different models loaders in total. With 10000 units of annual production capacity, YINENG has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center. It also obtained the Special Equipment Production License and a member of China Machinery Council as well. The company expanded the scale in 2010 again and established Shandong Yineng Heavy Industry Co.,Ltd, It also has “Taian Yineng Hydraulic Co., Ltd ”, “Taian Luneng Import & Export Co., Ltd”, “Taian Luneng Trading Co., Ltd” and “Taian Luneng Frame Co., Ltd” as branches.

Always following the philosophy of “Prosper enterprise with super quality products; to create YINENG brand”, YINENG considers products quality as the life of enterprise and control the quality strictly to strive to fine products. Customers’ needs as the direction of products development and “to build the top brand of small loader” as striving target. YINENG has won wide market with excellent products, better service and reasonable price. YINENG products are not only popular in more than 20 domestic provinces and cities, but also exported to Kazakhstan, Indonesia, UAE, Saudi Arabia, Syria, Iran, Brazil, Venezuela, Nigeria, South Africa, Australia, etc.



Agent Supporting Services


Technical Guidance:

1. Provide the video for technical guidance
2. Factory send technician to agent country for technical guidance three times per year
3. Agent also could send technician to our factory to learn technology
Training Support: 1. Provide the video for training


2. Factory send technician to agent country for training three times per year
3. Agent also could send technician to our factory to learn technology


Marketing Support:Factory will provide any way to help the agent to promote, such as fair....


After-sale Service:

Factory provide one year or 2000 hours after sales service in worldwide, Agent shall provide local technicians and staffs to satisfy the management , operation and training of after sale service, and provide workshop, warehouse, office and other facilities to support a sustained after sale service.


Commission & Profits: Agent could get 3% to 10% commission according to the size of the profit.
