Home > Products > Steel Bar Cutting Machine > steel bar cutting machine, ebar cutting machineGQ40

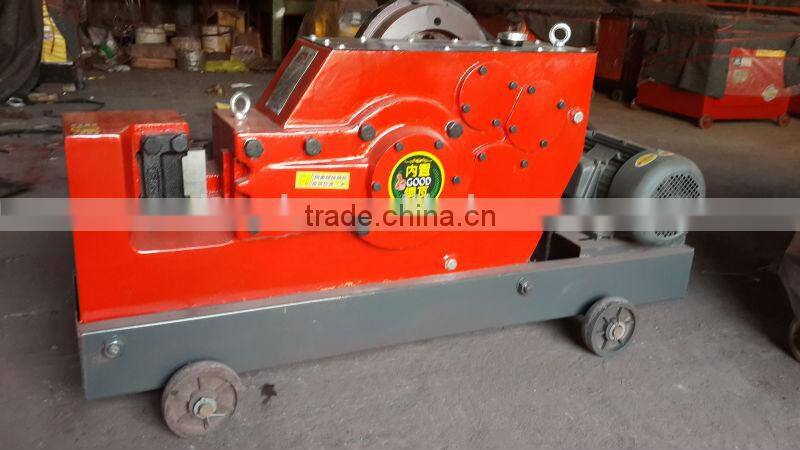

steel bar cutting machine, ebar cutting machineGQ40
- 1000 Set / Sets per Month
- SHANGHAI
- T/T L/C Credit Card PayPal
- REBOUND CNC plasma cutting machinery with bevel head 30mm
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | HARSLE |
Model Number: | HS40 | Voltage: | Local voltage | Rated Power: | 3KW |
Dimension(L*W*H): | 1190*450*680 | Weight: | 500KG | Certification: | CE |
Warranty: | 1 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Free shipping2.Best delivery
steel bar cutting machine, ebar iron cutting machine
HARSLE Steel bar cutting machine advantage:
1.Fine steel reinforced body, through quenched and tempered treatment,internal stress are released,never broken,attrition efficiency of slideway become more than 10times.
2.The head of machine is solid and never break.
3.Bigger gear make transmission strength more higher, it’s made of 40CrMuC ,inert quenched and tempered treatment processing,service life can be up to 10 years, reduce maintenance costs.
4.9sicr cutter through quenching process,more durable
5.Knife with all sides bevel design, never fracture, it’s 4 times stronger than usual knife.
6.Adopt enclosed structure, good lubrication performance, one time for refueling (8 to 12 kg) can work continuously for 3 months
7.Equipped with high strength grade 8.8 side cover, bolts never loose, make the cut off more stable.
8.Heavier fly wheel and increasing connecting rod eccentricity make the cutting force more stronger, equipped with circular knife, cut more smooth.
9.Pure copper parts make the lifetime of axis and gear much longer
10.With fully enclosed safety hood, works more safe
11.Adopt high quality rigidity cutter holder to ensure the quality of the machine stably.
12.Protective cover is made of 3mm high-duty cold-roll steel sheets, operators’ safety is insured.
13. Equips Joonna special powerful motor
14.Precision mould make the bearing capacity up to 500kg.
15.Strictly test-run before delivery, effectively ensured quality of our cutting machine.
Rebar cutting machine will be packed by wooden case with Hob fixed to protect machine without rain and moist.
Technical parameters:
Model | HS40 | HS45 | HS50 | HS55 |
Plain Bar | Φ6-Φ40 | Φ6-Φ45 | Φ6-Φ50 | Φ6-Φ50 |
II Class Reinforced Rebar | Φ6-Φ32 | Φ6-Φ32 | Φ6-Φ40 | Φ6-Φ40 |
Size of flat steel | <70*15 | <70*15 | <80*18 | <80*18 |
Size of square steel | <32*32 | <32*32 | <40*40 | <40*40 |
Size of angle steel | <50*50 | <50*50 | <63*63 | <63*63 |
Control style | With Clutch | With Clutch | With Clutch | With Clutch |
Frequency of cutting(times/min) | 32 | 32 | 28 | 28 |
Motor power(kw) | 3 | 3 | 4 | 4 |
Voltage & frequency(v/Hz) | 380/50 | 380/50 | 380/50 | 380/50 |
Dimension(mm) | 1190*450*680 | 1190*450*680 | 1500*500*950 | 1500*500*950 |
Net Weight(kg) | 430 | 430 | 640 | 640 |
