Home > Industrial Equipment & Components > Environment Protection Device > Waste Treatment Equipment > Cardboard Baling Press Machine PET Bottles Baling Machine

Cardboard Baling Press Machine PET Bottles Baling Machine

Name: Cardboard Baling Press Machine PET Bottles Baling Machine
Brand: Chengyue
SKU: 140993876
Availability: InStock

Cardboard Baling Press Machine PET Bottles Baling Machine thumbnail-1

Cardboard Baling Press Machine PET Bottles Baling Machine photo-1

US$ 2,000 - 2,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Chengyue

Type:

Other, recycling

Contact Supplier Request Quote Chat Now

Guangzhou Panyang Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Chengyue

Type Other, recycling

Model Number 150T

Welcome to Chengyue Machinery!

We could provide you various machine: dryer, industrial machine, washer extractor, automatic baler/metal baler/vertical baler/Tub-type baler, single shaft shrdder/double shaft shredder, plastic crusher, rubber cutter, foam dissolution machine, dewatering machine, horizontal centrifugal dryer, Heating oven, plastic paper separator, lifting machine, Gummed paper washer, washing line.

Product Description

Product

Semi-Automatic Baler uses hydraulic loop system and could choose manual or PLC automatic controller operation. It’s suitable for baling the incompact materials , especially plastic bottles and waste paper to recycle.

Main technical parameters:

1. Input & output

Raw material: waste paper, carton, PET bottle

Completed product: waste paper bale, carton bale, PET bottle bale

Output capacity: 3-4bale/hr.

2. Energy consumption:

Electricity consumption:

Main power:37kw

Conveyor power:7.5kw

Cooling system:1.5kw

Qty. of labors: 1-2 persons

3. Basic Infrastructure

3.1 Electricity supply: 380V/50H,200V/50HZ,440V/60Hz,220V/60HZ(option)

3.2 one part of the conveyor(3.5meter long) need to put in the group(about 1.2meter deep)

3.3 Necessary lifting plants for loading and unloading machines during install nation and testing

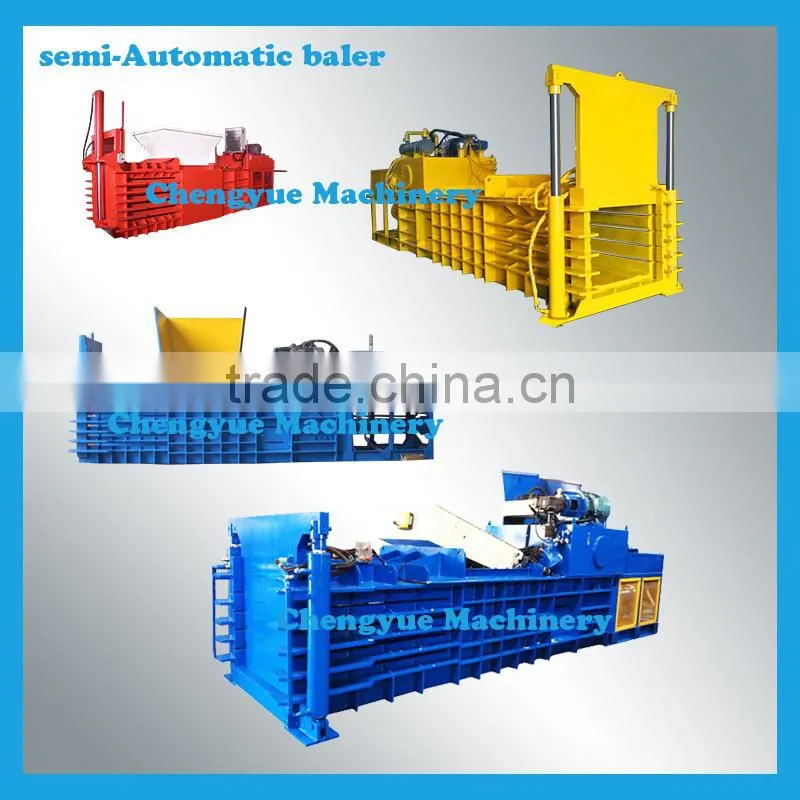

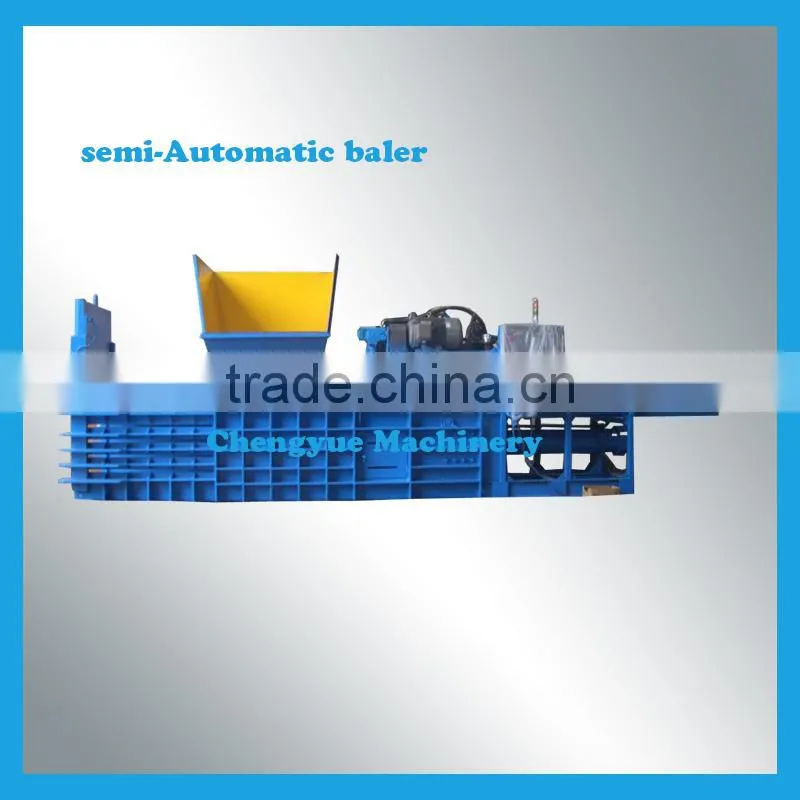

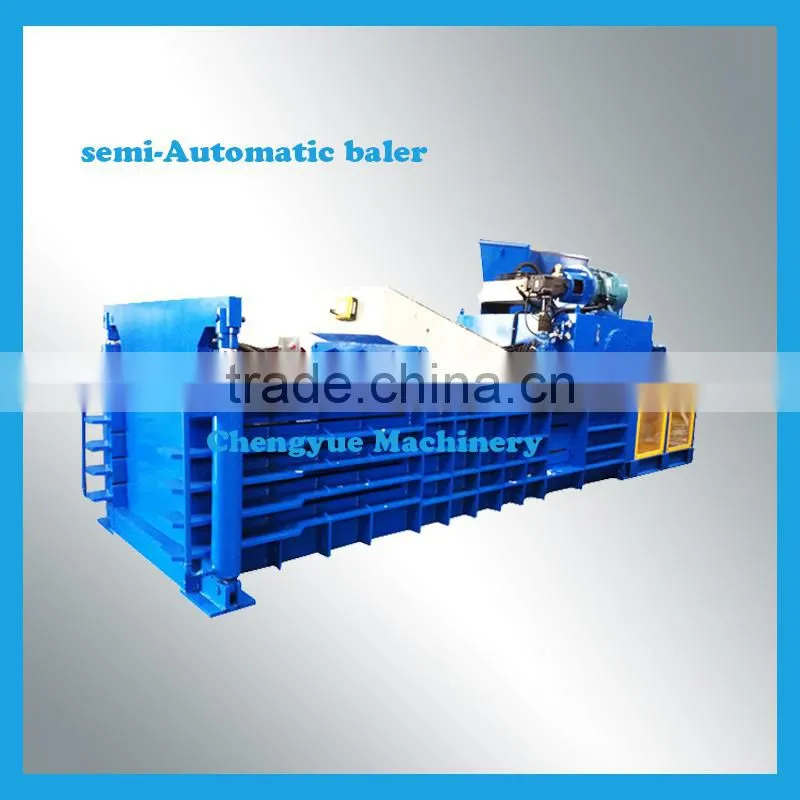

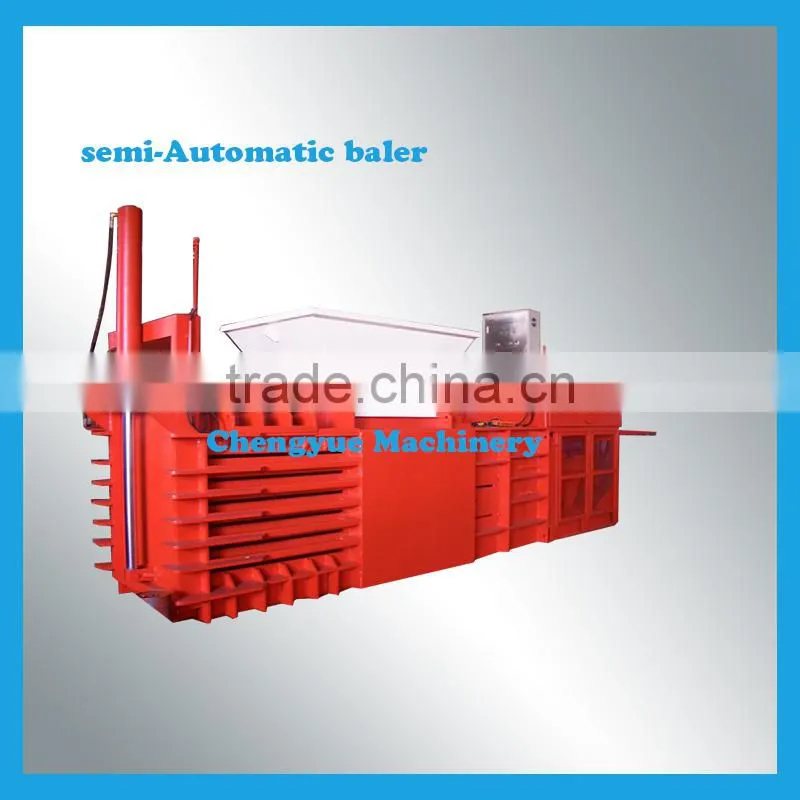

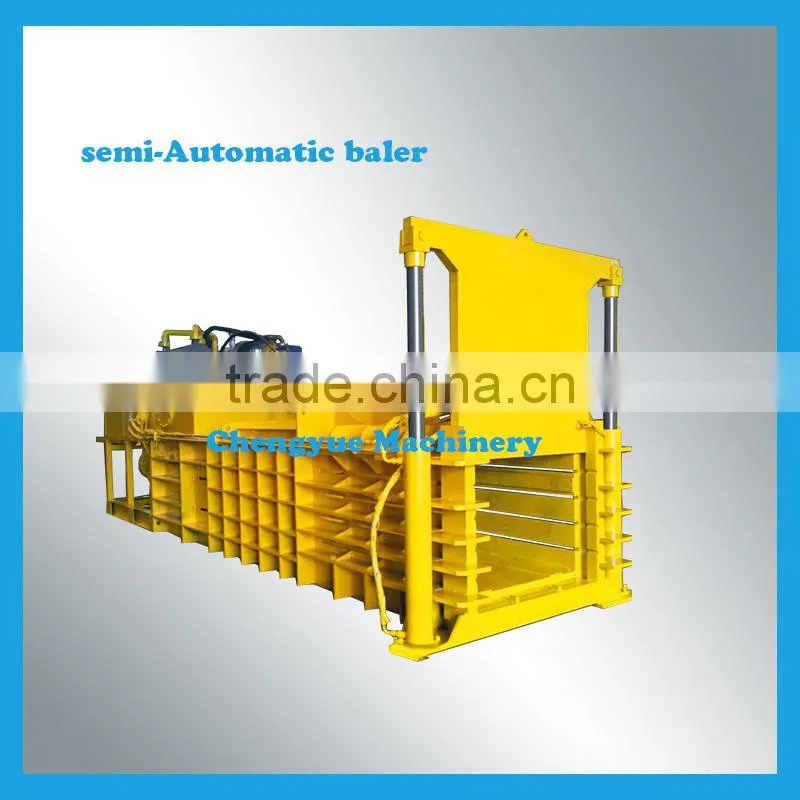

Configuration for the Semi-Automatic Baler

Model	BYB-150T
Baler size	(700-1500)1100830mm
work pressure	150Ton
bale weight	about 450kg-500kg
main power	37kw
conveyor power	7.5kw
overall dimension	720030202000mm
total weight	14000kg+5000kg(conveyor)
electric panel	Japanese appliance
conveyor	compose by iron plate
size	3.5meter in the ground
oil tank capacity	1530kg(68# hydraulic oil)
cooling system	air cooling

Remark: all the parameters above are only for your reference.

Features:

The hydraulic loop system is made of imported hydraulic accessories to ensure the machine work more steady.
The unique design of the distributed scissors can promote the cutting efficiency and save energy.
This machine uses the American brand Accent wire tire system, which the rapid and simple baling structure makes sure low trouble and is convenient for clean and maintenance.
The length od bale is optional.
The PLC control system and LCD display make it easy to operation and safety

Guarantee and after-sales services:

One year guarantee period. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide them at cost price.

Payment:

30% of total amount should be paid in advance, and the balance before delivery.

Our products

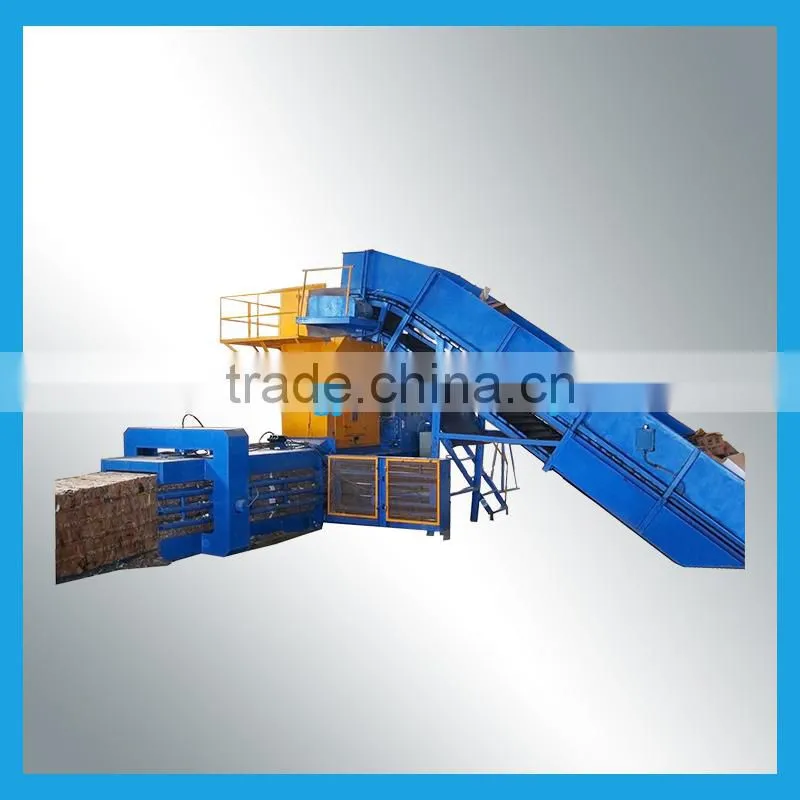

Automatic baler machine pls chick on the pic. can get the data

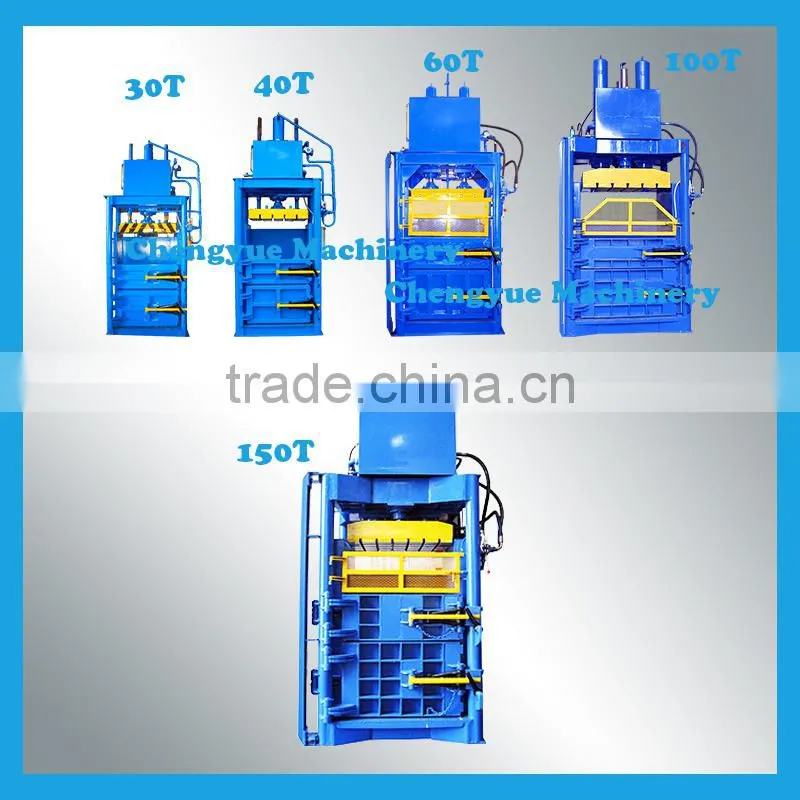

Vertical baler machine pls chick on the pic. can get the data

Packaging & Shipping

When we Loading

Company Information

Why choose Chengyue?

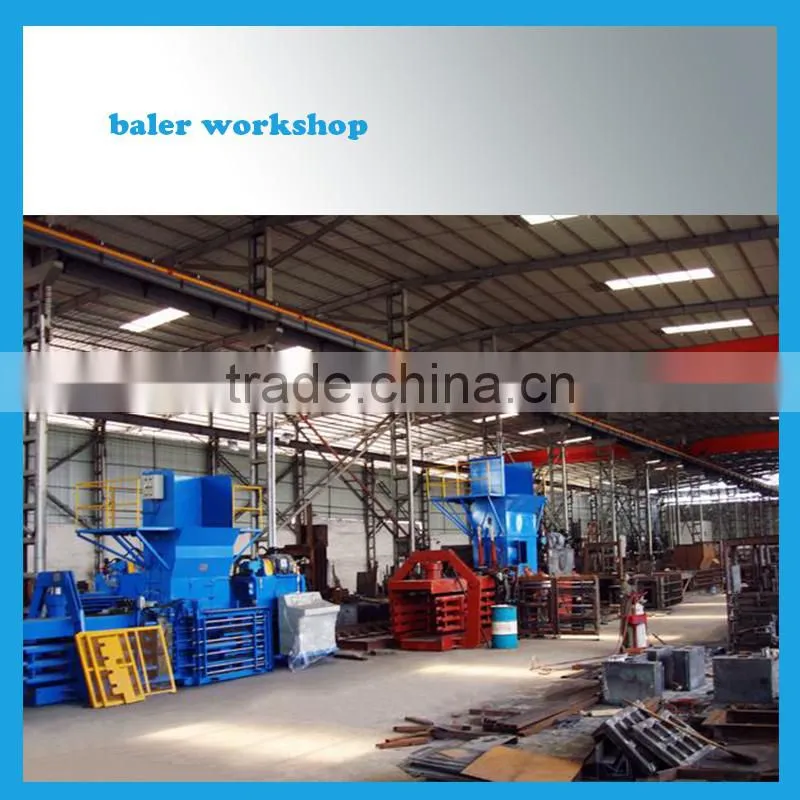

Guangzhou Panyu Shawan Chengyue Machinery Factory is the leading manufacturer of recycling machines since 1995 with the advanced technology and excellent equipments. We have developed many kinds of recycling machines, including powerful press baling machine, crusher, plastic extractor, dewatering machine, dissolution foam machine and so on. These products are not only with the great appearance and perfect system functions, but also easy to operation and low power consumption. Due to the persistent effort of our teams and the support of our customers, our factory will strengthen steadily. In the meantime, we have won a great reputation from our customers depend on our firm determination, best quality and excellent after-service. And our products are very popular not only in China, but also in Japan, Australia, Mexico, America, Canada, Indonesia, Kuwait and so on. Believe Chengyue, we will progress and make a brighter future together.
