Why choose Chengyue?
Guangzhou Panyu Shawan Chengyue Machinery Factory is the leading manufacturer of recycling machines since 1995 with the advanced technology and excellent equipments. We have developed many kinds of recycling machines, including powerful press baling machine, crusher, plastic extractor, dewatering machine, dissolution foam machine and so on. These products are not only with the great appearance and perfect system functions, but also easy to operation and low power consumption. Due to the persistent effort of our teams and the support of our customers, our factory will strengthen steadily. In the meantime, we have won a great reputation from our customers depend on our firm determination, best quality and excellent after-service. And our products are very popular not only in China, but also in Japan, Australia, Mexico, America, Canada, Indonesia, Kuwait and so on. Believe Chengyue, we will progress and make a brighter future together.

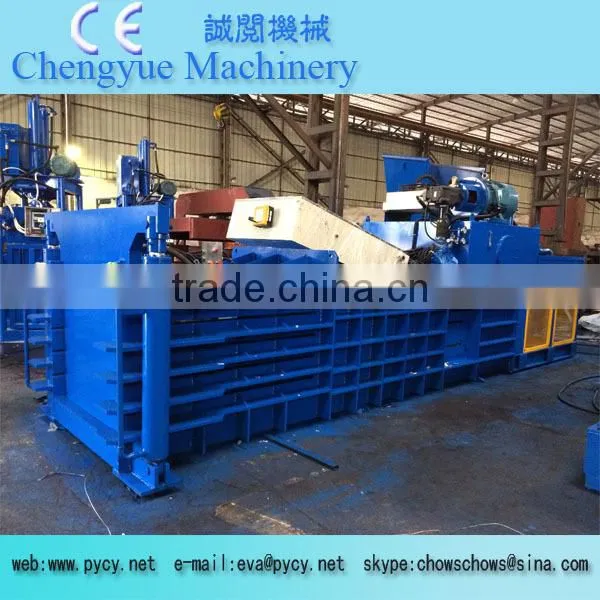

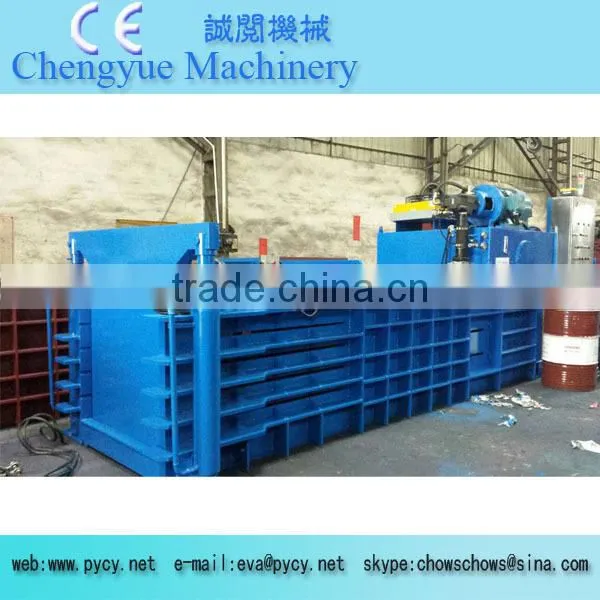

The Baler Machine of semi automatic is applied in baling the incompact materials, like waste paper, plastic bottles, scrap iron and garbage to minimize the volume and be convenient in packaging and transportation.
Main Technical Parameters:
Model |
Bale Volume |
Max work Pressure |
Motor Power |
Conveyor Power |
Capacity |
Overall Dimension |
Space for installation of Conveyor |
Total Weight |
L*W*H(mm) |
Kn |
Kw |
Kw |
Pack/h |
L*W*H(mm) |
L*W*H(mm) |
Kg |
|
ZYB-150T |
1300*1000*1100 |
1500 |
(37/45)*2 |
7.5-11 |
12-16 |
8680*4050*4500 |
12400*13800*4600 |
32000 |
1300*1100*914 |
1500 |
(37/45)*2 |
7.5-11 |
12-16 |
8680*4150*4314 |
12400*13800*4500 |
31500 |
|
1300*1100*1100 |
1500 |
(37/45)*2 |
7.5-11 |
12-16 |
8680*4150*4500 |
12400*13800*4600 |
33000 |
|
ZYB-120T |
1200*914*914 |
1200 |
37/45 |
7.5 |
8-12 |
7350*3680*4200 |
11400*12800*4200 |
24000 |
ZYB-100T |
1000*660*814 |
1000 |
30 |
5.5-7.5 |
8-12 |
6860*3230*3900 |
10700*12000*3900 |
20000 |
Remark: all the parameters above are only for your reference.
1. Input & output
Raw material: waste paper, carton, plastic bottles, scrap iron
Completed product: waste paper bale, carton bale and so on
2. Energy consumption
Electricity consumption:
Cooling tower system:1.5kw
Qty. of labors: 1-2 persons
3. Basic Infrastructure
3.1 Electricity supply:380V/50Hz,200V/50HZ,220V/60HZ,440V/60HZ(option)
3.2 Workshop size: At least 16m (length)×15m(width)×4.5m(height) laid in a straight line
3.3 One part of the conveyor(4meter long) need to put in the group(about 1meter deep)
3.4 Necessary lifting plants for loading and unloading machines during install nation and testing
Characteristic Features:
- The hydraulic loop system is made of imported hydraulic accessories to ensure the machine work more steady.
- The unique design of the distributed scissors can promote the cutting efficiency and save energy.
- This machine uses the American brand Accent wire tire system, which the rapid and simple baling structure makes sure low trouble and is convenient for clean and maintenance.
- The length od bale is optional.
Depending on your needs to produce machines
Guarantee and after-sales services:
One year guarantee period. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide them at cost price.
Packaging:
l Outside package:Sandard export wooden cases
l Inner package:Stretch film
Shiping:
l We have strong cooperation with DHL,TNT.UPS,FEDEX,EMS.China Air Post
l You can also choose your own shipping forwarder
F
Payment:
30% of total amount should be paid in advance, and the balance before delivery.
