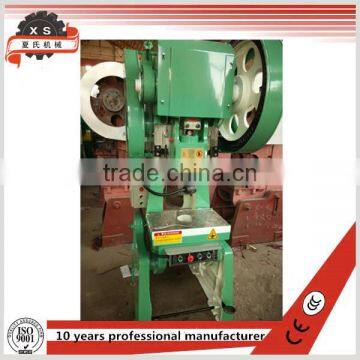

J23-16T C-frame Power Press , Mechanical Metal Stamping Machine Flywheel Punching Press Machine
- 200 Set / Sets per Month
- Punching Machine
- T/T L/C D/P D/A Credit Card
You May Like
-
J23-80 ton C frame Power Press machine/punching machine/electric press for sale 80T
-
JH21-160 Fixed stroke C Frame Automatic power press machine
-
JF21-25T,pneumatic presses, power press, punching machine 25t
-
pneumatic presses, presses, punching power press machine JF21-25T
-
Dependable Performance Mechanical Press Machine JB21-160T for sale , hydraulic puncher,punching machine,puncher
-
JL21 series open type air conditioner fin high speed automatic production line
Product Details
| Place of Origin | Guangxi, China | Brand Name | Xiashi | |
| Model Number | J23-16 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
J23-16T C-frame Power Press , Mechanical Metal Stamping Machine Flywheel Punching Press Machine
Features
1.punching machine,punch press machine
2.Casting machine fuselage with stable performances
3. easy for adjustment
Specification
Parameters of punching machine | Unit | J23-6.3 | J23-16 | J23-40 | J23-63 | J23-80 | J23-100 | J23-125 | |
Nominal pressure on sliding block | KN | 63 | 160 | 400 | 630 | 800 | 1000 | 1250 | |
Slide stroke | mm | 35 | 55 | 90 | 110 | 120 | 140 | 150 | |
Stroke frequency | Fast speed | times | 170 | 120 |
|
|
|
|
|
| Low speed | min |
|
| 45 | 40 | 38 | 38 | 35 |
Die height | mm | 150 | 220 | 320 | 390 | 440 | 480 | 500 | |
Die Height Adjustment | mm | 30 | 45 | 65 | 80 | 90 | 100 | 100 | |
Distance between slider center and machine | mm | 110 | 160 | 250 | 310 | 350 | 380 | 390 | |
Vertical columns distance | mm | 150 | 220 | 340 | 420 | 450 | 560 | 550 | |
Slider bottom size | L*R | mm | 140 | 200 | 300 | 400 | 430 | 540 | 540 |
| F*B | mm | 120 | 180 | 220 | 360 | 360 | 480 | 480 |
Size of handle hole | Diameter | mm | 30 | 40 | 50 | 50 | 60 | 60 | 60 |
| Depth | mm | 55 | 60 | 70 | 70 | 75 | 75 | 75 |
Size of worktable | L*R | mm | 310 | 450 | 700 | 860 | 950 | 1080 | 1100 |
| F*B | mm | 200 | 300 | 460 | 570 | 650 | 710 | 720 |
Thickness of worktable | mm | 30 | 40 | 65 | 80 | 100 | 120 | 130 | |
Max. inclination angle |
| 45 | 35 | 30 | 20 | 20 | 15 | 13 | |
Worktable height | mm | 750 | 750 | 850 | 850 | 850 | 850 | 860 | |
Size | F*B | mm | 780 | 1150 | 1721 | 1958 | 2060 | 2254 | 2200 |
| L*R | mm | 620 | 847 | 1335 | 1500 | 1715 | 1790 | 1790 |
| High | mm | 1503 | 1910 | 2488 | 2868 | 3290 | 3625 | 3590 |
Anchor bolts distance | F*B | mm | 530 | 780 | 1060 | 1300 | 1360 | 1550 | 1710 |
| L*R | mm | 314 | 450 | 750 | 920 | 1010 | 1130 | 1110 |
Power of electric motor | KW | 0.75 | 1.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | |
Weight(Approximate) | KG | 420 | 1095 | 3600 | 5580 | 8020 | 10800 | 12035 | |

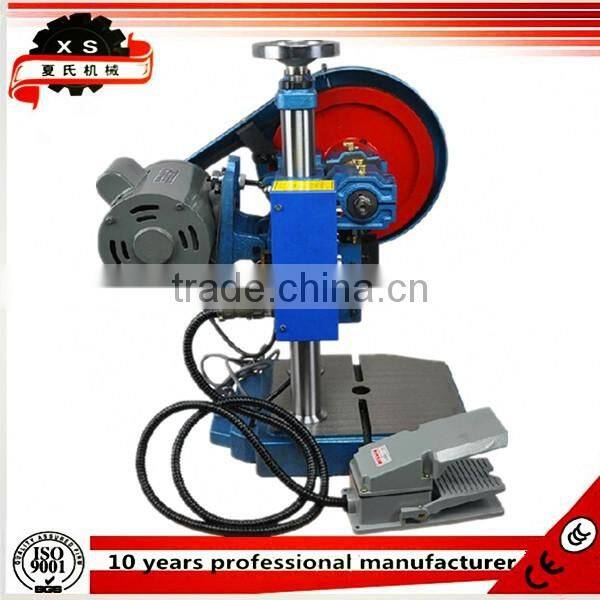

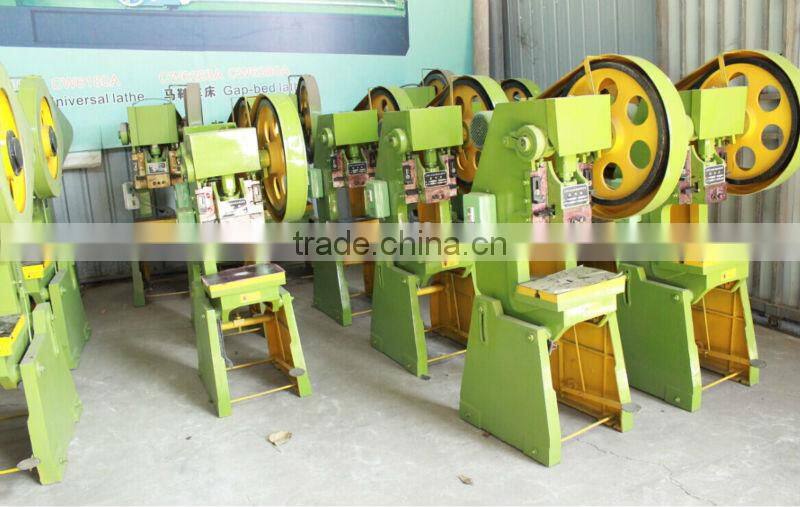

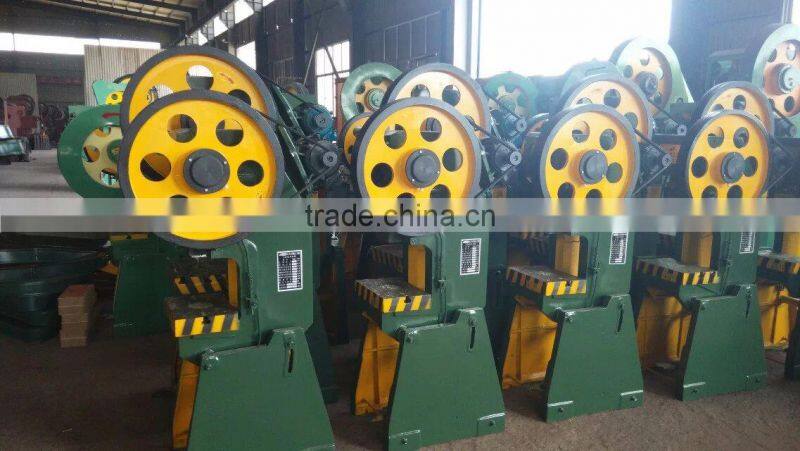

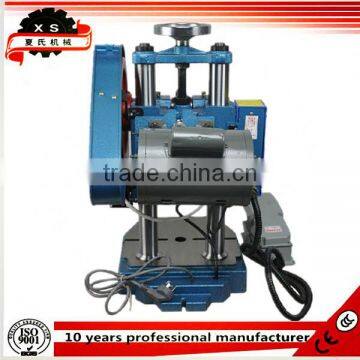

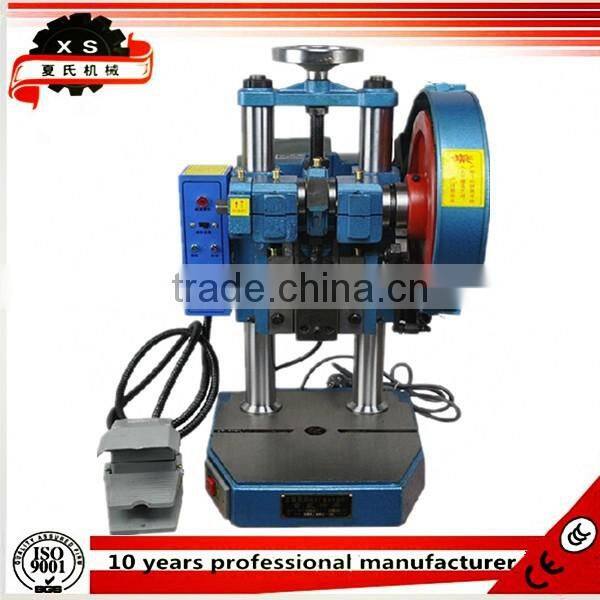

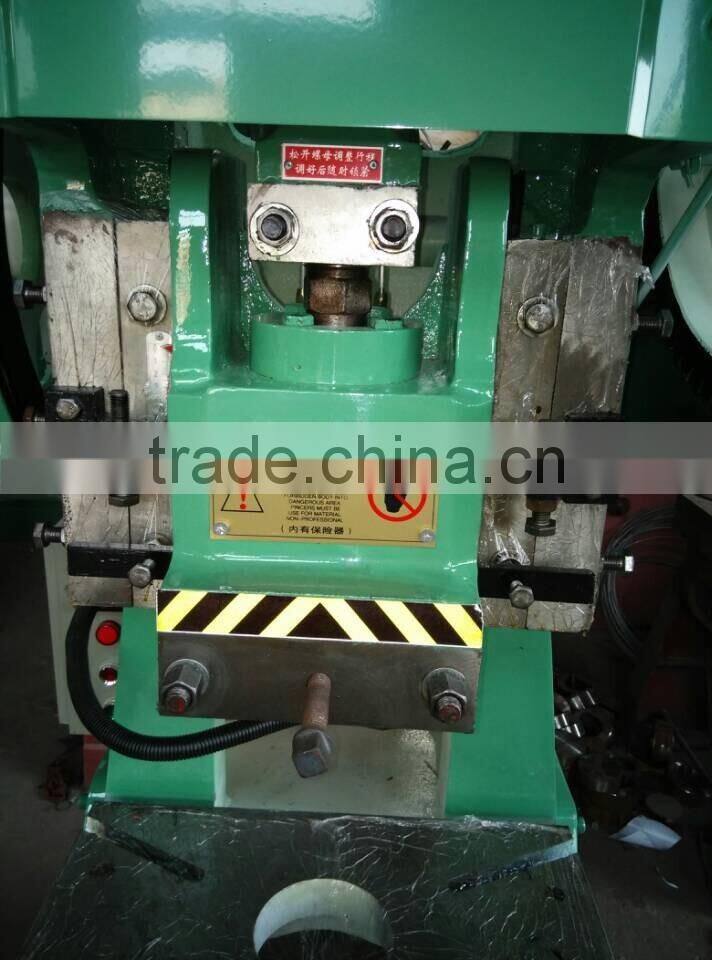

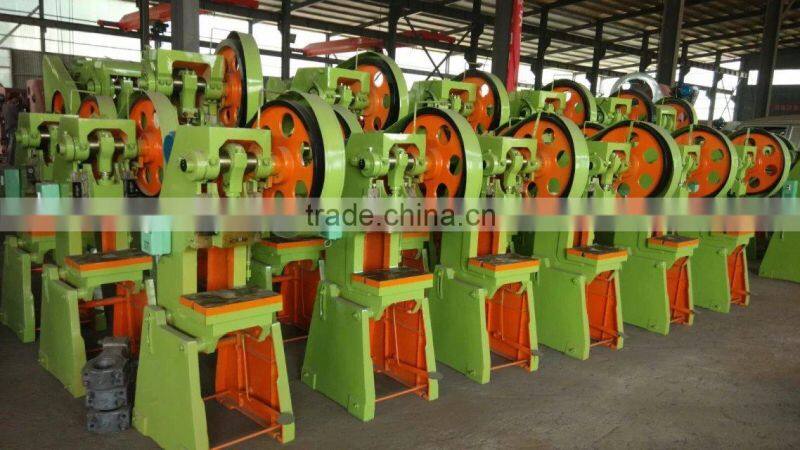

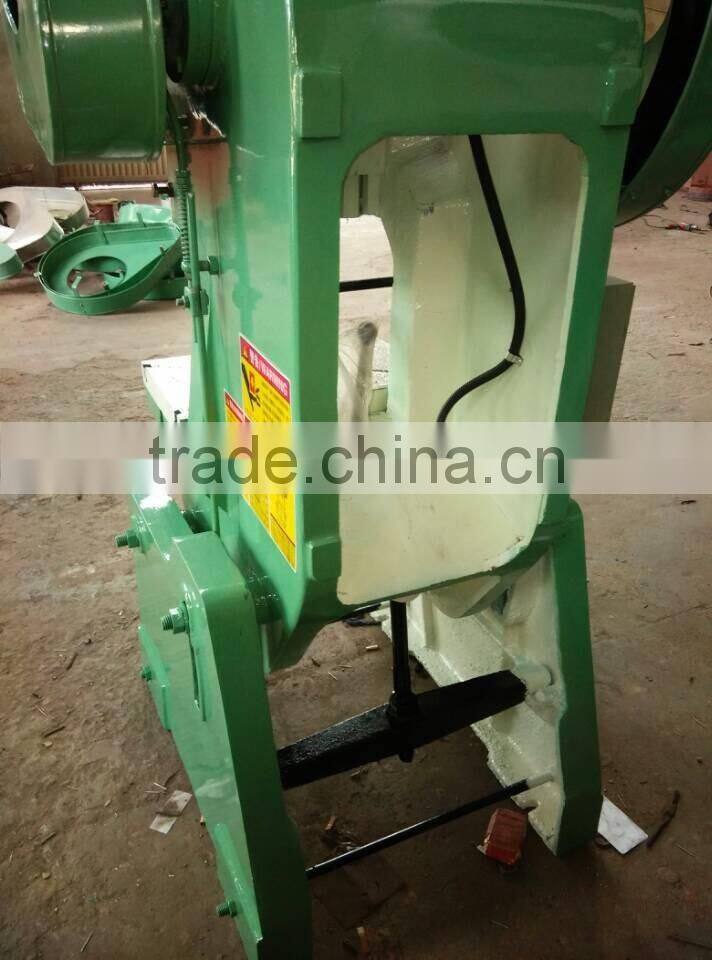

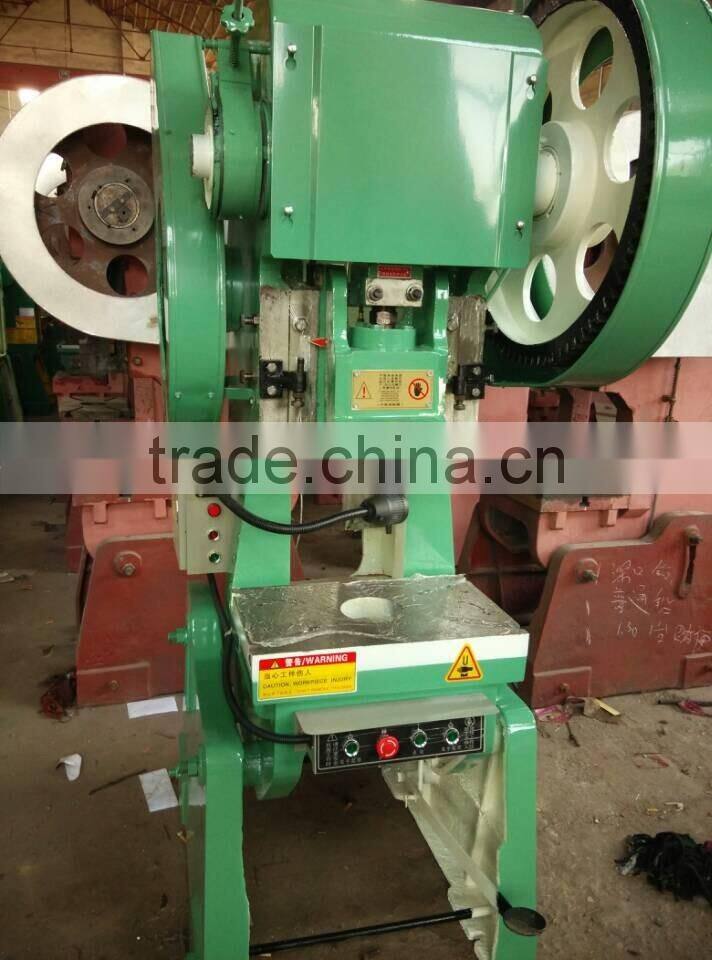

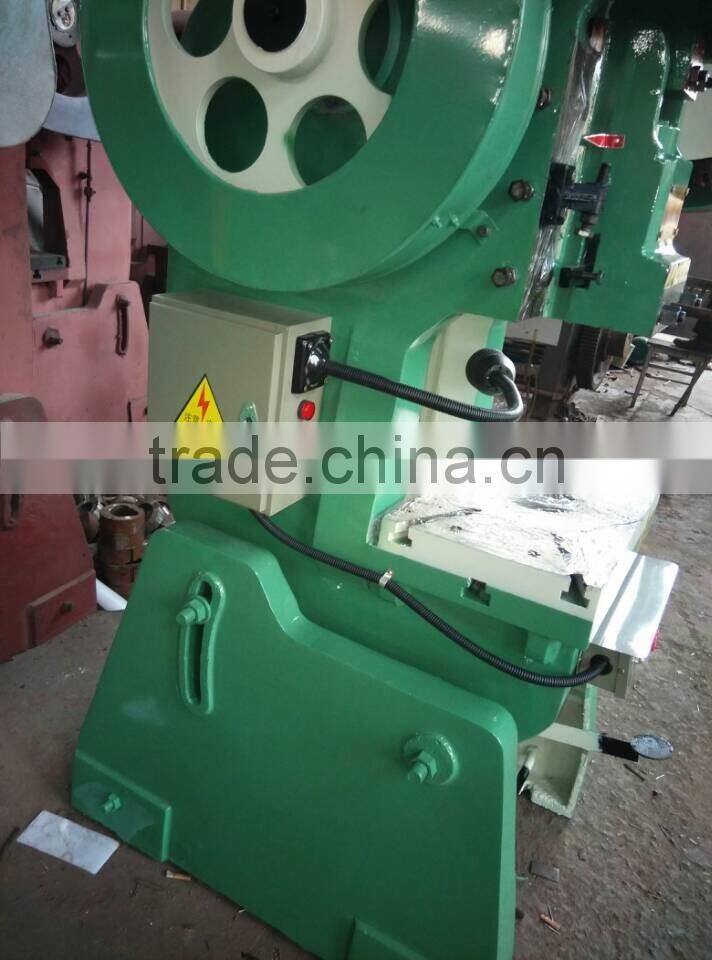

Pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
