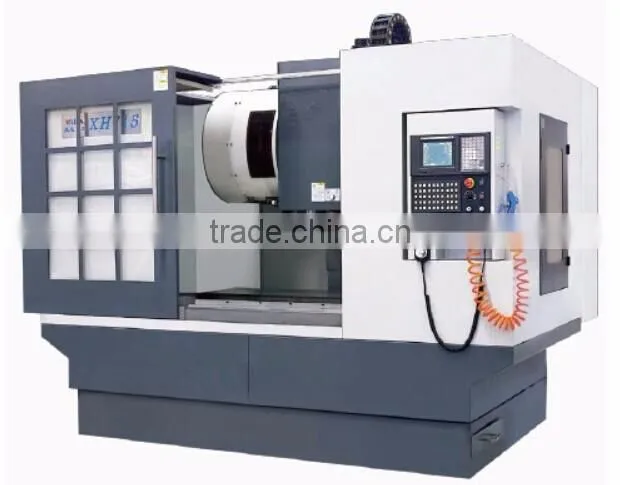

XH715 vertical machining center /CNC Machining Center
Feature
The machine tool uses the rice Hanna cast iron, the machine tool base uses the ultra wide rectangle four guide rail structure, the machine tool rigidity is high.
The X, Y, Z axes are widening plastic rectangular sliding rail, the quenching and precision lapping.
The Taiwan number of high speed and high precision spindle 8000rpm.
The famous Taiwan bamboo hat type knife library, the capacity of 20.
The machine adopts Japanese NSK bearings.
The cooling system with large flow, high lift pump, which has sufficient cooling in high speed cutting.
Standard configuration
The FANUC 0I mate-MD CNC system
The 20 bamboo hat type knife library
The RS232 communication interface, separate electronic handwheel
Please blow spindle configuration options
The FANUC 0I MD, SIEMENS 828D, KND-2000M, 983M, the number of Huazhong 22M NC system
The 24 disc knife library
Fourth, five axis CNC.
The automatic chip removal system
Specifications |
Units |
XH715 |
XK715 |
Table travel (X,Y,Z) |
mm |
1000×510×510 |
1000×510×510 |
Table size |
mm |
1100×510 |
1100×510 |
Number/Width/Distance of T-slot |
mm |
5-18-100 |
5-18-100 |
Max. load of table |
kg |
800 |
800 |
Distance from spindle nose to table surface |
mm |
120-630 |
120-630 |
Distance from spindle axis to column guideway |
mm |
600 |
600 |
Taper of spindle |
|
BT40 |
BT40 |
Spindle speed range |
rpm |
60-6000 |
60-6000 |
Spindle motor power |
kW |
7.5/11 |
7.5 |
Rapid feed speed |
mm/min |
12000 |
12000 |
Cutting feed speed |
mm/min |
2.5-4000 |
2.5-4000 |
Positioning accuracy |
mm |
±0.015 |
±0.02 |
Repeat positioning accuracy |
mm |
±0.0075 |
±0.01 |
Tool magazine capability |
qty |
20 |
|
Max. weight of tool |
kg |
8 |
|
Max. dimension of tool |
mm |
130×250 |
|
Min. time of tool change |
sec |
7 |
|
Overall dimension |
mm |
2900x2200x2620 |
2900x2200x2620 |
Machine weight |
kg |
5370 |
5270 |
We will pack the machine with standard export wooden case ,ensure the transport safely
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
