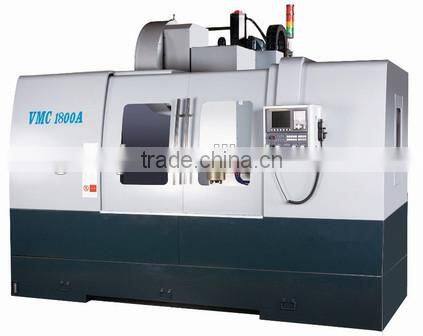

Help CenterCNC Hard Track Vertical 5-axis Machining Center VMC1800A
Related Products
-
High Speed CNC Vertical 5- Axis Machining Center VMC1650A for SaleUS$ 20,000 - 45,000MOQ: 1 Set -
Dependable Performance DX8080 Mini Cnc Milling Machine With Cheap PriceUS$ 2,000 - 2,500MOQ: 1 Set
-
CNC Vertical Machining Center With High Precision XH716US$ 1,000 - 20,000MOQ: 1 Set
-
Competitive Price With High Quality CNC Engraving Machine DX5050,cnc Milling MachineUS$ 2,000 - 2,500MOQ: 1 Set
-
Hot DX6060 Cnc Engraving and Milling Machine With High PerformanceUS$ 2,000 - 2,500MOQ: 1 Set
Feature
1.Powerful cutting, low speed high torque,the range of constant power is wide (FANUC AC
spindle motor). The main components with high stiffness, bed column saddle are thick bars,
closed-end frame structure. Gearless drives, low noise, small vibrationand thermal deformation.
2.High speed positioning, high speed feed, small vibration, low speed creeping, accuracy high
stability.
3.Can be equipped with the fourth axis.
4.Three-guide rails all adopt linear guides , lead screw adopt high-speed ball screw.
5.Three-ball screw, the main electrical components, pneumatic components, lubrication
components are imported.
Usage
1.it can complete milling, boring, drilling, reaming, tapping and other processes processing .
2.widely applicable to various types of mechanical parts and has a complex shape or mold
processing complex cavity.
Techinical parameter
Model | Unit | VMC1800A |
X-Axis travel | mm | 1800 |
Y-Axis travel | mm | 850 |
Z-Axis travel | mm | 710 |
Distance between spindle nose to work table surface | mm | 150-860 |
Distance from spindle center to column guide | mm | 440-1290 |
Table size | mm² | 800×1850 |
Max.loading capacity | kg | 3000 |
Width of T-slot | mm | 6×18H8 |
Max.speed of the spindle | rpm | 6000 |
Spindle taper | - | BT-50 |
X/Y/Z-axis rapid speed | m/min | 15/15/12 |
The maximum cutting feed rate | m/min | 5 |
automatic tool changer |
| Manipulator |
tool storage capacity |
| 24 |
T-T Tool-changing | sec | 2.9 |
Max.Length of tool | mm | 400 |
Max.O.D.of tool(the neighbouring without tools) | mm | Φ110/Φ200 |
Max. tool weight. | kg | 15 |
Spindle motor | kw | 15/18.5 |
X/Y/Z motor | kw | 7 |
Cooling pump motor | w | 0.75+1.5 |
Positioning accuracy | mm | X:0.028, Y/Z:0.02 |
Positioning accuracy | mm | X:0.015, Y/Z:0.012 |
Machine overall dimensions(L×W×H) | mm | 4500*3890*3390 |
Machine weight | kg | 17000 |
power requirements | kw | 50 |
Picture details
Services
- Professional advice and rich experience help to choose machine.
- Customized service: Technical team design and produce the customized machine.
- Maunal book, tool cabinet are provided with machine.
- If necessary, technicist will be in charge of machine installation in your country.
- After-sale service: 1 year warranty, technical support, lifelong maintenance
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
