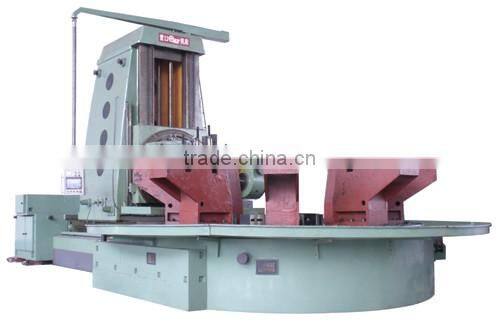

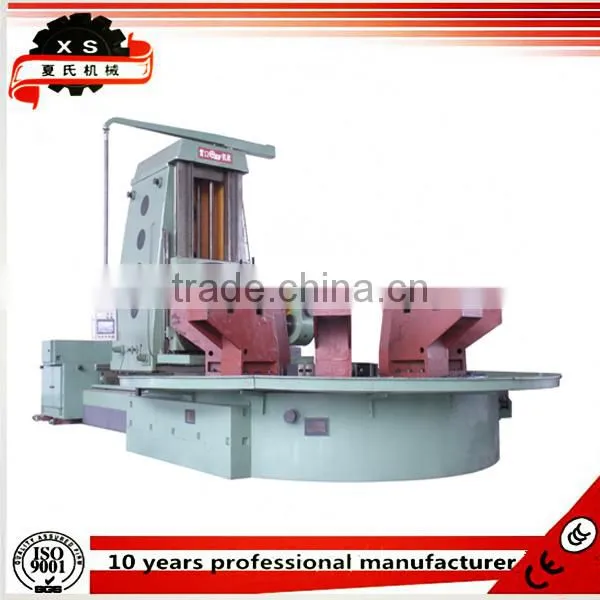

Gear Hobbing Machine for Large Work Pieces D800mm From China Gear Machine Manufacturer
- Shenzhen
- T/T Money Gram
You May Like
-
Mini CNC Gear Shapping Machine Small Gear Shaper Machie Style YK5115
-
TB-30NC Auto Feeding Thread Rolling Machine CNC Bolt Thread Rolling Machine
-
Best Quality CNC Threading Rolling Machine for Rebar XS-30NC
-
CNC Gear Machine Gear Shaping Machine Y5150K
-
Gear Shapping Machine Y5150K CNC Gear Shaper
-
600mm CNC Gear Machine Gear Hobbing Machine For Sale Y5150K
Product Details
| Condition | New | Application | Gear | |
| Production Capacity | 100% | Brand Name | XIASHI | |
| Model Number | Y31630K | Power(W) | 37KW | |
| Dimension(L*W*H) | 14100X9000X5200mm | Weight | 12000kg | |
| Certification | ISO 9001-2008, CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features
This series of machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.
This series of rolling cut machine common worm is the method of radial feed processing.
The machine is fitted with a power single indexing device by which gears of relativel y large modules can be pre-slotted with disk milling cutter, with the reverse finger cutter body can be processed without air knife slot miter gear.
The machine is good rigidity, high accuracy, easy in operation and maintain.
Item | Y31800k |
Max Work Piece Dia | 8000mm |
Max Module | 36mm |
Max Width of Teeth | 1500mm |
Max Hob Dia/Length | 500/550mm |
Dia of Work Table | 4500mm |
Spindle Speed | 6.5-43rpm |
Max Vertical Travel Tool | 1600mm |
Taper of Hob Arbor Fitting | Metric 80 |
Distance Between Hob Axis And Worktable | 800-2400mm |
Center Distance Between Hob And Work Table | 1200-4400mm |
Worktable Bore Diameter | 950mm |
Max Hob Swiveling Angle | ±45° |
Dia of Hob Arbors Dia | 50,60,80,100 |
Load Capacity | 100t |
Main Motor | 45kw/1500rpm |
Overall Dimensions LXWXHmm | 14100X9000X5200 |
Weight | 12000kg |
