Anchor Bolts Manufacturing Machine Thread Rolling Machine TB-20
US$ 100 - 1,000
/ Set
1 Set(Min. Order)
- Shenzhen
- T/T Money Gram
You May Like
-
High Efficiency Hydraulic Full Automatic Two Rollers Rolling Machine
-
Excellent Quality Two Rollers Thread Rolling Machine Price TB-30S
-
Professional Factory Small Gear Hobbing Machine Price Y3608
-
500mm Manual Gear Hobbing Machine Price for Sale Y3150K
-
400mm External Gear Shaping Machine for Sale YKG5140 Y5150K YKS5122
-
D220mm Dia CNC Auotmatic Gear Shaping Machine for Cylinder Gear, Helical Gear,special Annex YKG5122-3
Product Details
| Condition | New | Application | bars,solid pipe,solid tube | |
| Production Capacity | 100% | Place of Origin | Yunnan, China | |
| Brand Name | XIASHI | Model Number | TB-3TGT | |
| Voltage | 380V | Power(W) | 2205W | |
| Dimension(L*W*H) | 1330*1120*1050mm | Weight | 600KG | |
| Certification | ISO 9001-2008, CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

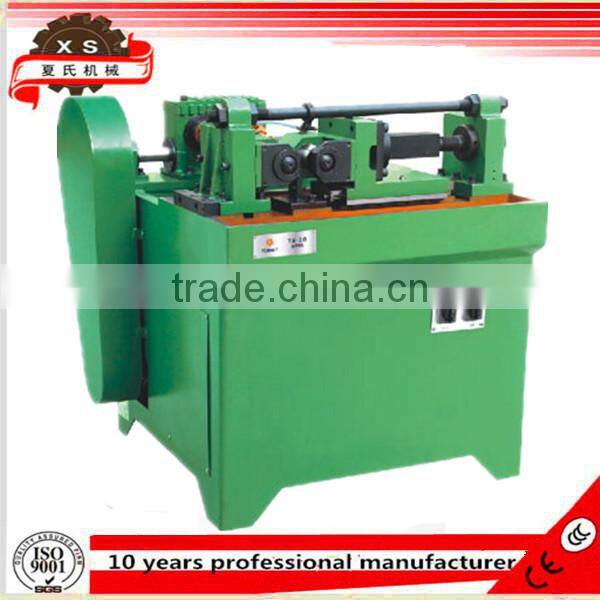

Anchor bolts manufacturing machine thread rolling machine TB-20
Advantages:
1.Eccentric-type driving, high rolling precision.
2.Drove by worm gear and rod, connected by imported cardan joint, the work performance is high.
3.Suitable for the screw with small pitch and long length.
4.It is easy to learn to operate.
Technical Parameter of Tobest TB-20
| Work piece diameter | φ4-φ16/mm | |||||||
| Range of pitch rolled | 0.4-2.0P | |||||||
| length of thread rolled | Fixed and rolling through for option | |||||||
| Spindle speed | 16/25/40/63rpm (variable speed) | |||||||
| Outside diameter of rolling die | φ100-φ118mm | |||||||
| Inside diameter of rolling die(keyway) | φ50.5mm | |||||||
| Thickness of rolling die | 50mm | |||||||
| Range of distance between the roller shaft | 100-135mm | |||||||
| Output(pcs/min) | 4-25(pcs/min) | |||||||
| Main power motor | 10HP | |||||||
| Hydraulic motor | 2HP | |||||||
| Max rolling pressure | 25T | |||||||
| Supply voltage | 380 | |||||||
| Weight(reference) | 600(KG) | |||||||
| shipping measurement(L*W*H) | 1100*1100*1300 | |||||||
| Dimension(L*W*H) | 1000*1000*1200 | |||||||
| Bearing brand | NSK,UBC | |||||||
| Certification | ISO 9001-2008, CE | |||||||
| Application | bars,solid pipe,solid tube | |||||||
| Brand Name | Tobest | |||||||
| Color | green(or according to your need) | |||||||
| Warranty | 12 months | |||||||

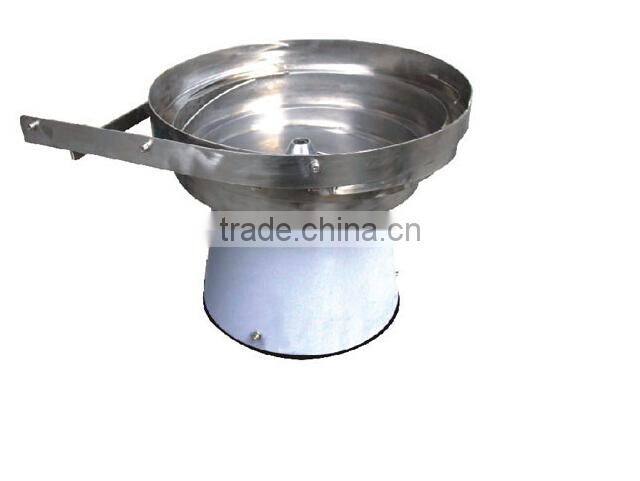

Products display:
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
